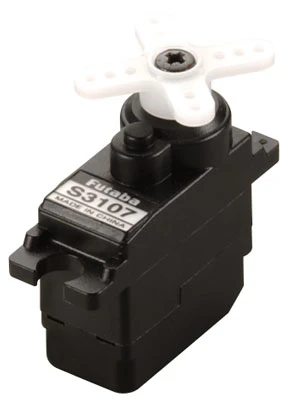

This is the S3107 Micro Servo from Futaba.
This servo is used for R/C Park Flyer airplanes.
This servo can produce high-current draw from your batteries. If using NiMH or
LiPo batteries, make sure they are capable of delivering sufficient amps.
FEATURES:
- Delivers excellent torque and speed for its small size, light weight 3-pole
motor - Can be used for elevators, ailerons and rudders
- One year warranty
- Nylon gears
INCLUDES:
One S3107 Micro Servo with Futaba J male connector and mounting hardware
SPECS:
- Speed: .12 sec/60?X @ 4.8V
- Torque: 17 oz-in (1.2 kg-cm) @ 4.8V
- Dimensions: 0.9 x 0.4 x 0.8″ (22 x 11 x 20mm)
- Weight: 0.32 ounce (9.0 grams)
- Connector: Male “J” type with approx. 5″ wire
- Output Shaft Diameter: 5mm
COMMENTS:
This servo cannot be used with gasoline engines or large/middle scale gliders
or other models that require torque. Use of 6.0V not recommended as this will
shorten servo life. For replacement servo horn use FUTM2005
