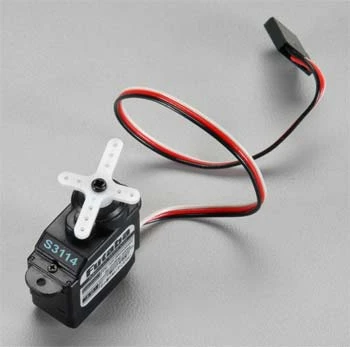

S3114 Futaba Micro High-Torque Servo

FEATURES:

• Ideal for electric planes and small electric helis
• Nylon gears
• One year warranty

INCLUDES:

• Futaba S3114 Micro High Torque Servo
• One .91″ x .64″ (23mmx16mm) 4 arm servo horn (comes pre-installed)
• One 1.33″ x 1.33″ (34mmx34mm) 4 arm servo horn

REQUIRES:

• Installing in aircraft and connecting to receiver
• Order DUBM6924 if mounting hardware is required

SPECS:

• 6V 4.8V
• Torque: 24 oz-in (1.7 kg/cm) 21 oz-in (1.5 kg/cm)
• Speed: 0.09 sec/60? 0.10 sec/60?
• Dimensions: 0.9 x 0.4 x 0.8″ (7/8 x 7/16 x 13/16) (22 x 11 x 20mm)
• Weight: .28oz (1/4oz) (7.8g)
• Lead Length: 6.5″ (165mm)
• Output Spline Diameter: 4mm

COMMENTS:

• Do not use S3114 servos with gas or high power engine models, large gliders,
  or other models that require high torque
• Using supply voltage higher than 6V or applying high load to servo will
  shorten the life.
• Alway use the servo horn specially designed for this servo. Do not use conventional
  servo horns.
• Excessive force or shock to the servo horn may damage the ultra mini precision
  gears inside the servo.
