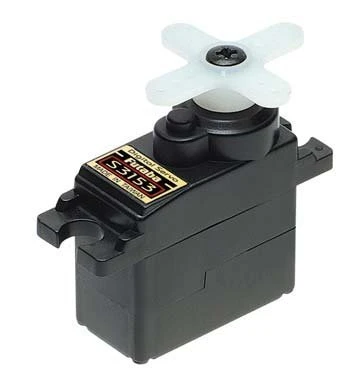

S3153 Futaba Digital Micro High-Speed Servo

This is the S3153 Digital High Speed Micro Mini Servo
Designed for use with Futaba Radio Control Systems.
It is the Digital High Speed version of the S3103 Servo.

This servo can
produce high-current draw from your batteries if using NiMH or LiPo batteries,
make sure they are capable of delivering sufficient amps.

FEATURES:
Small compact design for small electric motor airplanes Metal gears
One year warranty

INCLUDES:
One S3153 Digital High Speed Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings)

REQUIRES:
Installing in model, attaching linkage and plugging into receiver

SPECS:
Speed: 0.11 sec/60�X @ 4.8V
0.09 sec/60�X @ 6V
Torque: 19 oz-in (1.4kg/cm) @ 4.8V
24 oz-in (1.7kg/cm) @ 6V
Dimensions: .9″ x 0.4″ x 0.8″ (22 x 11 x 20mm)
Weight: .34oz (9.6g)
Output Shaft Diameter: 5mm

COMMENTS:
The S3153 servo cannot be used with gasoline engine airplanes and with large
gliders and other models that require a lot of torque.
Using with a large load at a higher voltage will shorten servo life (4.8V
recommended).
For a replacement servo horn order FUTM2038.
For the long horns use part number FUTM2005.
