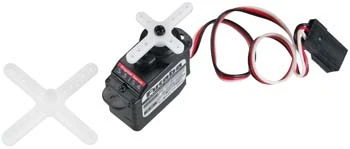

S3154 Futaba Digital Micro High-Torque Servo

This is the Futaba S3154 Digital High Torque, High Speed Micro Servo.
Ideal for electric planes and small electric helis!

FEATURES:

• Increased precision as it is Digital
• Light weight, perfect for Micro helis
• Nylon gears

INCLUDES:

• One S3154 Digital Micro Servo
• One .91″ x .64″ (23mm x 16mm) 4 arm servo horn (comes pre-installed)
• One 1.33″ x 1.33″ (34mm x 34mm) 4 arm servo horn

REQUIRES:

• Installing into your model
• Order DUBM6924 if mounting hardware is needed

SPECS:

• Torque: 21 oz-in (1.5kg/cm) @ 4.8V
• 24 oz-in (1.7kg/cm) @ 6V
• Speed: 0.10 sec/60? @ 4.8V
• .09 sec/60? @ 6V
• Dimensions: .09 x 0.4 x 0.8in (22 x 11 x 20mm)
• Weight: 0.28oz (7.9g)
• Lead Length: 6.5″ (170mm)
• Output Shaft Diameter: 4mm

COMMENTS:

• Do not use S3154 servos with gas or high power engine models, large gliders,
  or other models that require high torque
• Using supply voltage higher than 6V or applying high load to the servo will
  shorten the life.
• Alway use the servo horn specially designed for this servo. Do not use conventional
  servo horns.
• Excessive force or shock to the servo horn may damage the ultra mini precision
  gears inside the servo.
