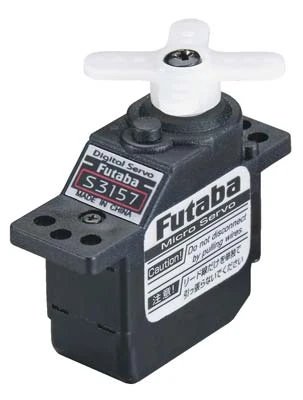

S3157 Futaba Servo Digital Micro High-Speed/Torque

This is the Futaba S3157 Digital High Speed/High Torque Micro Servo with Universal
Connector.

FEATURES: Ideal for small electric planes and helicopters

INCLUDES:

• Futaba S3157 Digital High Speed/High Torque Micro Servo with universal connector
• .71″ x .79″ (18mm x 20mm) 4 arm servo horn (pre-installed)
• 0.79″ x 1.6″ (20mm x 40mm) 4 arm servo horn
• 0.79″ (20mm) diameter round horn

REQUIRES:

• Installing in aircraft, connecting linkage and connecting to receiver
• Order DUBM6924 if mounting hardware is needed

SPECS:

• Torque: 21 oz-in (1.5 kg-cm) @ 4.8V
• 24 oz-in (1.7 kg-cm) @ 6.0V
• Speed: .10 sec/60? @ 4.8V
• 0.09 sec/60? @ 6.0V
• Size: 0.9 x 0.4 x 0.9″ (22 x 11 x 23mm)
• Weight: .29 oz (8.3g)

COMMENTS:

• Also available with micro plug, FUTM0705.
• Not for use with gasoline powered models, large models or other models that
  require high torque.
• Using voltage higher than 6.0V or applying high load to the servo will shorten
  its life.
• Always use the servo horn specially designed for this servo. Do not use
  conventional servo horns.
• Excessive force or shock to the servo horn may damage the ultra mini precision
  gears inside the servo.
