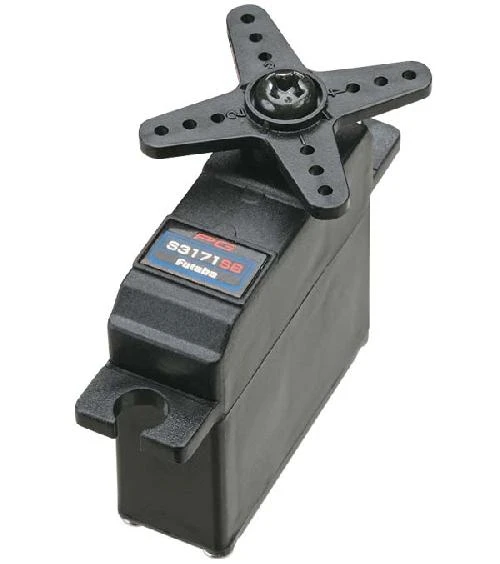

S3171SB Futaba – Digital Slim S.Bus Programmable Servo

• Compatible with the Futaba S.Bus System
• Servo can be easily programmed with the SBC-1 Channel Setting Tool,
• S.Bus receiver or PCLink software
• Equipped with dual ball bearings
• Also compatible with Futaba receivers and transmitters manufactured after
  1982

INCLUDES:Futaba S3171SB Serial Bus Slim Digital Servo, 1″ (26mm) 4-point
horn, 1.4″ (35mm) round horn, 1.5″ (39mm) 4-point horn, 1.8″
(45mm) double arm horn, two each grommets, eyelets and screws, instruction sheet

REQUIRES: Programming, installing in model and connecting linkage

Specs and Features

• Dimensions: 1-3/16 x 7/16 x 1-1/8″ (30 x 11 x 29mm)
• Torque: 4.8V 51 oz-in (4 kg-cm)
• Speed: 4.8V 0.24 sec/60 Degree
• Weight: 0.8oz (20g)
