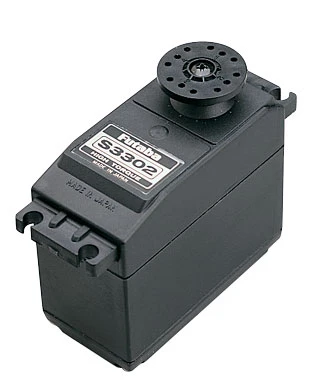

S3302 Futaba Servo 1/4 Scale J FM

This is the same as the S134, but with a Metal Final Gear and Surface Mount
Technology. This Servo has a One-Year Warranty through Futaba.

This servo can produce high-current draw from your batteries.
If using NiMH or Li-Po batteries, make sure they are capable
of delivering sufficient Amps.

FEATURES: Designed for 1/4 Scale Radio Controlled Models
3-pole motor
Metal Final Gear (other 3 gears are nylon)
Two Ball Bearings
Waterproof/dustproof case and shock/vibration-resistant potentiometer

INCLUDES: One S3302 Servo 1/4 scale w/J connector.

SPECS: Length: 2.4″ (61mm)
Width: 1.2″ (30mm)
Height: 2.0″ (51mm)
Weight: 3.6 oz (103g)
Torque: 89 oz/in @ 4.8V – 162 oz/in @ 6V
6.4 kg/cm @4.8V – 11.7 kg/cm @ 6V
Transit Time: .24 sec/60 deg @ 4.8V – .19 sec/60 deg @ 6V
