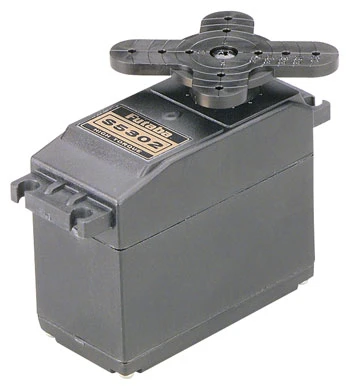

S5302 Futaba Servo High-Speed 1/4 Scale

This is the S5302 High Speed 1/4 Scale Servo from Futaba.
This servo is used for R/C airplanes, sailplanes, gas cars and power boats.

This servo can produce high-current draw from your batteries.

If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient
amps.

FEATURES:

• Dual ball bearing
• Metal gear
• 5-pole motor
• High torque
• Dust and water resistant

INCLUDES:

• One S5302 High Speed 1/4 Scale Servo with Futaba J male connector
• Four brass eyelets
• Four large Black one-piece rectangular rubber grommets
• Four 2 x 11mm servo mounting screws
• Three servo horns (1 lg. round, 1 lg.”X” and 1 sm. 6-point)

SPECS:

• Speed: .19 sec/60? @ 4.8V – .15 sec/60? @ 6V
• Torque: 189 oz-in @ 4.8V – 236 oz-in @ 6V
• 13.6 kg-cm @ 4.8V – 17.0 kg-cm @ 6V
• Length: 2.3″ (59mm)
• Width: 1.2″ (29mm)
• Height: 2.0″ (50mm)
• Weight: 4.4 ounce (125 grams)
• Connector: Male “J” type with approx. 5″ wire
