S9002 Futaba Servo Mini Coreless

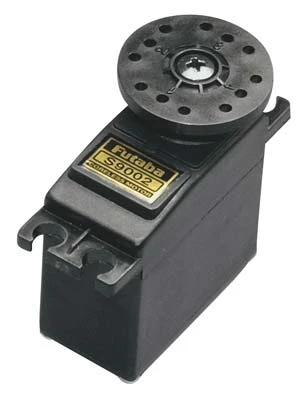

This is the Futaba S9002 Mini Coreless Servo.

FEATURES:

• Ideal for electric and mini cars, small electric airplanes and small electric
  helicopters
• Compatible with the Futaba GY401 Gyro (FUTM0807)
• Dual ball bearings insure smooth operation

INCLUDES: Futaba S9002 Mini Coreless Servo with 0.79″ (20mm) diameter
round horn, 1.4″ (35mm) diameter round horn, 1.2″ (32mm) diameter
6 point horn, 1.5″ (38.5mm) diameter 4 point horn and mounting hardware

REQUIRES: Installing in model, connecting linkage and connecting to receiver

SPECS:

• Torque: 34oz-in (2.5kg/cm) @ 4.8V
• 43oz-in (3.1kg/cm) @ 6V
• Speed: 0.18 sec/60? @ 4.8V
• 0.14 sec/60? @ 6V
• Size: 1.2 x 0.6 x 1.2″ (1-1/4 x 5/8 x 1-1/4″) (31 x 16 x 31mm)
• Weight 1.1oz (1-1/8oz) (31g)

COMMENTS: A note on Coreless motors: Conventional servo motors have a steel
core armature wrapped with wire that spins inside the magnets. In a Coreless
design, the armature uses a thin wire mesh that forms a cup that spins around
the outside of the magnet eliminating the heavy steel core. This design results
in smoother operation and faster response time.
