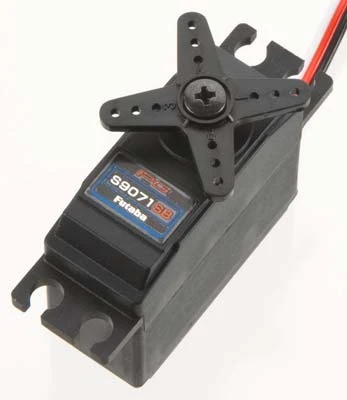

S9071SB Futaba – Digital Mini S.Bus Programmable Servo

Compatible with the Futaba S.Bus System Servo can be easily programmed with the
SBC-1 Channel Setting Tool, S.Bus receiver or PCLink software .Equipped with dual
ball bearings
Also compatible with Futaba receivers and transmitters manufactured after 1982.

INCLUDES: Futaba S9071SB Serial Bus Digital Servo, 1″ (26mm) 4-point horn,1.5″
(39mm) 4-point horn, 1.2″ (31.5mm) 6-point horn, 4 each rubber grommets,
eyelets and screws, instruction sheet

REQUIRES: Programming, installing in model and connecting linkage

Specs and Features

• Dimensions: 1-7/16 x 9/16 x 1-1/8″ (36 x 15 x 29mm)
• Torque: 4.8V 53 oz-in (4 kg-cm),6.0V 64 oz-in (5 kg-cm)
• Speed: 4.8V 0.15 sec/60 Degree , 6.0V 0.11 sec/60 Degree
• Weight: 0.9oz (25g)
