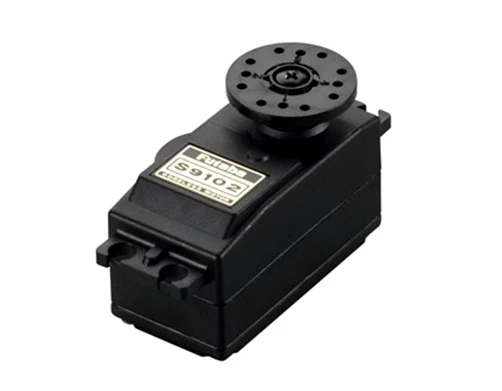

S9102 Futaba Servo Aileron

This is a Futaba S9102 Aileron Servo designed for In-Wing applications. It can
produce high-current draw from your batteries if using NiMH or LiPo batteries,
make sure they are capable of delivering sufficient amps.

FEATURES:
Two Ball Bearings
Coreless Motor
Nylon Gears
Thin Profile
Dust and Water Resistant
One year warranty

INCLUDES:
One S9102 Aileron Servo w/J Connector

SPECS:
Length: 1.8″ (40mm)
Width: 0.9″ (20mm)
Height: 1.4″ (36mm)
Weight: 1.7oz (48g)
Torque: 40 oz-in (2.9kg/cm) @ 4.8V
50 oz-in (3.6kg/cm) @ 6V
Transit Speed: .16 sec/60�X @ 4.8V, .13 sec/60�X @ 6V

COMMENTS:
For Gromments order, FUTM2346
For Eyelets order, FUTM2347
For Mounting Screws, order FUTM2250
