S9153 Futaba Digital Aileron/Elev High Speed/Torque BB

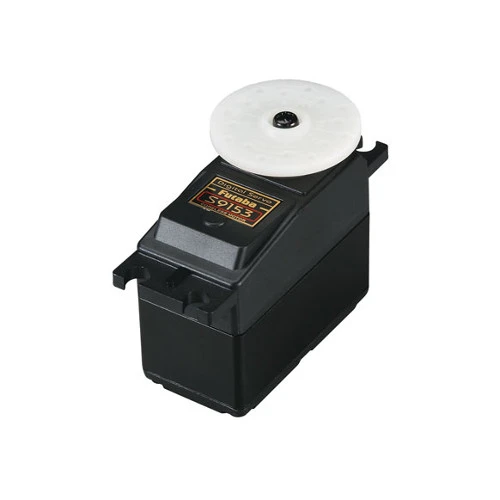

This is the Futaba S9153 Digital Aileron/Elevator Servo.
Comes with “J” Connector Pre-Installed.

FEATURES: Heavy duty wiring handles higher current loads
Metal center casing which helps to dissipate heat and is designed to
be water and dust proof
Coreless motor
High torque
One year warranty

INCLUDES: One Futaba S9153 Digital Aileron/Elevator Servo
Two rectangular grommets
Four brass bushings
Four 3mm x 15mm self tapping phillips head mounting screws
One 1.2″ (30mm) diameter round horn
One 3.5″ (88mm) diameter star shaped six point horn
One 3.9″ (98mm) diameter four point horn

SPECS: Speed: 0.15 sec/60 degrees @ 6V
Torque: 208 oz/in @ 6V ( 15 kg/cm )
Weight: 3 oz (85g)
Length: 1.91″ (48.6mm) case only
Length: 2.54″ (64.6mm) including mounting tabs
Width: 0.99″ (25.2mm)
Height: 1.56″ (39.7mm)
Distance between mounting hole centers same side: 0.55″ (14mm)
Distance between mounting hole centers opposite side: 2.35″ (59.6mm)

COMMENTS: S9153 Digital Servo Precautions,
-It is best to avoid long leads and Y-harnesses especially with
standard grade wires. If problems are encountered, consider using
heavy duty wire such as Futaba’s Heavy Duty Series or Hobbico’s
Pro Series ,minimizing lead lengths, and/or removing Y-harnesses.
-Current Drain: Futaba S9153 Servo is Specially Designed for High-
Torque and High-Speed, Therefore Very High Current Drain Is
Normal At Startup. For Ultimate Performance When Using This Servo
Please Review The Following Points.
(1) When Using Systems With the Battery Fail Safe Function it Has
a Higher Cut-Off Voltage Setting Which Will Cause Shorter
Operation Time.
(2) When Installing the Servo Please Check Pushrod Linkage To Make
Sure There Is No Binding in Order To Prevent Excessive Power
Consumption and Decrease the Life of the Motor and Battery.
This digital servo cannot be used with the following * AM *
transmitters as the servo neutral signal is: 1310us).
CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.

**** Otherwise they will work fine with current AM systems *****

COMMENTS: Servo Accessory Package (FUTM2042) includes the two large horns and
all mounting hardware mentioned above.
Gear Set is available separately, FUTM3453.
Case Set is available separately, FUTM3071.
A note on coreless motors. A conventional servo motor has a steel
core armature wrapped with with wire that spins inside the magnets.
In a coreless design, the armature uses a thin wire mesh that forms
a cup that spins around the outside of the magnet eliminating the
heavy steel core. This design is much lighter resulting in smoother
operation and faster response time.
