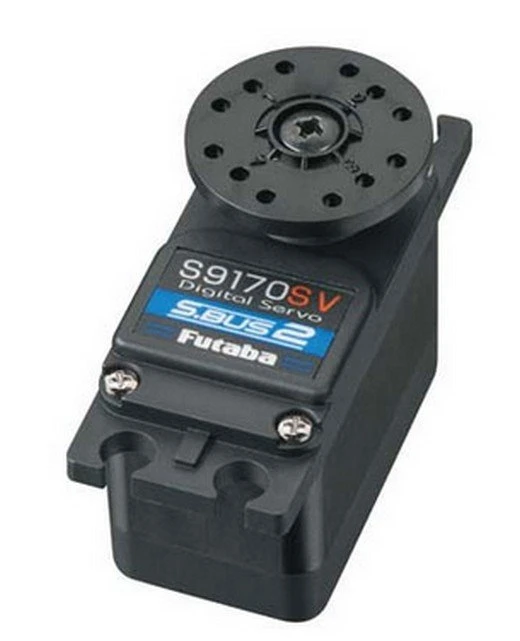

S9170SV Futaba – Low-Profile HV S.Bus2 Air Servo

This is the Futaba High Voltage S9170V S.Bus2
High Torque, High Voltage, Low Profile Programmable Metal Gear Servo.

FEATURES:

• Brushless motor offers incredible holding power and 5X longer life than
  servos equipped with brushed motors
• Low profile design allows for the servo to fit into wings where height is
  an issue
• Handles up to 2S LiPo power
• Programmable and compatible with S.Bus and S.Bus2
• Dual ball bearing supported output shaft

SPECS:

• Torque: 83.3oz-in (6 kg-cm) @ 6.6V
• 94.5oz-in (6.8 kg-cm) @ 7.4V
• Speed: 0.13 sec/60° @ 6.6V
• 0.12 sec/60° @ 7.4V
• Dimensions: 1.41 x 0.77 x 0.98″ (35.9 x 19.5 x 24.9mm)
• Weight: 1.13 oz (32 g)
