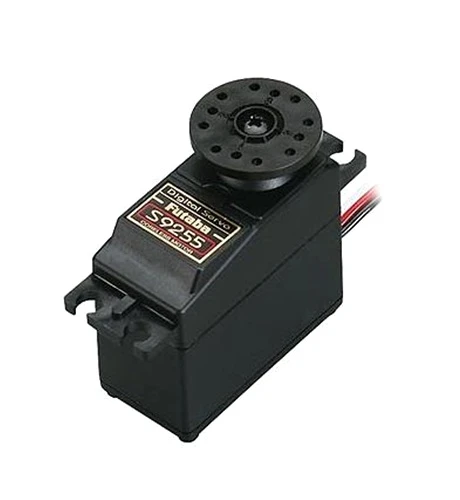

S9255 Futaba High-Torque Heli Digital Servo

This is the Futaba S9255 Digital High-Torque Servo for helicopter usage.

FEATURES:

• Comes with heavy duty wiring that can handle higher current loads
• Ball bearing output shaft
• Metal gears
• Coreless motor, a conventional servo motor has a steel core armature wrapped
  with wire that spins inside magnets. In Coreless designs, the armature uses
  a thin wire mesh that forms a cup that spins around the outside of the magnet
  eliminating the heavy steel core. This design is much lighter resulting in
  smoother operation and faster response time.
• High torque

INCLUDES:

• One Digital High Torque Servo w/Small Round Horn and 11.5″ (292mm)
  wire lead
• Four Rectangular Grommets
• Four Chrome Bushings
• Four Mounting Screws
• One Large Round Horn
• One Six Arm Horn
• One Four Arm Horn

SPECS:

• Speed: .16 sec/60?X @ 4.8V
• Torque: 125 oz-in (9.0 kg/cm) @ 4.8V
• Weight: 1.9oz (55g)
• Dimensions: 1.6 x 0.8 x 1.4″ (40 x 20 x 37mm)

COMMENTS:

• Case Set FUTM3030
• Gear Set FUTM3463
