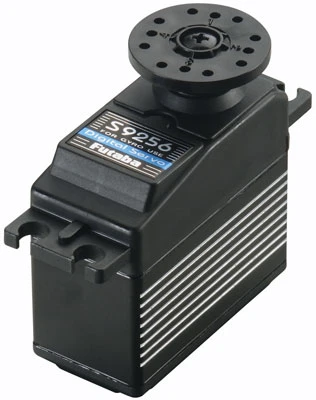

S9256 Futaba Servo Digital Hi Speed/Torque GY611 Only

This is the S9256 Digital Servo used with the Futaba GY611 Gyro, FUTM0825.

FEATURES:

• Aluminum case with heat sink to help cool motor
• Special servo for the GY611. Compatible with Super Narrow Pulse of (760μs)
  drive.
• Nylon gears

INCLUDES:

• Four rubber grommets to isolate vibration
• Four brass eyelets
• Four phillips head self-tapping mounting screws
• One large servo wheel 35mm in diameter
• One star shaped (six arms) servo arm 32mm accross
• One X-shaped servo arm 39mm across

REQUIRES: Radio system using Futaba “J” type connectors

SPECS:

• Dimensions: 1.6 x 0.8 x 1.4″ (40 x 20 x 37mm)
• Weight: 2.0oz (57g)
• Speed: 0.06 sec/60? @ 4.8V
• Torque: 47 oz-in (3.4 kg/cm) @ 4.8V

COMMENTS:

The following parts are available:
FUTM3443 FGS9251 COMPLETE SERVO GEAR SET S9251 (with metal final gear)
FUTM3502 FGS9251 1/2/3 GEAR SET (without metal final gear)
FUTM2030 for ht eservo horn
