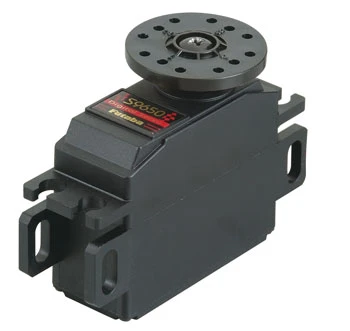

S9650 Futaba Digital Mini Servo

This is a High Torque, High Speed Digital Mini Servo from Futaba.

**DO NOT USE WITH AM SYSTEMS!**

FEATURES: Coreless motor-a conventional servo motor has a steel core
armature wrapped with wire that spins inside magnets. In a
coreless design, the armature uses a wire mesh that forms a cup
that spins around the outside of a magnet. This arrangement is
much lighter resulting in smoother operation and faster response
time.
Nylon Gears
Designed for 1/12 or 1/18 scale onroad cars such as the HPI Micro RS4
One year warranty

INCLUDES: One servo with 4 rubber grommets and brass eyelets, and one 0.83″
(21mm) diameter round horn
Instruction/Precaution sheet
Warranty Card
SPECS: Length: 43mm between centers of side mounting holes
35.5mm servo body length
42.5mm between the centers of standard mounting holes
Width: 15mm
Height: 28.6mm
Weight: 0.92oz (26 grams)

SPEED: .14 sec/60degrees @ 4.8V
.11 sec/60degrees @ 6.0V
TORQUE: 3.6kg-cm @ 4.8V (50 oz/in @ 4.8V)
4.5kg-cm @ 6.0V (62.5 oz/in @ 6.0V)

COMMENTS: Will NOT work with these Futaba radios (4FG, 5FG/K, 6FG, 6FG/K, 7FG/K
New Terratop, 3EGX, 3PGE, 2NL, 2LGX, 2FR, 2PK series)
These radios have a servo neutral signal of 1310us not compatible with
this servo
***For MAXIMUM performance, a 6.0V battery is recommended***
