SC-1268SG Savox High Torque Steel Gear Digital Servo High Voltage

• This is the Savox SC-1268SG High Torque Steel Gear Digital
  Servo (High Voltage). Savox have now released their ‘High Voltage’ servo line
  that can be powered by a unregulated LiPo battery! These servos also feature
  a redesigned motor/controller unit, and use a ‘bullet proof’ all steel gear
  set for unmatched strength.

Features:

• Combines leading edge technology with super high 12 bit
  (4096) resolution.
• Higher performance due to increased voltage and improved
  technology
• Incredible torque
• Increased transit speed
• Increased efficiency
• Water resistant with 4 silicon seals implanted
• Strong and precise-made steel gears
• Suitable for 1/8th nitro racing and large scale aircraft,
  600 and 700 class helicopters.

Technical Specs:

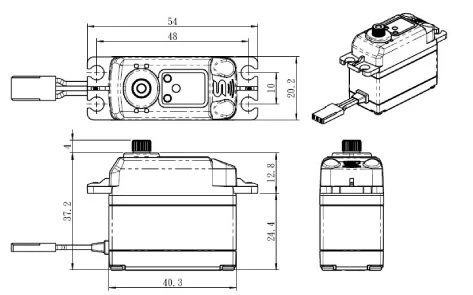

• Dimensions(mm): 40.3×20.2×37.2
• Weight(g): 62.0
• Speed(@4.8V sec/60): .15
• Torque(@4.8V oz-in): 160.0
• Speed(@6.0V sec/60): .13
• Torque(@6.0V oz-in): 208.3
• Speed(@7.4V sec/60): .11
• Torque(@7.4V oz-in): 347.2
• Gear: Unique Steel
• Bearing: 2BB
• Case: Aluminum
• Running current (at no load): 100 mA @ 4.8V
• Running current (at no load): 120 mA @ 6.0V
• Running current (at no load): 150 mA @ 7.4V
• Stall current (at locked): 2500 mA @ 4.8V
• Stall current (at locked): 3000 mA @ 6.0V
• Stall current (at locked): 3500 mA @ 7.4V
• Idle current (at stopped): 5 mA @ 4.8V
• Idle current (at stopped): 5 mA @ 6.0V
• Idle current (at stopped): 5 mA @ 7.4V
• Limit angle: 200 degree +-10 degree
• Connector wire gauge: # 22 AWG
• Connector wire length: 200 +-5 mm
• Horn gear spline: 25T
• Control system: Pulse width modification
• Amplifier type: Digital Controller
• Operating Travel: 100 degree (when1000-> 2000 usec)
• Neutral position: 1500 usec
• Dead band width: 3 ~ 5 usec
• Rotating direction: Counterclockwise (when1000->2000
  usec)
• Pulse width range: 800->2200 usec
• Maximum travel: Approx 130 degree (when900->2100 usec)
