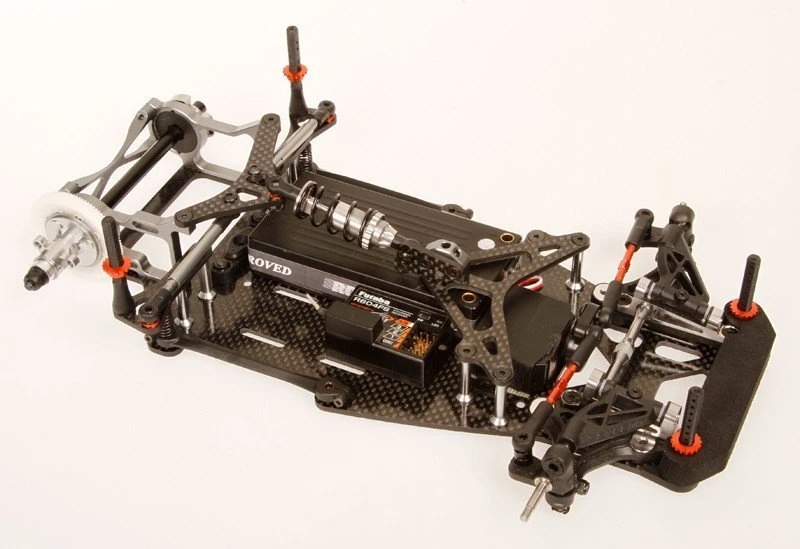

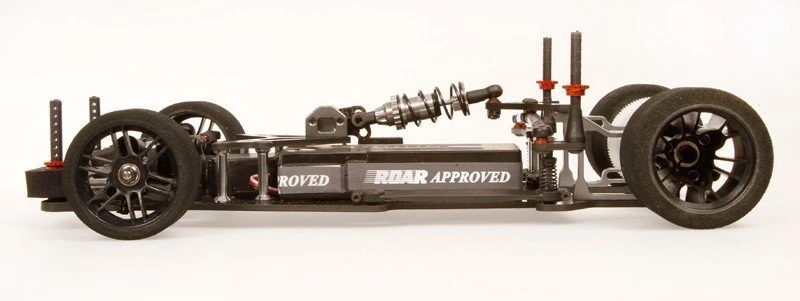

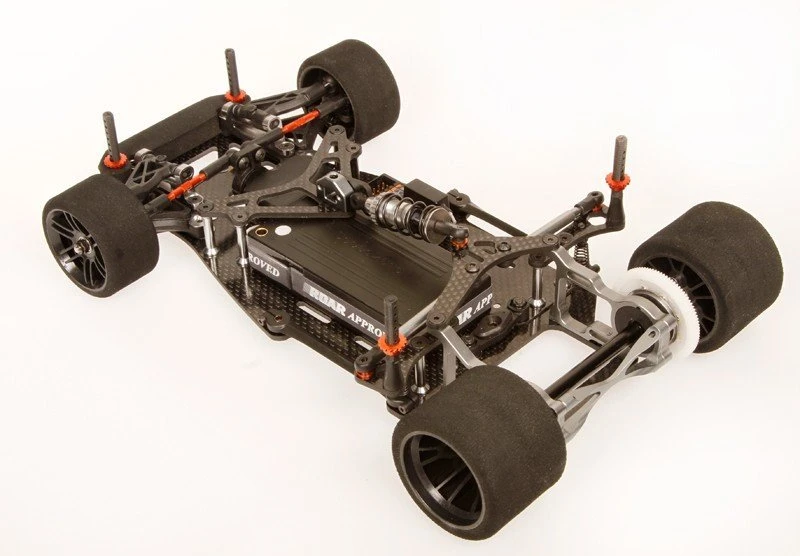

SER410004 Serpent Serpent S120 Link-Tube 1/12 Pancar EP

Serpent 1/12 scale pancar S120 Link-Tube version High performance 1/12 scale
pan chassis, with nicely machined carbon fibre and aluminium parts. Superb fully
adjustable front end creates loads of steering. Spring loaded Link system, in
combination with diagonal positioned main shock and tube-system, controls the
roll of the car. Well balanced Lipo chassis offers wide selection of set-up
features and options to dial the car in best for any track.

Specifications:

• Class: 1/12th scale
• Purpose: Competition pan car
• Chassis: 2.5mm carbon fibre, Lipo
• Rear axle: Aluminium shaft with ball differential
• Drive system: 2wd direct drive to rear axle
• Shock absorbers: Central oil filled shock absorber and tubes
• Wheel base: 195.5mm +/- 0.5mm
• Track-width front: 163mm +/- 3mm
• Track-width rear: 170.6mm

Features:

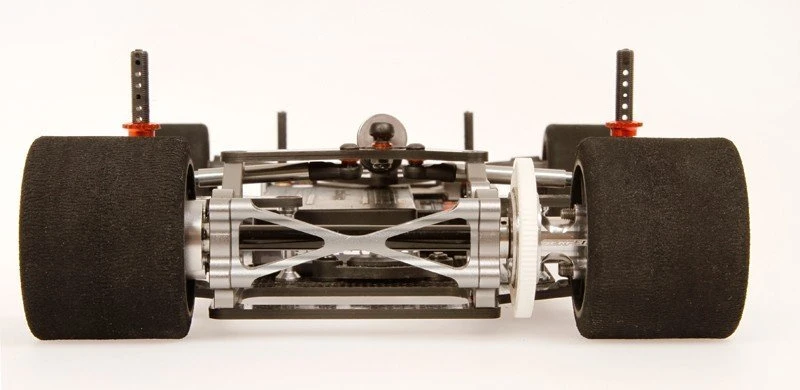

Rear motor pod, chassis
The strong basis is formed by the 2.5mm thick carbon fibre chassis plate designed
such way that the Lipo is mounted in lateral directiom, and can be mounted either
left or right side, and enough space for all the valuable electronics. The alu
/ carbon motorpod is a beautifull combination of high quality machined alu brackets
and top quality carbon fibre parts, bolted together to create an ultra stiff
rear pod. The new motor-bracket allows the brushless motor to be mounted in
the optimal position for car balance and offers good heat dissipation as well
.

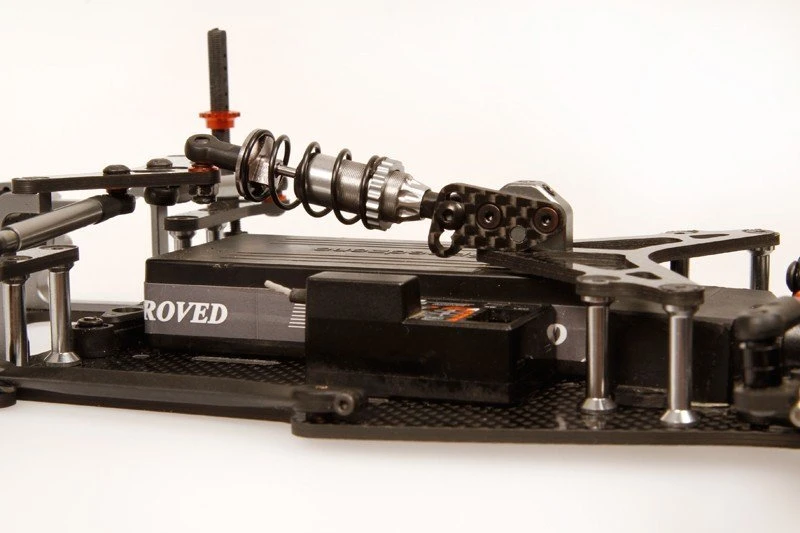

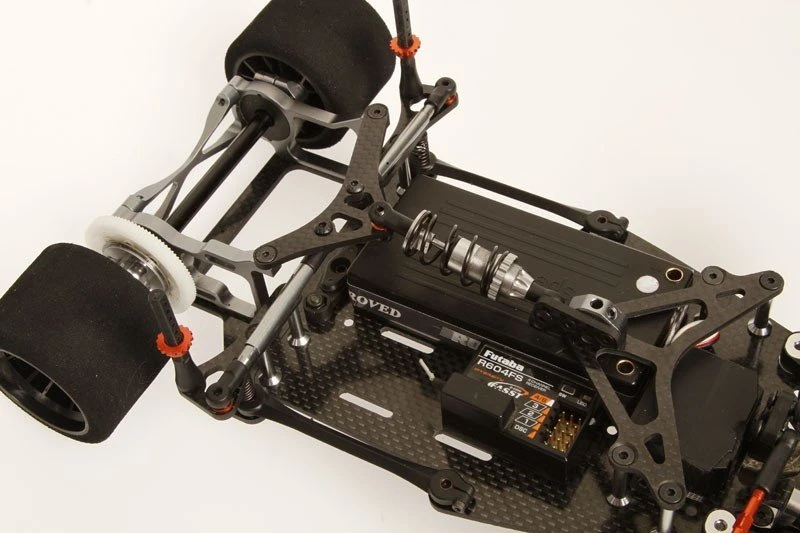

Central shock absorber
To aid rear traction under acceleration and to absorb bumps, the S120 LT sports
a centrally mounted shock absorber. Supplied with a soft spring, the pre load
of which can be adjusted, the front mount of this shock absorber is used for
adjusting the rear down stop and range of movement between the chassis and motor
pod.The central shock is mounted on a shock-tower with a number of positions
to choose from.

Rear ball differential
The S120 LT comes supplied with a durable and high performance ball differential.
Easily adjusted by a plastic nut, accessible through the right rear wheel, the
diff uses high quality steel balls and plates and is supplied with both suitable
silicone and graphite grease for use during assembly and maintenance.The rear
diff features hardened D-plates and light alu shaft assembly for super smooth
diff action.

Rear axle mounts
The lightweight graphite rear axle is mounted on bearings that sit within eccentric
composite inserts that allows the user to ability to quickly and easily change
the rear ride height of the car simply by changing between inserts. The kit
comes supplied with all 9 inserts which range between 0 and 4mm, each differing
by 0.5mm and all are reversible for an even wider range of adjustment.

Servo saver
The S120 Link comes supplied with a high quality miniature servo saver, which
through the use of orange anodised shims, has adjustable Ackerman. The kit includes
2 alu servo posts, which enable a perfectly centered mounting of any popular
brand servo.The small foam bumper is also included.

Body post
For securely mounting the body shell to your S120 LT, the car has strong plastic
body posts front and rear. All 4 posts are supplied with orange anodised adjustable
collars to precisely adjust the body’s height and the posts are supplied extra
long to allow the user to cut them to their own preferred length. The front
body posts have also been designed to help protect the front of the carbon chassis
from splitting in the event of a heavy front impact.

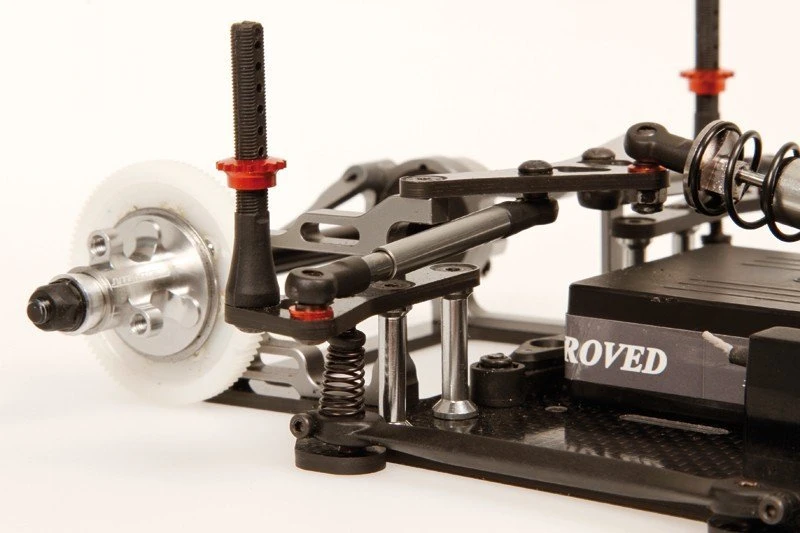

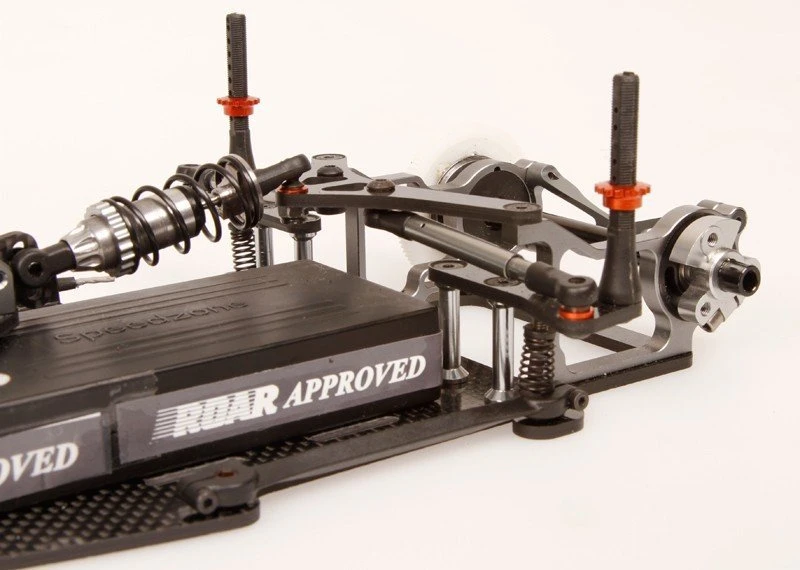

Central section
The springloaded side-bars, the links, are made of composite nylon and control
the roll of the chassis, together with the tubes and the main central shock.
Precision made springs and pivot balls.
The central section is a combination of elements to control the movements of
the rear end perfectly
– a central main shock, based on the famous Serpent RCCX technology; the shocktower
enables various angles.
– the anodised alu tubes on both sides
– 2 spring loaded shaped side bars
These elements interact to create the best possible handling (roll, bump and
alignment) under all grip-conditions.

Tube system
The S120-LT uses tubes to controll the roll of the car. This system plays a
big part in how the car turns into a corner which can be adjusted through the
use of different oils, 15.000 for normal grip and 20.000 for high grip tracks.

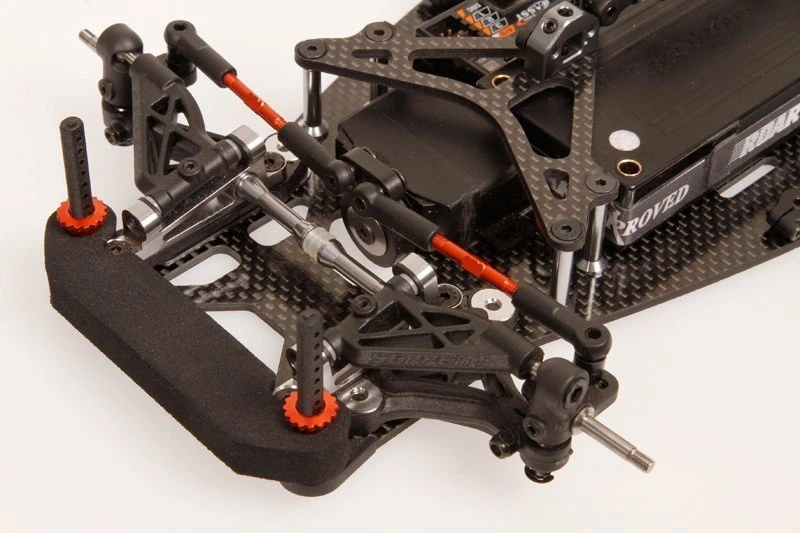

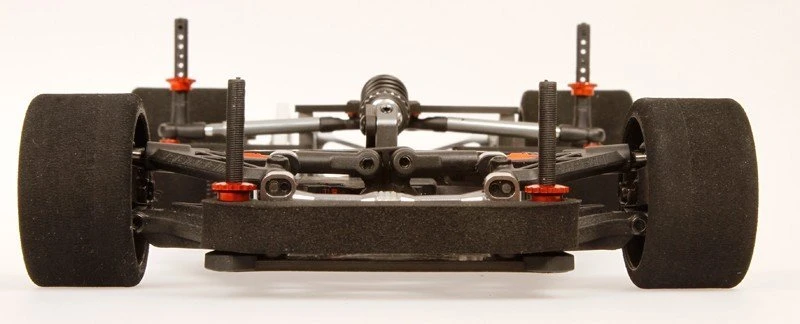

Front end
The front end of the car features 11 different adjustments to help you get the
most from your car, all of which are easy to adjust and measure. Fixed lower
suspension arms are themselves damped by the central strut which uses rubber
o-rings to take up the flex in this area, while the grey anodised aluminium
front upper wishbone mounts are available in different caster angles, the car
being supplied with 6 degree versions as standard. Ride height spacers are available
too in 0.5mm and 1mm. With the steering block king pins spring loaded, the cornering
forces are channelled through the upper wishbone, which enable the car to corner
at high speeds.
