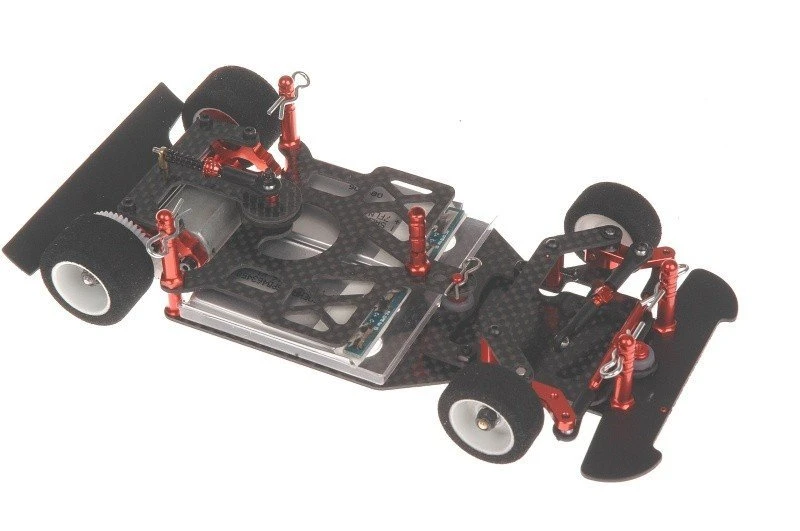

SER420001 Serpent S240 1/24 Electric Pancar

The Serpent S240 is a 1/24 scale electric 2wd pan-car. Simple, fast, proven
and strong design. No complicated suspension designs or set-ups. A pure fun
racing chassis, for sheer endless amounts of track-time.

Specifications:

• Length: 170mm
• Width: 88mm
• Height: 20mm
• Wheelbase: 116mm
• Track: 88mm/96mm
• Weight: 190 grams (with battery/motor/tyres/body)

Features:

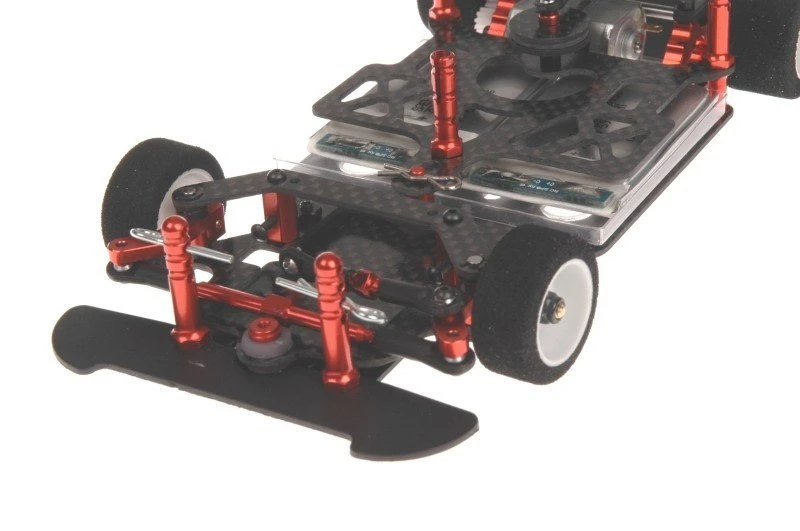

Front end S240
Front end consists of carbon fibre and aluminium components, attached to the
chassis, pivoting on 2 soft silicone grommets, creating excellent front end
grip.
Machined aluminium steeringblocks with nylon insert for smooth operation, captured
by upper and lower carbon fibre brackets.
Adustable toe in combined with durable anodized track-rods for precision-steering.

Body-shell
The nicely designed GTP type body-shell in lightweight 0,5mm material, for great
looks and superb handling.

Protection
Rear bumper to absorb the impact of fellow race-cars hitting from the back,
and protect foam tyres and main gears from hits.

Wheels, tyres and adaptors
Machined aluminium rear wheel-adaptors for super-true running rear wheels. Foam
racing tyres on closed dished type wheels.

Motor
The S240 micro electric brushed motor powers this micro-verhicle. Motorpinion
10T is standard ( other as optionals).

Ball-differential
The ball-raced ball-differential operates with plates and 12 steel balls. Standard
with 42T white gear.

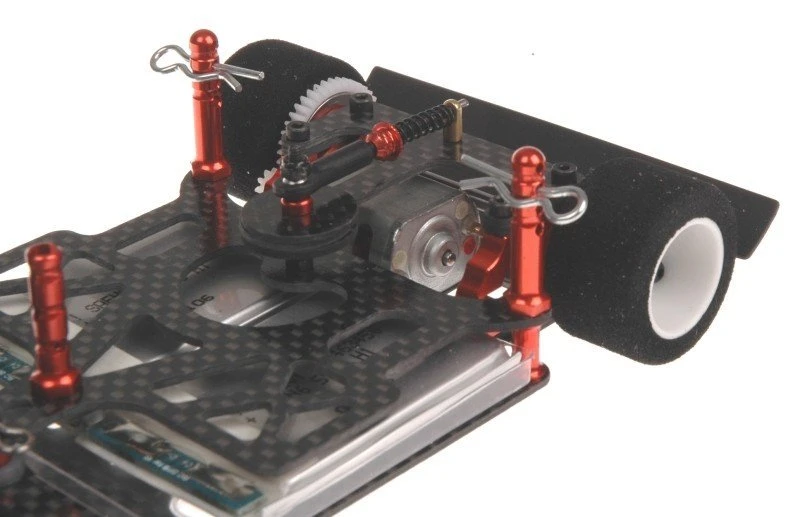

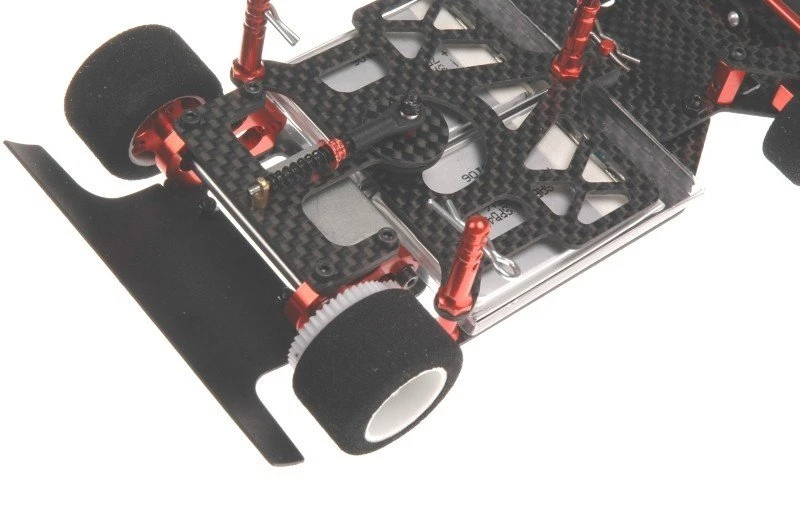

Rear end
Rear motorpod consist of 2 equal machined anodized aluminium motormounts, mounted
on 2 carbon chassis-risers, which can be taken out as well, depending on surface.
Carbon fibre top-plate connects the motormounts and created the rear end stability
and stiffness. There is sufficient space for the motorcables-to be connected.

Lipo Power
The 2 or 4 Lipo-cells (not included) are captured in this lexan holder, below
the radioplate. Pack sits very low and central in the car for best weight distribution,
which helps ultra-quick and stabile cornering.

Upper-deck
Carbon fibre upper radioplate with anodized aluminum antenna-holder. The S240
accepts speed-controllers for micro-cars of the major brands.Central rear vertical
dampening combined with a laid down rear shockabsorber to control the rear end

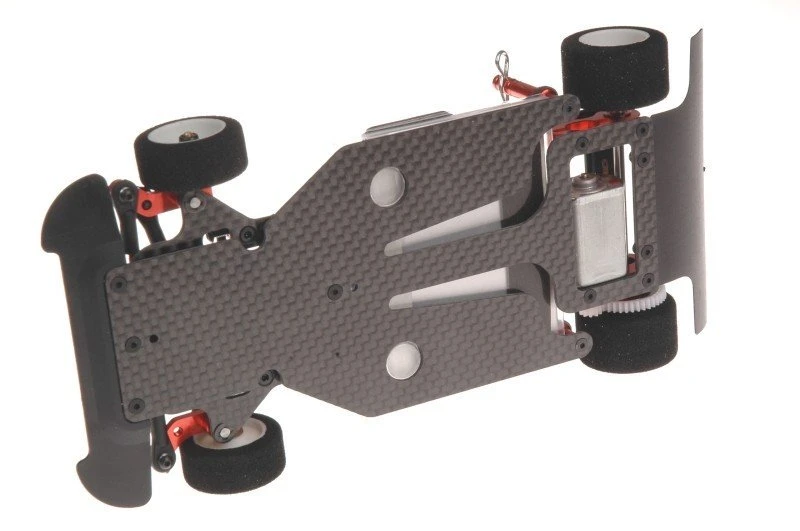

of the car. Anodised aluminium bodyposts on the far corners. Carbon fibre chassis
1.2mm with integrated T-bar flex design, 2 slots to assist keeping the lexan
battery-holder in place.

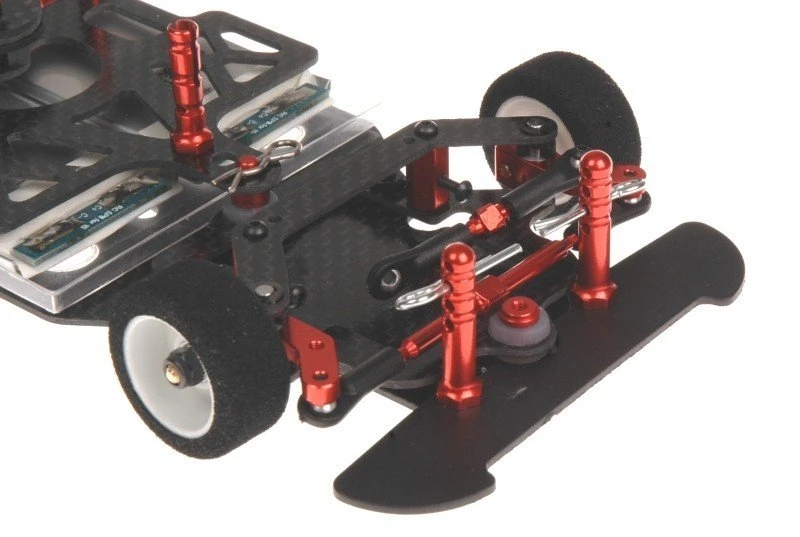

Bumper and servo position
Strong nylon front bumper with machined, anodised aluminium body-posts. Sufficient
space for the lay-down micro-servo 30x30mm ( not included)
