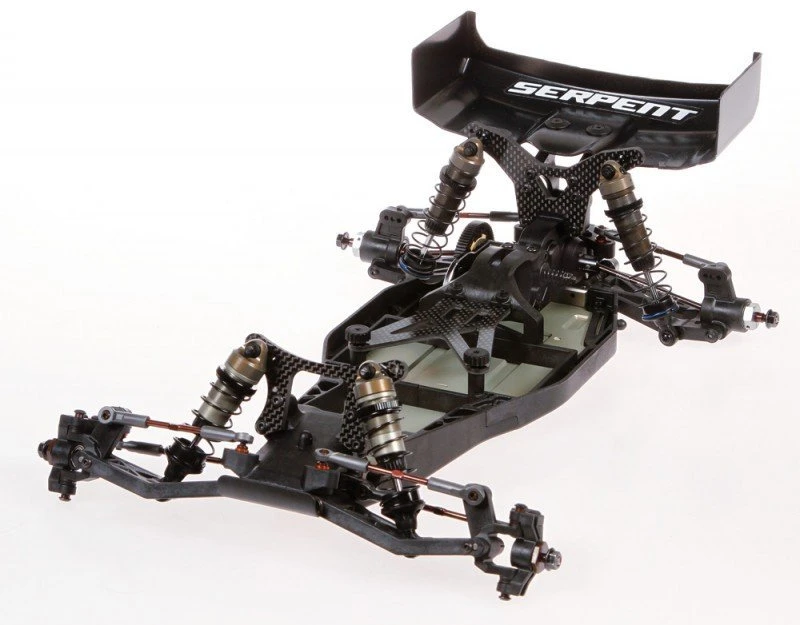

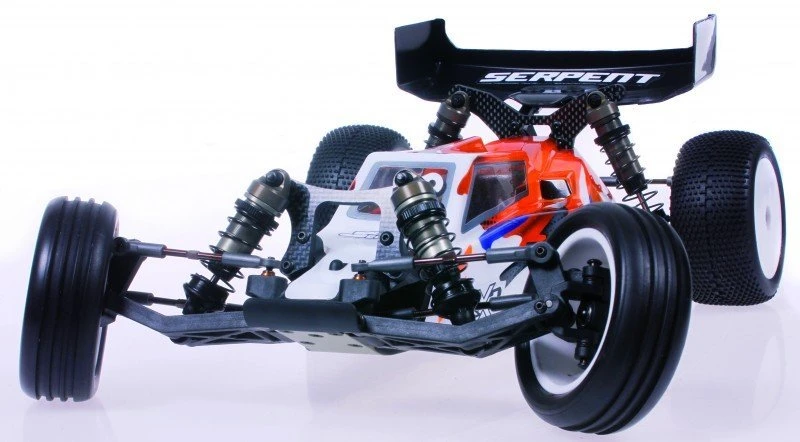

SER500008 Serpent Serpent Spyder SRX2 MH Team Edition 1/10 EP

The Spyder SRX2 MHT Team edition ( medium –high-traction) will perform best
at medium to high traction tracks like carpet, astro and high grip clay.

Specifications:

• Length: 385mm
• Width: varies with set-up
• Wheelbase: 281mm
• Gear Ratio: 2.43:1
• Weight: varies with electronics used

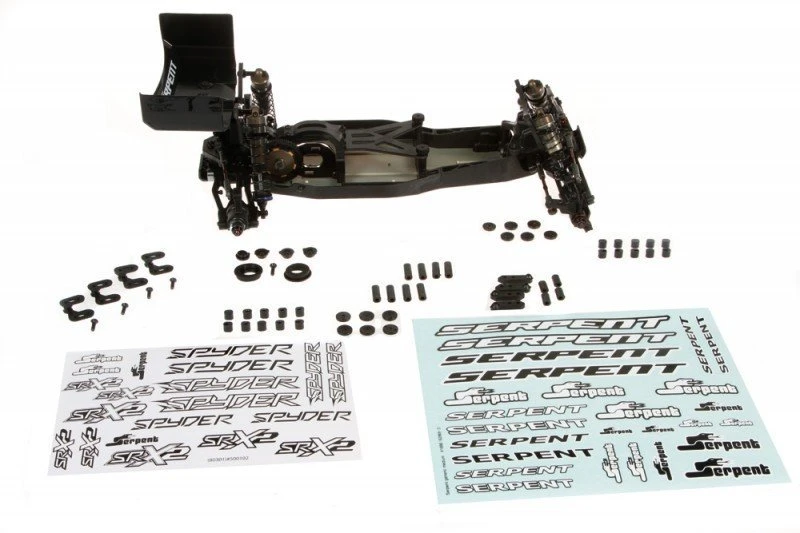

• Includes: Clear body and rear wing, front and rear wheels with 12mm hex,
  full color manual as PDF on USB stick and decals

Features:

• High performance race geometry
• Narrow hard anodised aluminium 7075 T6 chassis with separate aluminium
  kick-up plate
• Carbon fibre front and rear shocktowers
• Laydown transmission / motor design with light 3 gear transmission
• Durable and efficient suspension front and rear
• Highly efficient steering Ackermann
• Big bore 12mm shocks with dual system and hard anodisied bodies and caps
• Smooth ball-differential ( gear-diff optional)
• 3 pad slipper clutch
• Composite battery holder
• Low, cab forward MH body

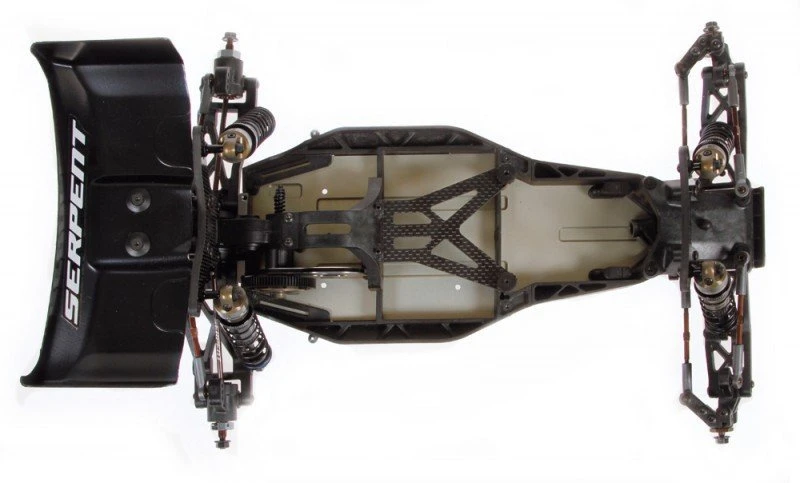

Chassis

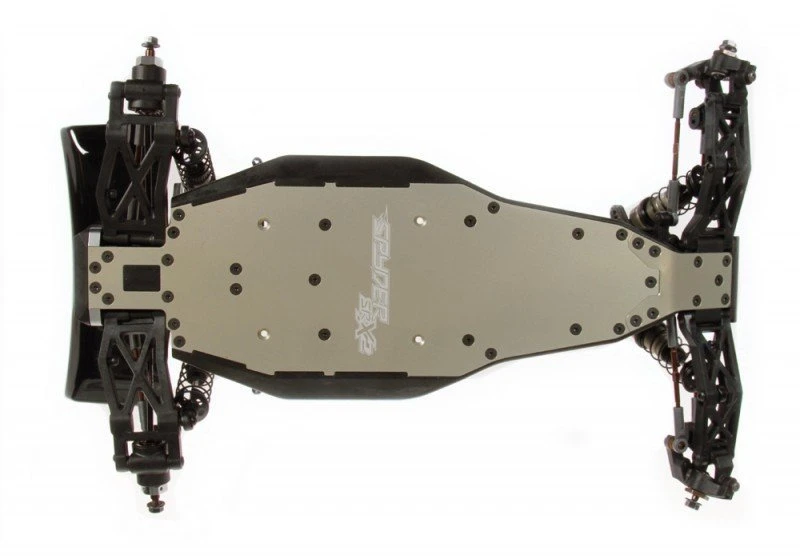

Hard coated and laser engraved 7075 T6 aluminum chassis plate with a layout
allowing for a perfect weight balance, and optimal space for the electronics,
battery and servo. The aluminium front kick-up plate is separate and angled
for more clearance for racing and allow for better nose landings. ( the separate
kick-up plate allows you to also mount the optional carbon chassisplate).

Transmission
3-gear laydown transmission for medium to high traction = MHT
Serpent offers some upgrade sets to fit a 3-gear upright, 4 gear upright transmission
system, or a 4 gear laydown transmission as well. All fit on the same chassis.

Shocktowers

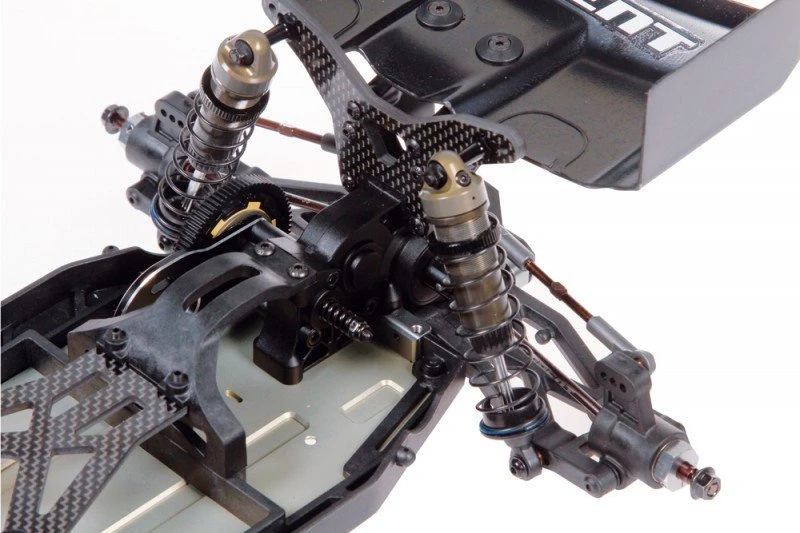

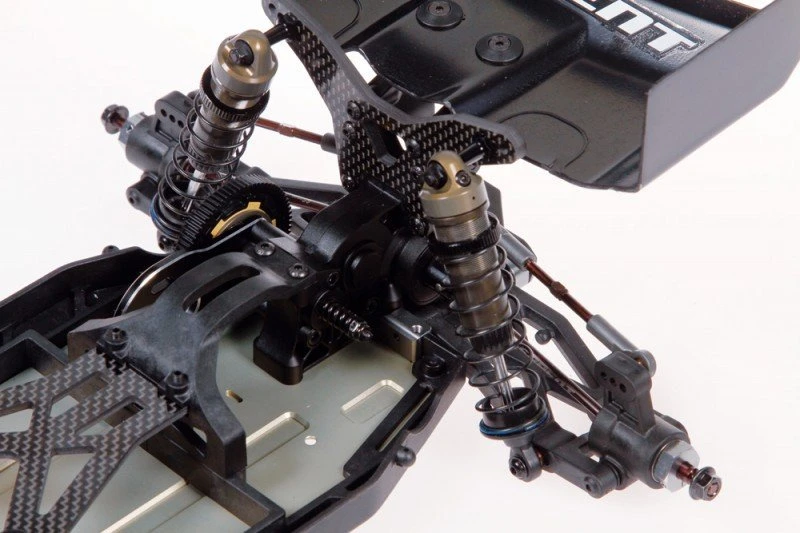

Strong and ultra stiff carbon fibre front and rear shock towers. The shock towers

have multiple shock angle positions allowing drivers to fine-tune for varying
track conditions.

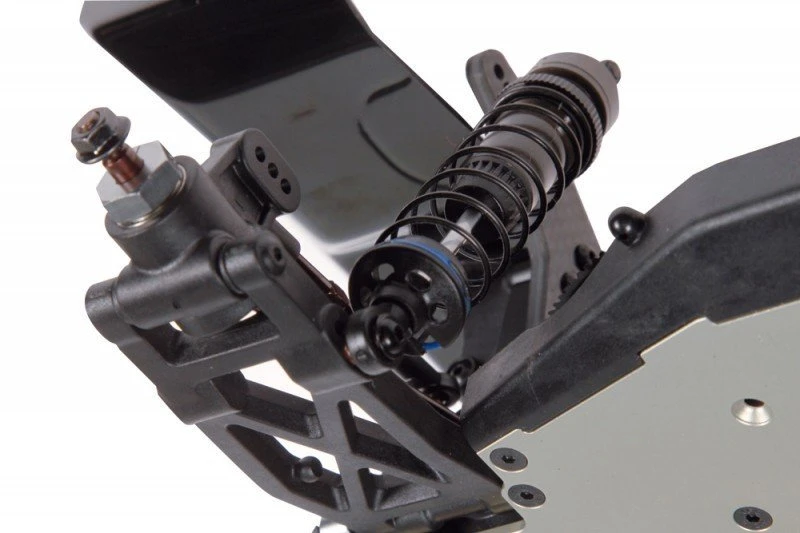

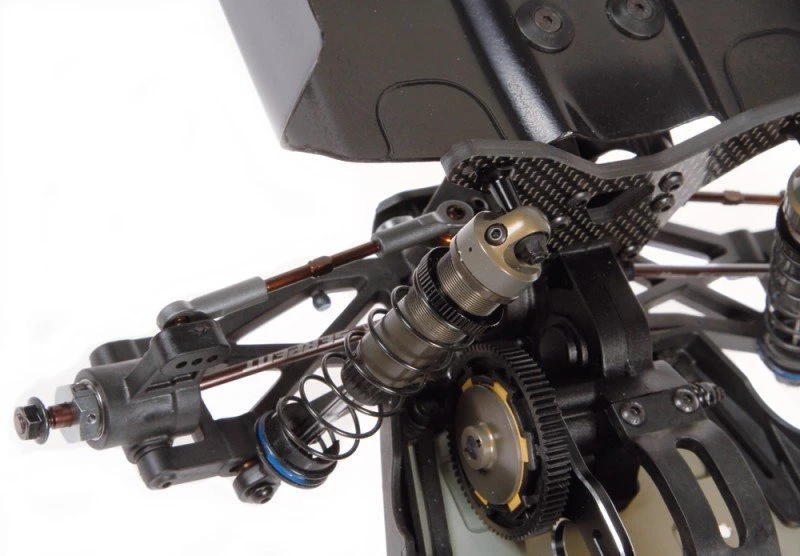

Shock absorbers
Dual system 12mm hard coated big bore shocks with coated threaded bodies, a
unique cap design, a superbly sealing o-ring and spacer package. The shocks
can be used in bladder or emulsion setups wit the hardcoated shocktops supplied.
The shock-set comes with a set of moulded pistons to choose from. A selection
of 5 springs-sets is available to fine-tune the suspension settings. Shock collars
with inner o-rings are used on the threaded bodies to set-ride height. The rear
shocks can be mounted in front of the rear arms or at the back. Super versatile.

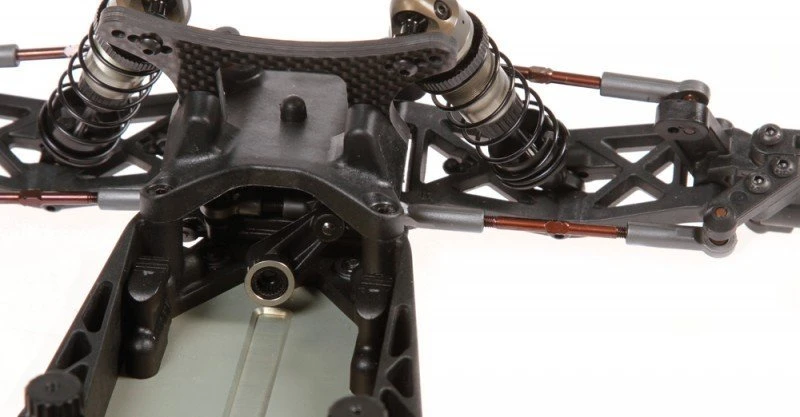

Front upper bulkhead
The front upper bulkhead is strong and supports the upper links and shock tower
in the best possible way. The front section offers the option to mount a front
wing and sway bar unit

Front wishbones
The wishbones are made from a super strong composite material. The gullwing
arms to optimize the CG and pivot on 3mm captured pins on the inside and out.
The arms have 2 mounting positions for shock angle and are prepared to use an
optional anti-roll bar if needed.

Front and rear track Rods
Spring steel front and rear track rods are mounted to durable composite captured
ball joints. The trackRods have L/R threading for easy adjustments.

Castor blocks and settings
Caster block inserts come as 0, 2.5 and 5 degree version all of which are included.
The caster blocks are very compact and strong units made from a special composite
material.

Steering Block and Rear Upright
The steering blocks fit 5x10x4 mm bearings. The rear hub uprights use a larger
5x14x4 outer bearing and 10x15x4 mm inner for ultimate lasting performance.
The steering blocks and rear uprights utilize some of the best high strength
materials on the market today.

Upright Settings
The rear uprights allow you to adjust, the toe in from -2 to + 2 degrees by
use of various inserts also included in the kit.

Steering system and Ackermann
The steering system has a reverse swinging pivot system that optimizes the efficiency
through all different types of corners. Included are 3 Ackermann choices.

Wheel-axles and wheel hex.
The spring steel wheel-axles utilized 12mm hex adapter to follow current market
standards. The front springs steel axle is fixed, while the rear wheel-hex is
a clamping aluminum version.

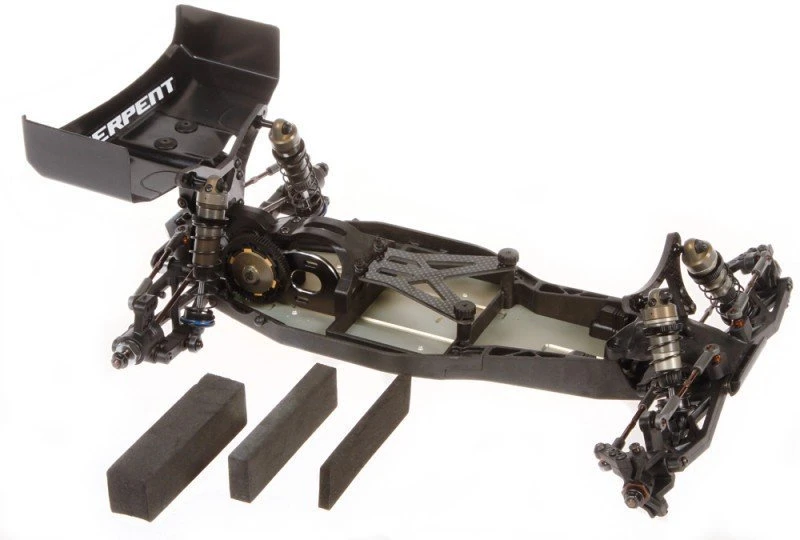

Battery space mount and weight balance
The battery is mounted perfectly in the center line of the car. In case of using
a Shorty-pack, it can be moved to front or back to play with weight balance.
Pieces of hard foam are supplied to do so and secure the battery in position.
The carbon fibre battery-top-brace has a secure quick release system with handy
twist nuts and acts as a chassis stiffener too. The flex can be influences by
using 2 small grubscrews. When using the upright transmission, the Shorty can
also be mounted longtudinal .

Differential
The limited slip ball differential is a super compact, effective and durable
unit. Utilizing 1.8th inch diff balls for ultimate durability. The structure
and assembly is common type in this class, but the high quality parts and well
functioning make it stand out.

Motor plate and motor guard
The motor plate is a machined aluminium; it is then anodized and machined for
weight reduction. Both the laydown 3-gear one and the 3-gear standing one are
included.

Anti-roll bars
Anti-roll bars can be fitted on the front and rear of the car, are optional.
They can be used on high grip surfaces to further adjust the cars performance

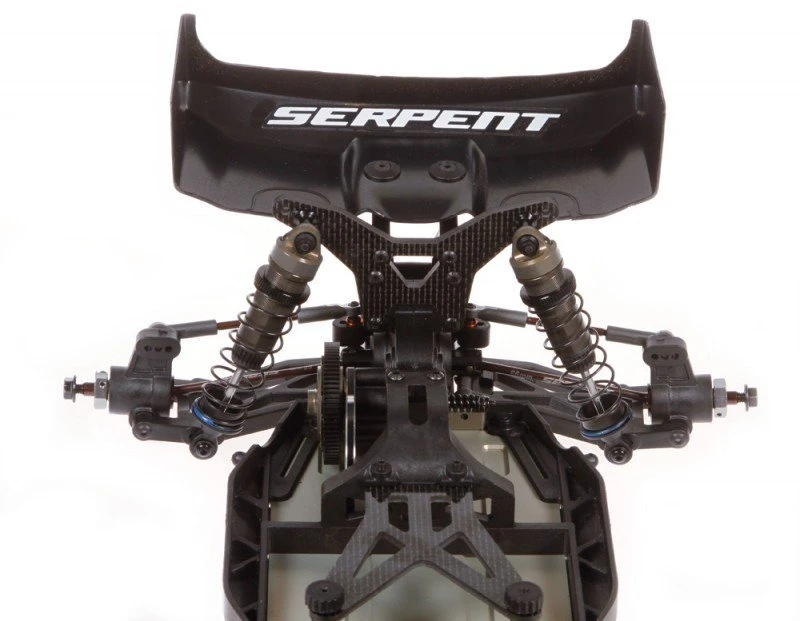

Rear Transmission case
The composite rear transmission case is light and durable. It securely holds
the motor plate, differential as well as supports the rear wing mount and rear
shock tower.

Rear driveshaft system, wheel-axles
The spring steel drive shafts are thin and light, yet durable. The spring steel
wheel-axles are 5mm, light and durable, guided by the 2 different size of bearings,
inner 10x14x4 mm and outer 5x13x4 mm. The driveshaft pin is fully captured to
prevent any failure. These bearings are for sure to stand up the rigors of any
track condition.

Rear suspension brackets and toe in
The 3mm spring steel pivot pins are held in place by the suspension bracket
made from aluminum. Inside the bracket you use inserts to set toe-in and roll
center. You can adjust the toe-in from 2 to 4 degrees and adjust the anti squat
from 0 to 4 degrees.

Rear suspension arms
The long and durable rear suspension arms are very tough units to withstand
the rigors of the track and the hard landings. The rear arm offers 2 options
for shock position and two mounting locations for the rear anti-roll bar if
needed.

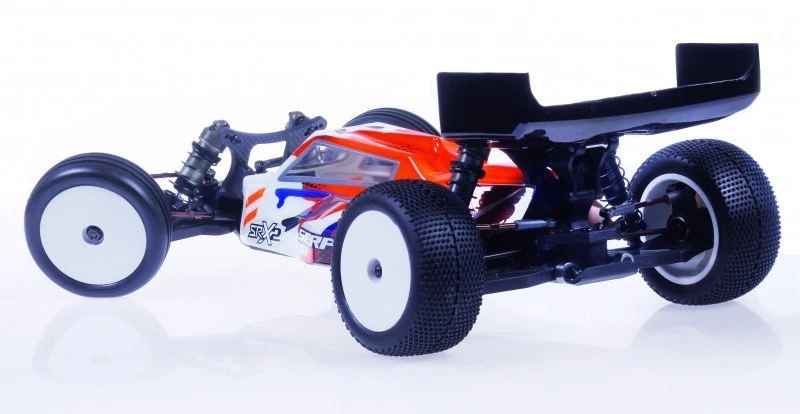

Body shell and rear wing
The light and low cab-forward style body, made in top quality clear polycarbonate,
has a nice flowing line, steep front windscreen for down force with indents
in the section in front of the windscreen. The shark fin on the roof of the
cabin offers not only style but stability. The smooth body lines enhance the
cars appearance and do so in style
The polycarbonate rear wing utilizes raised cuts in the sides to improve wheel
clearance.

Rear wing holder
The composite rear wing holder is connected to the rear bulkhead and shock tower.
It is fully adjustable from 0,2,4,6 and 8 degrees. Its fixed into place by a
washers and screws.

Ballbearings
High speed sealed stainless steel ballbearings with grease.

Fastners
Hard steel , mostly allen screws, roundhead and countersunk.

Wheels
Durable white nylon flat faced wheels, specifically designed to utilize the
advancements in the front and rear suspension geometry.

Set-up possibilities

• Wheelbase
• Caster
• Ackermann
• Axle height Front
• Front and rear camber
• Front Toe-in and toe-out
• Rear Inboard toe-in angle
• Rear Outboard toe-in angle
• Antisquat
• Roll-centers
• Ride height
• Diff height
• Weight balance
• Shocks for dampening and springs, shock angle
• Gear ratios
• Anti-roll bar thickness ( option)
• Electronics placement
