SER500012 Serpent Spyder MT2 1/10 EP 2wd

Product Description

• Serpent Sports introduce the Spyder 1/10 rear motor Monster Truck in a true Ready to Race version !

  This big wheel Monster Truck can conquer any terrain with the oversized tyres . Great looks with realistic looking MT body and the large wheels / tyres. The strong and durable power system offers amazing torque and topspeed . The Spyder MT suspension comes from our competion range of vehicles and is made to last ! Superior handling in both on and offroad use. The long bigbore shocks and long durable suspensions arms eats any terrain with eas. DragonRC 2.4 GHz digital transmitter included to manage all the power !

• Main features
  – Ready to race
  – Prepainted and precut MT body
  – Dragon-RC 2.4 GHz transmitter TX-RX
  – Waterproof prorammable electronic speedcontroller 45A Dragon-RC
  – Brushless, sensorless motor 3000KV 9T Dragon-RC
  – Durable metal gear servo Dragon-RC
  – Expert factory assembly and set-up
  – premounted oversized MT tyres on spoked MT wheels Dragon-RC
  – Spring steel transmission
  – Oil-filled gear differential and solid slipper clutch
  – High performance race geometry
  – Big bore 12mm RCM type shocks with dual system
  – Rear motor design

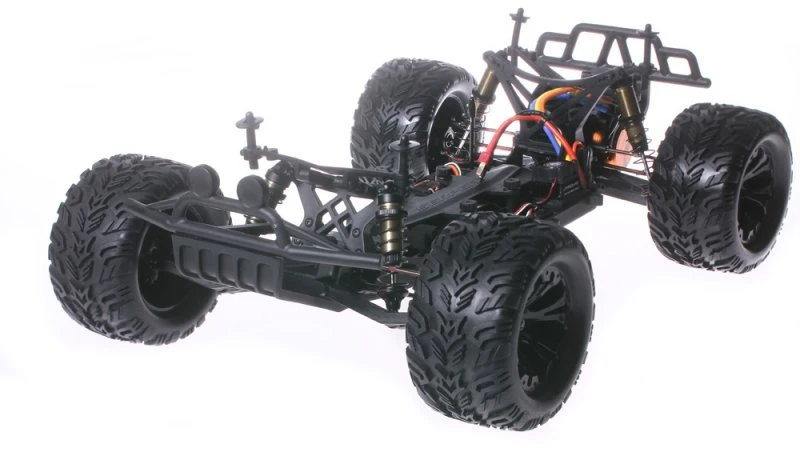

  – Durable composite chassis design
  – Large front and rear composite bumper
• Features

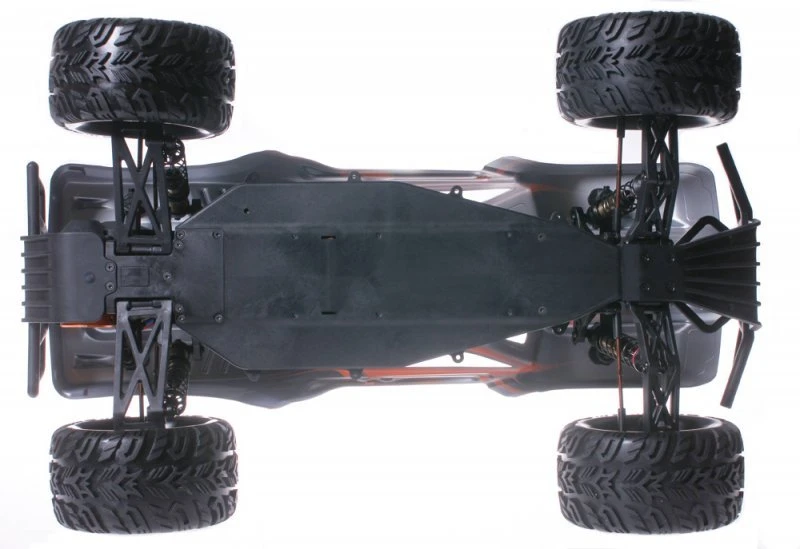

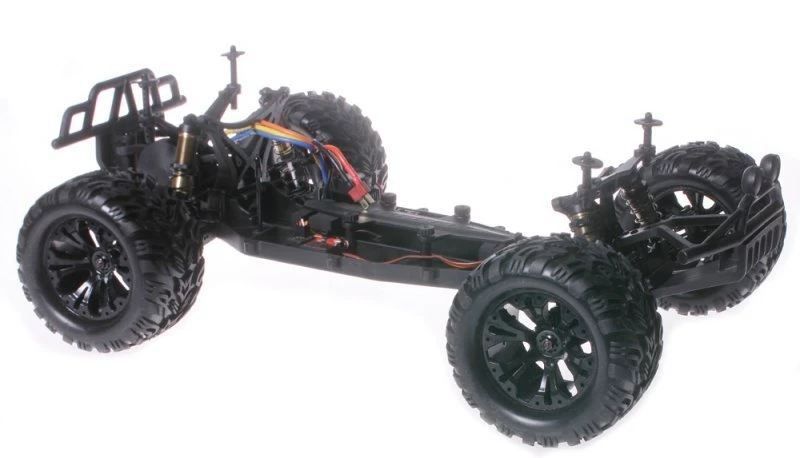

  Chassis and Rear Chassis skid plate
  Composite chassis plate with a layout allowing for a perfect weight balance, and optimal space for the electronics, battery and servo. The front kick-up angle in the chassis incorporates more clearance for racing and allow for better nose landings.
  The composite rear skid plate connects to the chassis plate. This connection allows you to unclip the rear end in one piece, but helps reduce the total cost of maintenance. It is also made from extremely high strength composite material.
• Shocktowers and Shock absorbers
  Durable composite front and rear shock towers, with multiple shock angle positions allowing to fine tune for varying conditions.
  Dual system 12mm big bore shocks with coated threaded bodies, a unique cap design, a superbly sealing o-ring and spacer package.

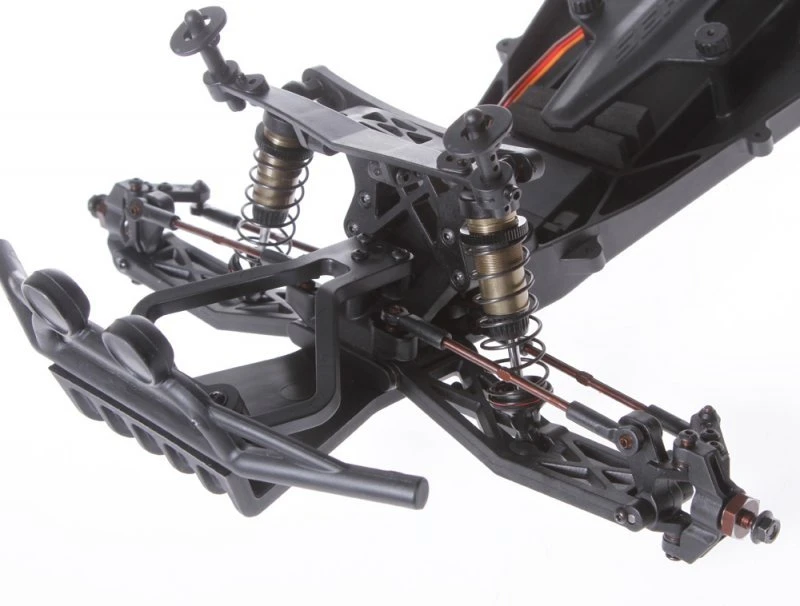

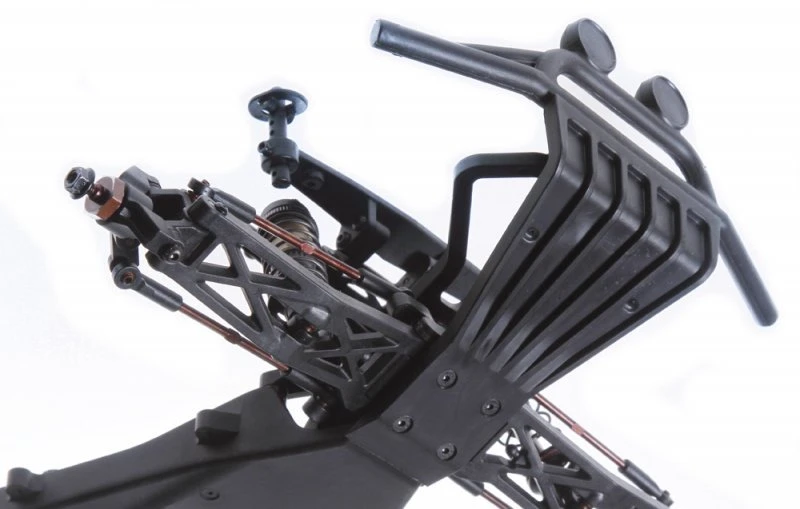

• Front bumper system
  The durable composite front bumper system will absorb the worst of head on crashes and will allow for save nose landings.
• Front wishbones and Front and Rear Track Rods
  The long front wishbones are made from a super strong composite material. The arms are angled to optimize the CG and pivot on 3mm captured pins on the inside and out. The arms have 2 mounting positions for shock angle and are prepared to use an optional anti-roll bar if needed. Spring steel front and rear track rods are mounted to durable composite captured ball joints. The track Rods have L/R threading for easy adjustments.

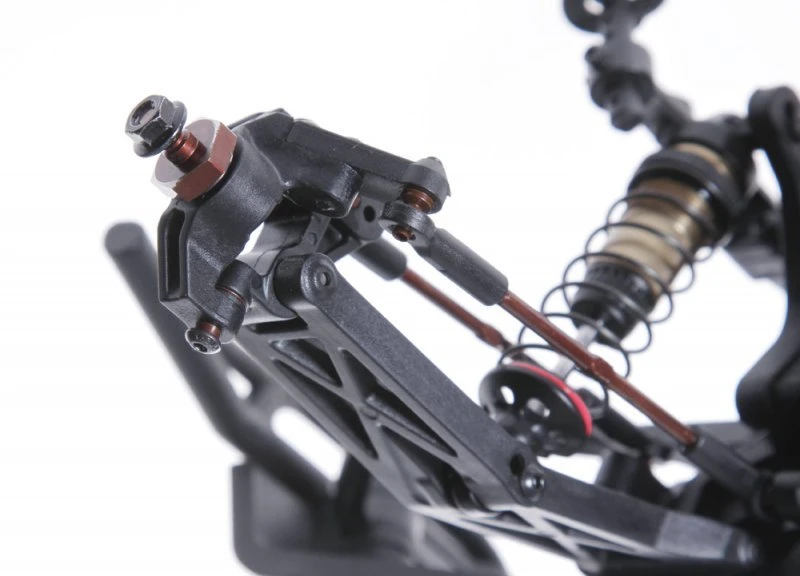

• Castor blocks Steering Block
  The steering blocks fit 5x10x4 mm bearings. The caster blocks are very compact and strong units made from a special composite material.

• Steering system and Ackermann
  The steering system has a reverse swinging pivot system that optimizes the efficiency through all different types of corners

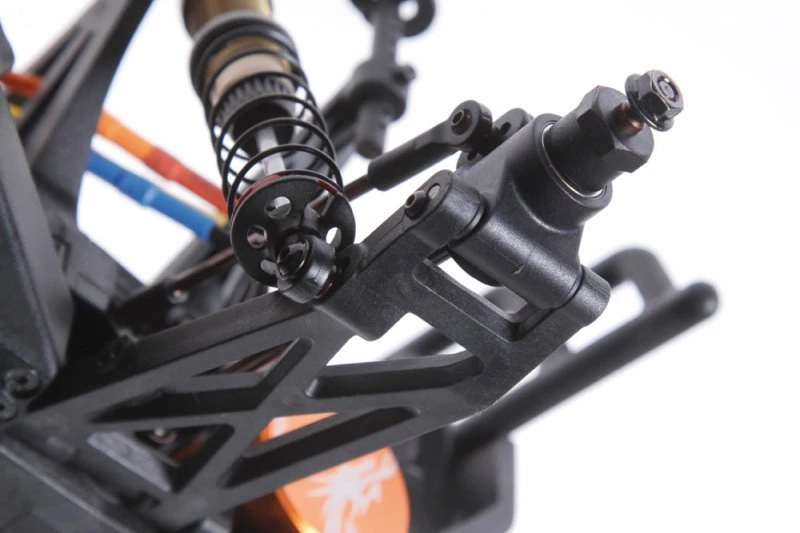

• Uprights
  Durable composite units. The rear hub uprights use a larger 5x14x4 outer bearing and 10x15x4 mm inner for ultimate lasting performance
• Wheel-axles, wheel hex, trans case, rear arms
  The spring steel wheel-axles utilized 12mm hex adapter to follow current market standards. The front springs steel axle is fixed, while the rear wheel-hex is a clamping aluminum version.
  The composite rear transmission case is light and durable. It securely holds the motor plate, differential as well as supports the rear wing mount and rear shock tower.
  The long and durable angled rear suspension arms are very tough units to withstand the rigors of the track and the hard landings. The rear arm offers 2 options for shock position and two mounting locations for the rear anti-roll bar if needed.

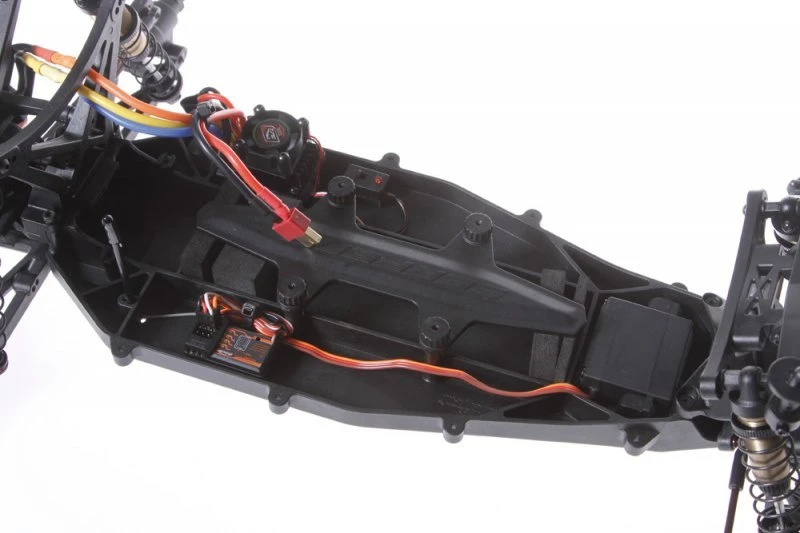

• Battery space mount and weight balance

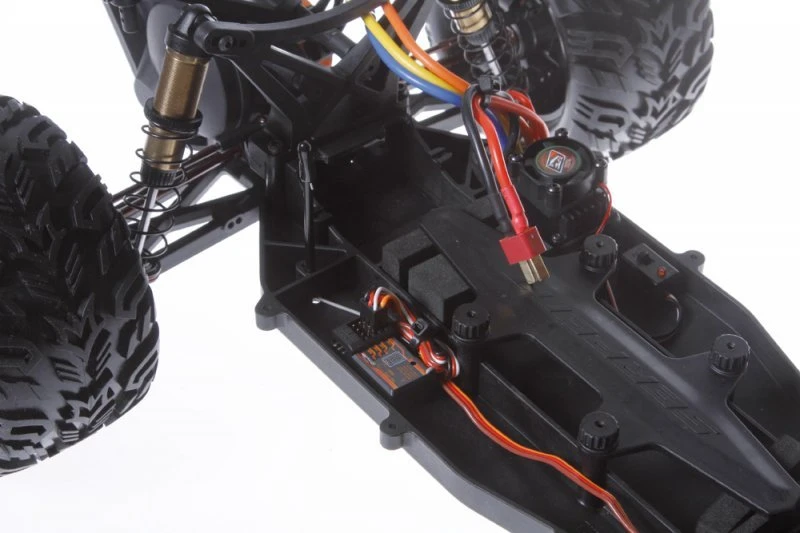

  The battery is mounted perfectly in the center line of the car. Its an exact fit for saddle packs. In case of using a Shorty-pack, it can be moved to front or back to play with weight balance. Pieces of hard foam are supplied to do so and secure the battery in position. The carbon fibre battery-top-brace has a secure quick release system with handy aluminum twist nuts.
• Differential
  The oil filled gear-differenial is a super compact, effective and durable unit.
• Clutch
  The car features a solid slipper combined with a steel gear, to have a simple and durable system. The slipper clutch is optional.

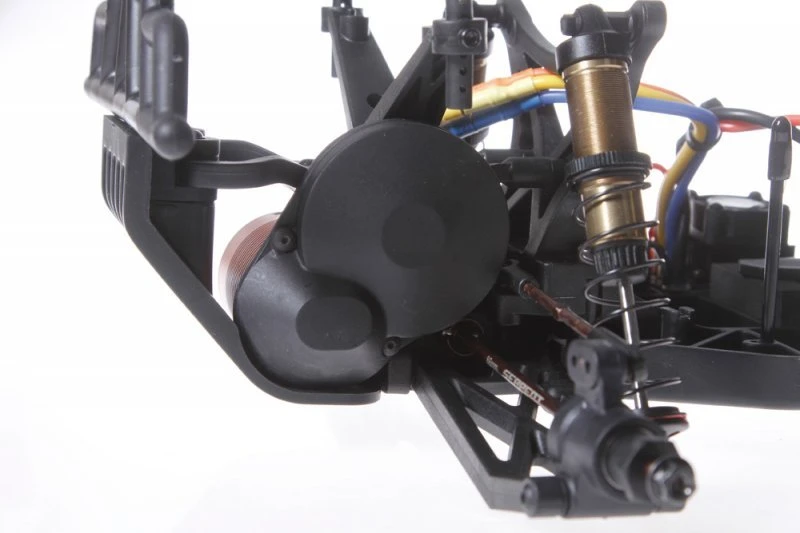

• Motor plate and motor guard
  The motor plate comes in anodized aluminum.

• Rear driveshaft system, wheel-axles
  The spring steel drive shafts are thin and light, yet durable. The spring steel wheel-axles are 5mm, light and durable, guided by the 2 different size of bearings, inner 10x14x4 mm and outer 5x13x4 mm. The driveshaft pin is fully captured to prevent any failure. These bearings are for sure to stand up the rigors of any track condition.

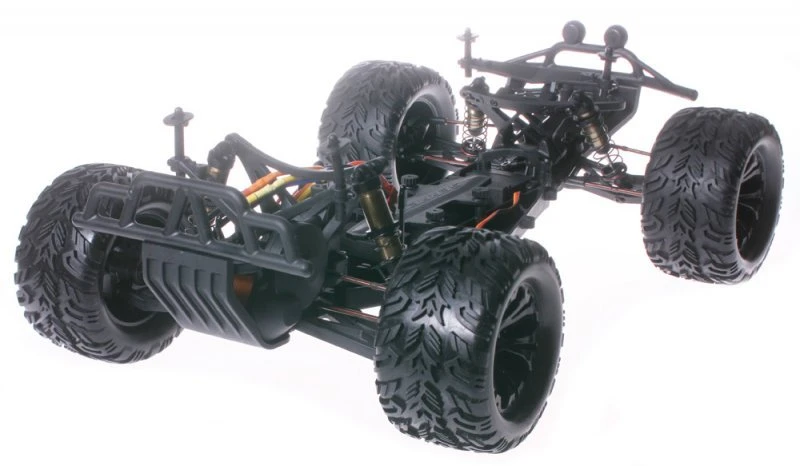

• Rear bumper
  The rear bumper section is a very durable unit, easy to disassembe, and fits well with the rear of the body, to absorb the worst of back-end crashes.

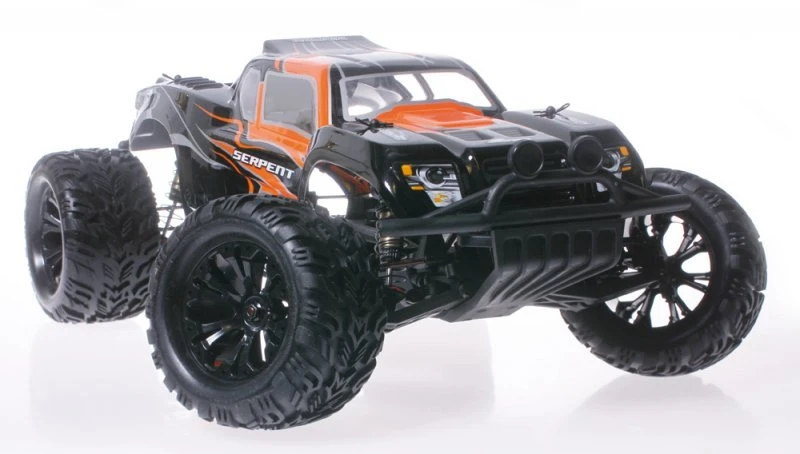

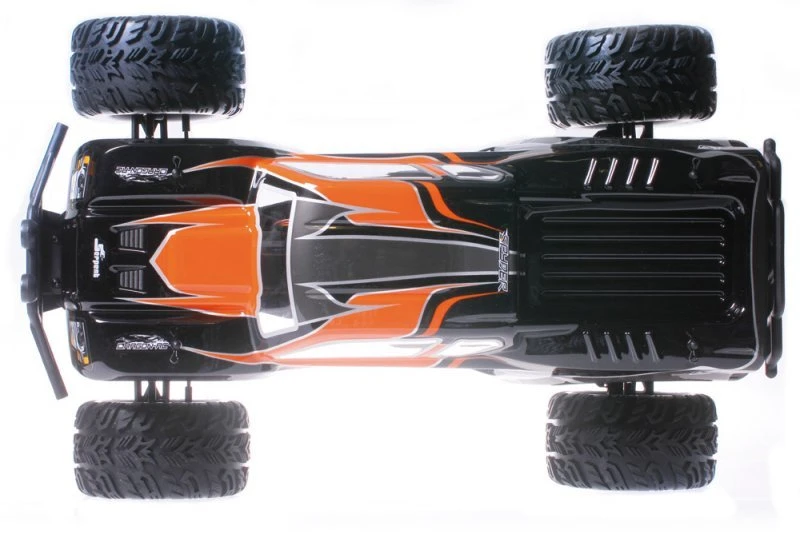

• Body shell
  The light realistic looking MT style body, made in top quality clear polycarbonate, has a nice flowing line, steep front windscreen for down force .

• Ballbearings and metric Fastners
  High speed sealed stainless steel ballbearings with grease . Hard steel , mostly allen screws, roundhead and countersunk. Minimized number of different allen heads to make working on the car easier.

• The kit comes complete with body and wheels, full color manual and exploded views, a blank and standard set-up sheet and Serpent decals.
• Set-up possibilities
  Wheelbase, Caster, Ackermann, Axle height Front, Front and rear camber, Front Toe-in and toe-out, Rear Inboard toe-in angle, Rear Outboard toe-in angle, Antisquat, Roll-centers, Ride height, Weight balance, Shocks for dampening and springs, shock angle, Gear ratios, Anti-roll bar thickness, Electronic placement
• Kit includes
  – Ready to Race car
  – Not included: TX batteries, car battery and charger

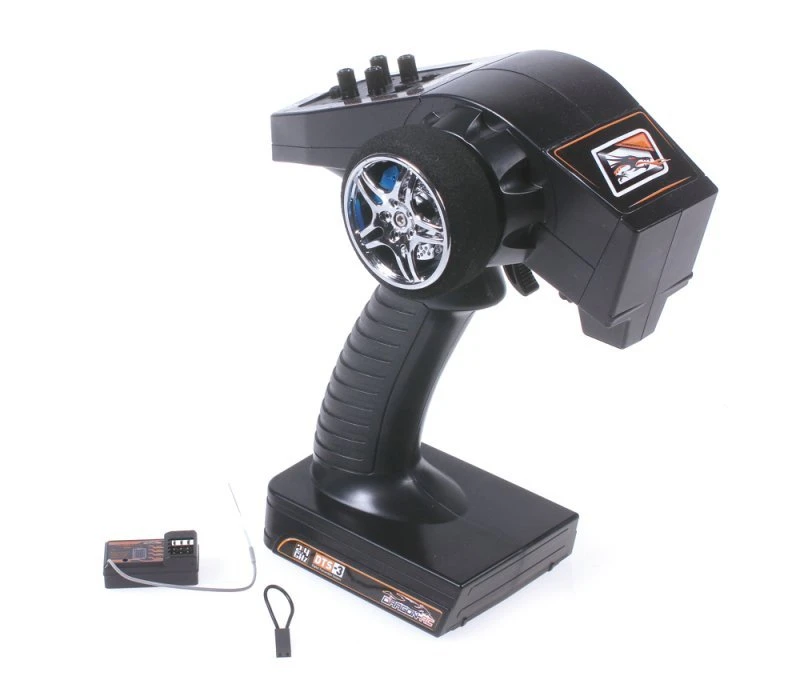

• 2.4 GHz transmitter with small receiver
  Waterproof speed controller and 9T 3000Kv brushless motor
  Metal gear servo 7kg
