SER600015 Serpent Cobra Buggy 2.2 GP 4wd 1/8

Serpent Cobra 811 Buggy 2.2 1/8 4wd 1/8 scale high end 4wd race buggy for competition
purposes. New parts included Upright buggy 1/8 V2 (2) Wheelaxle buggy v2 (2)
Driveshaft buggy 98mm (2) Wheel-axle boot rubber (2) Antiroll bar front 2.3mm
and the kit continues with – plus 4 chassis – longer alu rear brace – longer
rear central shaft – hard coated shockcaps – aluminium 14 deg casterblocks The
kit includes car, clear body with mask, rear wing, decal and full color manual.

Specifications:

• Name: Serpent 811 Cobra Buggy 2.2
• Class: 1/8 scale 4wd buggy
• Type: kit-version, high end competition
• Wheelbase: 330mm
• Width: 305mm
• Weight: 3.300 grams ( race ready, depends on radio-gear and engine)
• Clutch: 4-shoe centrifugal, carbon shoes
• Differential: lightweight, small geardiffs , front, central and rear
• Brake: piston type with glassfibre disks
• S hocks: 16mm big bore
• Fueltank: 125ccm, with integrated bronze filter
• Gear-ratio: 4:3:1
• Included: Kit, body, wing, silicone oil, full color manual, decalsheet.
• Not included: Radio-gear, tyres-wheels, engine, pipe.

Features:

• Plus 4 chassis: the hard anodised chassis is 4mm longer in the rear, creating
  a more stable rear end, especially better on tracks with short bumps and rough
  surface. The great handling on smooth, flat surfaces remains !
• Longer alu rear brace: the longer alu brace also helps to make the rear
  end more stable. The shorter nylon or alu version can also still be fitted.
• Longer rear central shaft: to suit the longer chassis a longer rear central
  shaft is needed (which is actually the same as the one used in Cobra buggy
  1.0 )
• Hard coated shockcaps: the hardcoated aluminium shockcaps can withstand
  the rigors of crashes better
• Aluminium 14 deg casterblocks: The Cobra buggy has a lot of steering already
  which makes it turn very fast. The 14 degree caster blocks help to smoothen
  steering out a bit, still lot of steering , but easier, less direct, creating
  a more stable front end.

Chassisplate
4mm longer hard anodised chassisplate in 3mm 7075 T6 aluminium , with machined
pockets to create flex make lighter. Kick-up angle on front for stable landings.
Countersunk holes. Slots to locate the front and rear suspension mounts precisely.
Angled sides to increase stiffness. Laser engraved Cobra logo.

Bumper
Aligned with chassis kick-up for precise landings and to protect front suspension
holder and anti-roll bar.

Chassis stiffners
Aluminium longer rear stiffener, and composite front stiffener, to give extra stiffness,
but still allow some flex as needed.

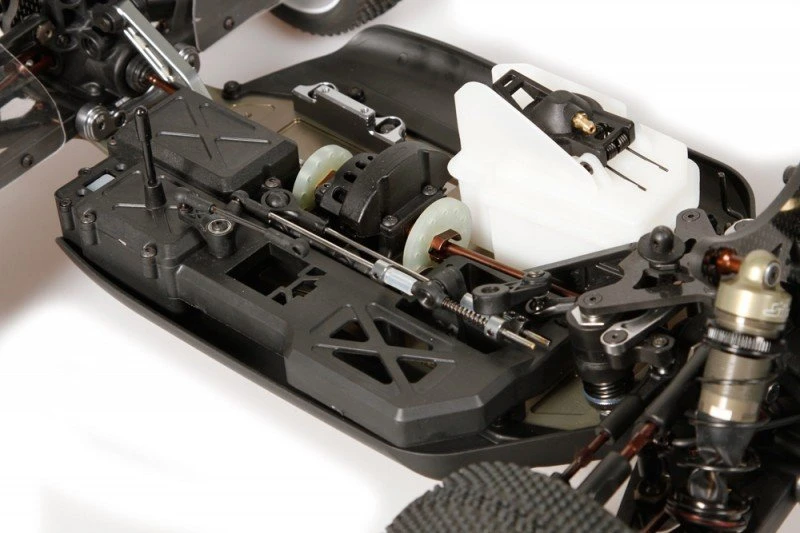

Central radio / servo mount
Composite radiobox which offers good space for the steering and throttle -servo,
the receiver and rx battery. The whole assembly including linkages can be taken
off easily and fast in one go, when cleaning the car, or doing maintenance. One
extra post is added close to the servo for stability.

Servo arms and linkages
The servo arms have a splined insert to have the right fit per brand. The linkages
run very clean and tight and are easy to access to modify settings.

Suspension brackets
Beautifully machined 7075 T6 suspension brackets in anodized, laser engraved.
Precision fit for the nylon roll center inserts and pivot balls / pins.

Steeringblocks assembly
Composite steeringblocks combined with 14 dgr black anodised aluminium C-hubs
for precise steering. Composite 10 and 12 deg c-hubs are also included. Spring
steel wheel-axles with large size bearings and larger inner with precision threaded
aluminum wheel-hubs with offset. Flanged and serrated wheel nuts.

Front suspension
Durable oversized lower suspension arms in strong composite nylon. On the lower
side the special shaped downstops screws are mounted. The lower shock-mounting
pins are secured with a small grubscrew from the bottom.

Front anti-roll bar
The ballraced front anti-roll bar system, consist of a spring steel bend wire,
which is guided through the diff-cases and runs in ballraced steel adapters. The
wire is linked to the lower suspension arm, with a captured adjustable threaded
pivotball, for very precise and low friction operation and easy tuning.

Shocktower and bodymounts front
4.5mm thick carbon shocktower with 5 upper positioning holes for the shocks and
and 6 holes for roll-center positions. 1 centrally located adjustable bodymount
, and 2 forward mounted adjustable bodymounts, all with flip-tops.

Angled steering system / servo saver
The bell cranks are angled to reduce the angle of difference between the total
caster and steering plane. Therefore you will have less bump steer and a truer
steering Ackermann through the entire range of suspension

Ackermann plates
With the design of the steering bell cranks when changing the Ackermann you will
not need to adjust your steering tie rods. You simply will only need to adjust
your end points on your radio.

Rear suspension arms
Durable longer oversized lower suspension arms in strong composite nylon. On the
lower side the special downstops screws are mounted. The lower shock-mounting
pins are secured with a small grubscrew from the bottom.

Mud-guards
Superlight polycarbonate mud guards mount to the new lower suspension arms,
and will keep dirt away from your anti-roll bars transmission and wheels.

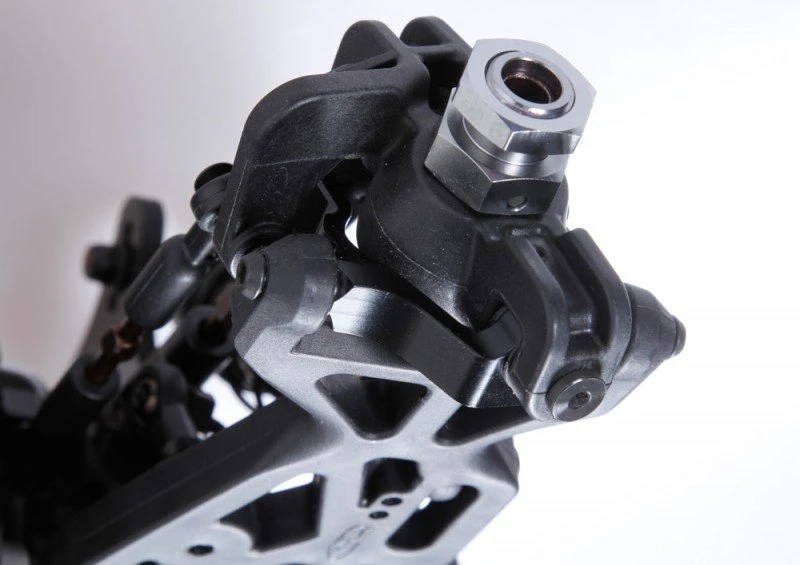

Rear uprights v2 assembly
Composite uprights with 3 upper roll-center positions. Strong steel track-rods
with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles
with large size bearings and larger inner ones with precision threaded aluminum
wheel-hubs with offset . Rubber dustcovers in the rear to protect the cvd system
and keep the lubrication inside. Flanged and serrated wheel nuts to guarantee
that you will not loose a wheel nut in a race.

Rear anti-roll bar
The ballraced front anti-roll bar system, consist of a spring steel bend wire,
which is guided through the diff-cases and runs in ballraced steel adaptors.
The wire is linked to the lower suspension arm, with a captured adjustable threaded
pivotball, for very precise and low friction operation.

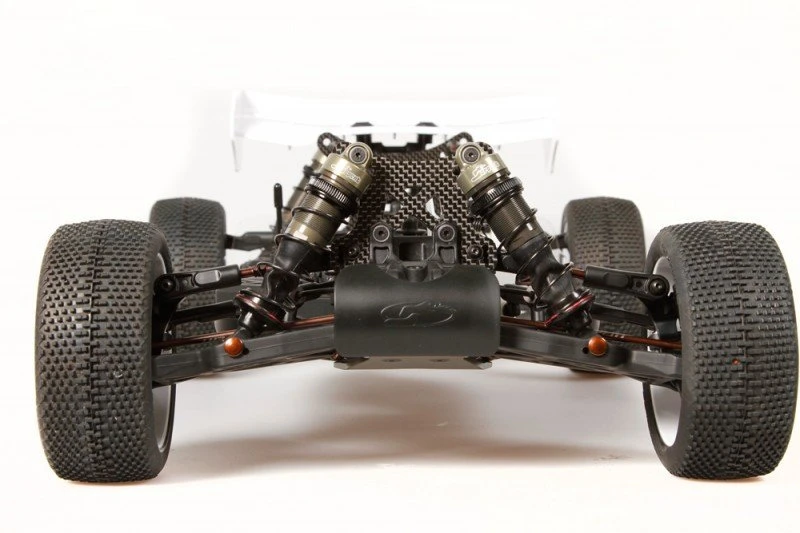

Shocktower rear
4.5mm thick carbon shocktower, integrated into the rear section for extra stiffness,
with 5 upper positioning holes for the shocks and 6 holes for roll-center positions.

Wingmount and bodymounts rear
Composite rear wing, with strong nylon adjustable rear bodymounts on wide body-support
bridge located far enough to the rear, to support the bodies in best way.

Captured pivot pins and balls and bolted hinge pins. All spring-steel hinge
pins are either captured or bolted in place and made in spring-steel quality.
This insures your chances to finish an hour long main event, while battling
for the lead. This relieves stress on the hinge pin when adjusting the kick
up, or anti squat. Your pin is free to rotate to any angle without binding.

Shockabsorbers big-bore 16mm
Hard Teflon coated threaded shockbodies with 4mm shock-rods. Hard anodized aluminium
screw on hard anodised shock-tops with Serpent laser engraving. Pre-load adjusters
with o-rings inside. Shocks use large diameter membranes and large diameter
o-rings and bushings to create a supersmooth and leak-proof package. Large diameter
pistons are held in place by a nut on the polished shock-rods tops. Open type
spring retainer to let dirt out easy. The shock-shafts are protected by rubber
boots.

RCM shock springs
Short type colorcoded shock springs are supplied for the 1st standard set-up
Springs are grinded flat top and bottom, and checked individually for tension
and length.

Compact geardifferentials
Very compact gear differentials with very smooth metal sintered gears, and steel
shaft. Perfect sealing case with special gasket and o-rings. Very light and
durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T
with connector running in 2 oversized bearings . Drive ratio 4.3:1. This drive
ratio will provide amazing acceleration combined with the low vehicle weight.
It is a sure win, to help improve fuel mileage

Front and rear cvd-sets
Both front and rear captured driveshafts are being used with CVD system. Durable
yet light spring steel engraved driveshafts with hard steel pins.

Spring steel transmission parts
The front and rear thin but strong spring steel cardan shafts connect the differentials

Throttle and brake lever ball cups
Helps provide consistent pulling on the brake lever or carburetor if you do
not have the linkage perfectly aligned.

Piston Braking system
Provides more stopping power than you could have ever imagined before with a
whole lot less servo power. Also is fully adjustable with 3 types of pistons,
solid, O ring type, spring type. In turn you can adjust your bias or braking
feel to your liking in more ways than ever before.

Fiber Glass disc brakes
Fiber Glass brake disks with oversized front disk.

Brake plate springs
Will keep the plates spread open to insure un-wanted dragging of the brake discs.

Racing clutch 4 – shoe
Allows you to mix and match shoe materials evenly in pairs. Also provides more
surface area contact to insure the engagement. 4 carbon shaped shoes are standard
( alu ones optional).

Coil exhaust wire and alu mount
Helps aid in the front to back movement of the pipe when chassis flex occurs.
Helps prevent damage to your exhaust gaskets.

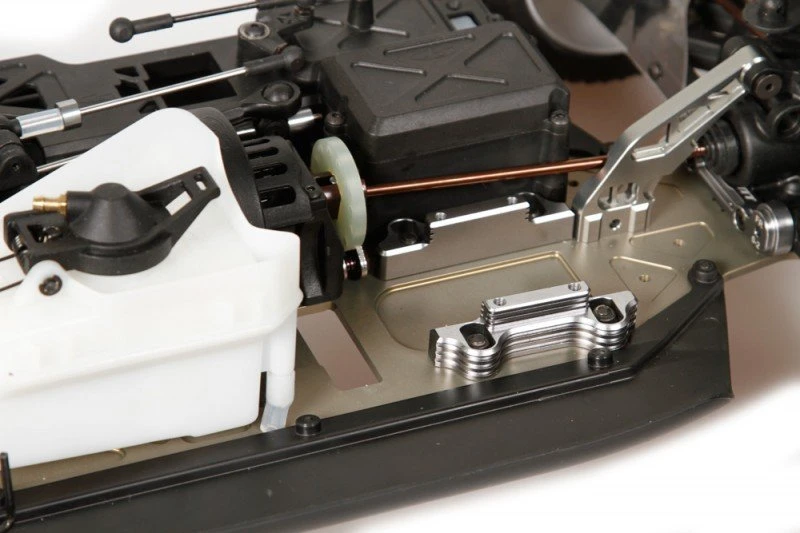

Engine mount
Machined 7075 T6 aluminium engine mount, with side cooling-fins.

Fueltank 125cc
Splash basin on tank top, self centering Fuel tank seal, The fuel tank seal
is angled to self guide its way into the bore of the tank. At the same time
will provide a seal on the chamfered and flat edges of the seal, providing consistent
engine performance from one pit stop to the next. Built in tank splash guard
which helps prevent fuel from splashing onto your air filter in the event of
an overly excited pit man.

Fueline and stoppers
Kit included topqualiity soft silicone fuelline to connect to tank, car and
pipe, and also includes small composite stoppers to close yr fuelline when taking
out tank, engine and or pipe.

Tank with swiveling nipple and floating clunk.
With the swiveling nipple you are able to adjust the angle at which you want
you fuel line to travel. At the same time the floating clunk helps when you
go upside down. The clunk by gravity will fall back into the fuel, utilizing
the flexibility of the silicone fuel tubing.

Low profile air filter
Centralized air filter design to minimize cab width and height. Flexible rubber
boot combined with strong nylon case to support the foam elements. Excellent
dense foam airfilter elements to keep your engines clean inside.

Body
Serpent cab forward Avenger body, with film and masking tape is included in
the kit.

Rear wing:
Low version strong rear white aero rear wing is included for great downforce
and straight line stability.

Oils and grease
The shock-oil, diff oil and some grease is supplied to meet the standard set-up.
