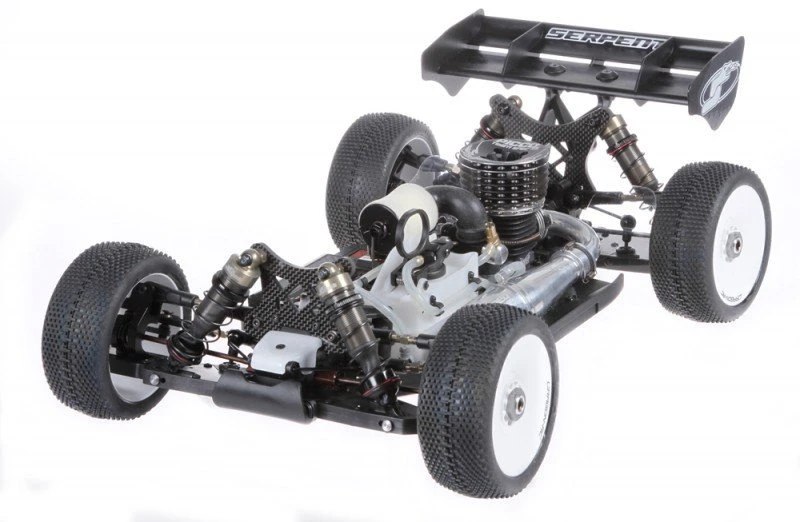

SER600017 Serpent Cobra SRX8 Buggy 1/8 GP

Cobra SRX8 buggy 1/8 GP High end racing buggy in 1/8 4wd version for gaspowered
engines. Main features include big bore shocks, 3 gear-diffs, double diskbrake,
race clutch, ballraced anti-roll bars, springsteel transmission parts and wheel
axles.

Specifications:

• name: Serpent SRX8 Cobra Buggy
• class: 1/8 scale 4wd buggy
• type: kit-version, high end competition
• wheelbase: 330mm
• width: 305mm
• weight: 3.300 grams ( race ready, depends on radio-gear and engine)
• clutch: 4-shoe centrifugal, carbon shoes
• differential: lightweight, 3 geardiffs
• brake: piston type with steel disks
• shocks: 16mm big bore with 3.5mm shafts
• fueltank: 125ccm, with integrated bronze filter
• gear-ratio: 4:3:1
• included: Kit, body, wing, silicone oils, full color manual-USB, decalsheets.

Features:

• Stunning standard equipment
• Cool Innovations
• Performance packed
• Made to last
• Ease of maintenance
• Great service and support

Stunning standard equipment
– Hardcoated coated chassis 7075 T6, laser engraved
– Steeringblocks alu 7075 T6, black coated, laser engraved
– C-hubs 15 dgr, alu 7075 T6, black coated, laser engraved
– Rear uprights, alu 7075 T6, black coated, laser engraved
– 4.5mm carbon fibre shocktowers front and rear
– Big-bore shocks with machined pistons and spacers, new supersmooth x-rings

– Hardcoated engraved shockcaps, 3.5mm rods and rubber sleeves.
– Front, central and rear geardifferentials
– 4-shoe racing clutch
– Durable wishbones ready for use with inserts ( moulded standard, carbon optional
)
– Steel diskbrake system with special pre-mounted brake-pads
– Coated steel integrated chassis skidplate in the rear
– Lightweight and strong hardcoated aluminum camber and tracksrods
– Straight rear wing and new Avenger style body
– Springsteel drive-train system with CVD and rubber protections boots
– Ballraced anti-roll bars front and rear with pivot system
– Supernice radiobox layout and fully integrated transponder -holder
– Decals for the radiobox caps
– Top-quality sealed bearing with seals

Cool Innovations
– The new Gear-differentials have a larger cases to allow for more oil inside,
and have a build in pressure compensating system. Both will create a more consistent
diff over the longer runs.
– Wishbones which allow mounting inserts both in the top as in the bottom of
the wishbones, which allows for many possible options to work with more or less
flex, using no inserts, moulded inserts, carbon inserts, or mixed inserts.
– Angled steering system for optimal Ackermann and reduced bumpsteer.

Performance packed
– Fully adjustable for caster, camber, toe-in, toe-out, roll-center, rideheight,
wheelbase, downstops, anti squat, kingpin angle, ackermann, the works !
– New geometry front and rear combined with new chassis shape and longer chassis
braces for more agile handling, more steering, more rear grip and improved balance.
– Angled steering system for optimal Ackermann, responsive steering and reduced
bumpsteer.
– Hardcoated shocks with new internals as per above specs.
– Race clutch with 4- carbon shoe system
– Effective airfilter system with new angled rubber connector and strong wireholder
– New areo pack with wider Avenger body and new straight wing for medium downforce.
Optional high downforce adjustable polycarbonate rear wing and a high downforce
body to be released soon too.

Made to last
– Hardcoated chassis with rear chassis skidplate
– Springsteel transmission parts and wheelaxles
– Aluminium steeringblocks, C-hubs,
– Dust boots for shocks and all transmission parts
– Special mix composites for super durable moulded parts
– Rear bodymount with rubber damped system
– Top quality greased, sealed bearings throughout
– Durable steering and servo-saver system, and aluminium Ackermann plate with
prepressed bearings.

Ease of maintenance
– Super easy front and rear differential access with 4 screws only
– Super easy access to the central differential and brakes

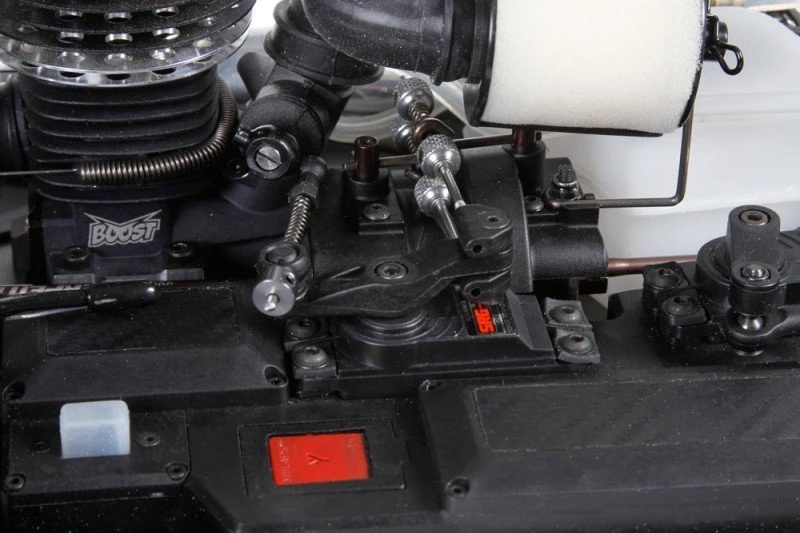

– Super easy lever system for the throttle and brake
– Super easy removal and re-assembly of engine, radiobox, tank, complete radiobox,
complete front and rear, complete center assembly
– Supernice new fueltank with screw-on type fueltube holders, insert-system
to reduce tankvolume , improved filter/clunk , improved fuelcap and spring.

Great info, service and support
– Car-kit includes USB stick with full color assembly in PDF with hotlinks to
webpages for easy spare parts selection ( printed manual version to follow).
– Serpent distributors and dealers are active in all parts of the rc racing
world, for information, service, support and supply
– Effective Kits, spares and optional supply
– Access to Serpent Website, TeamSerpent website, Serpent Facebook, Serpent
Facebook Groups ( per car), Serpent Twitter, Serpent Advanced Manuals
– Join in for Serpent Master Classes ( SMC) by Serpent team-drivers

Chassis
The chassis cnc machined from 3mm thick aerospace type 7075 T6 aluminium and
comes hard anodised for durability. The new shape is wider at the rear to help
the chassis roll and drag in rougher conditions. The kick-up angle is optimised
to fit with the mating parts. All holes in the chassis are countersunk.
The chassis features 2 large pockets, one is for the steel skid plate and one
for the central skidplate. There are 2 keyholes to center-fix the front and
rear suspension brackets in place. The pocket for the flywheel is large enough
to suit most commonly used starterwheels.
The sideguards mount to the bend chassis-sides from the inside with pre-threaded
holes in the chassis. The chassis offers good size surfaces for the downstops.

Rear skid plate
The cnc machined steel skid plate will protect the chassis at the rear end where
it wears most. Its easily replacable by a new one, with just 4 screws. Optional
ones in other materials to follow.

Steeringblocks
The steeringblocks are made of 7075 T6 aluminium and are anodised in black.
These steering blocks have been designed to allow you to change the Ackermann
at the steering spindle as well as give us the optimal scrub offset in conjuction
with the caster block. The bushings press into the blocks and reduce any unwanted
play.

Chassis stiffeners
Extra long chassis stiffeners, front and rear in composite material to offer
the right flex and prevents the chassis to bend too much. Easy locking fastening
system.

Side-guards
The composite sideguards help to keep debris out of the car, add rigidity to
the chassis and support the body. The sideguards are fixed to the chassis from
the top in pre-threaded holes in the chassis. This way the screws are protected
well and its easier to re-assembly when needed. The sideguards feature a pocket
on the outside to allow mounting some felcron tape to guide / fix the body.

Steering system
The dual axis steeringsystem with integrated servo saver is mounted under an
angle for less bumpsteer and a more direct steering feel. The axis are made
in light weight aluminium.
The new bellcrank accepts a bearing raced crossbar with zero slop. It designed
with the optimal Ackermann to increase the cars driveability.

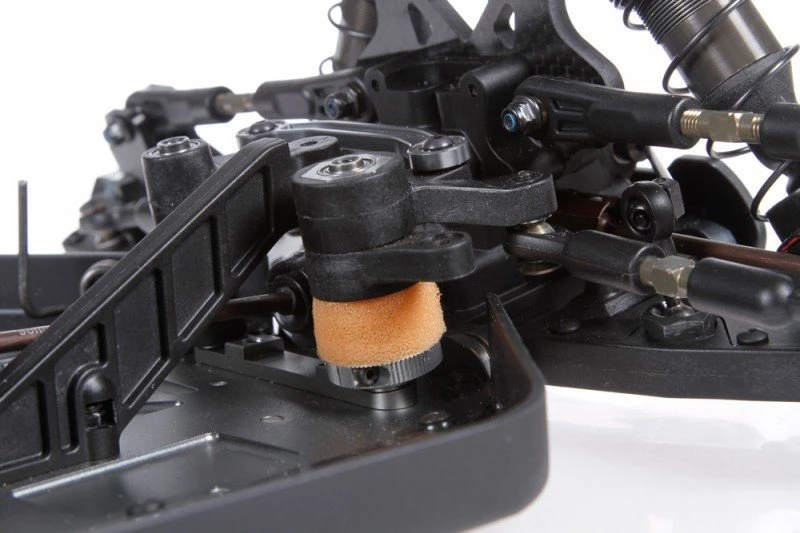

Servo saver
These new servo saver parts not only have the new Ackermann, but also have a
new internal servo saver design. It incorporates a helix in order to guarantee
the proper operating of the servo saver assembly. The servo saver spring is
protected by a dense foam cover, to keep debris out. The spring pre-tension
clamp nut can be locked in place to avoid turning loose.

Radio-tray
The easy to use and durable radiotray is made as low as possible but in such
way that all electronics fit in easy and well. Its features a seperate section
in the front for the battery pack, to have the heavier part more front. The
lid has 4 screws. Both servos fit in nicely with plenty servo-spacers to mount
them on the right height. The chassis below the servos has lower pockets to
allow mounting the servo?s very low. Ofcourse you need to think about chassisflex/torsion,
so dont mount them too low. The transponder, small or medium type, has a nice
flush mounted holder included. The receiver box also has 4 small screws for
easy and fast access. You can mount a standard switch, or use the supplied cover
in case you use another solution. 2 decals are included to cover the battery
and receiverbox.

Airfilter
High quality 2 piece dense foam for perfect filtering ( use topquality airfilter
oil only ). The holder allows for easy assembly. On the front ?top side the
mount is attached to the center support with a spring wire, fixed with a bodyclip.
The new rubber elbow allows for good airflow and features wide grooves to apply
tie-wraps.

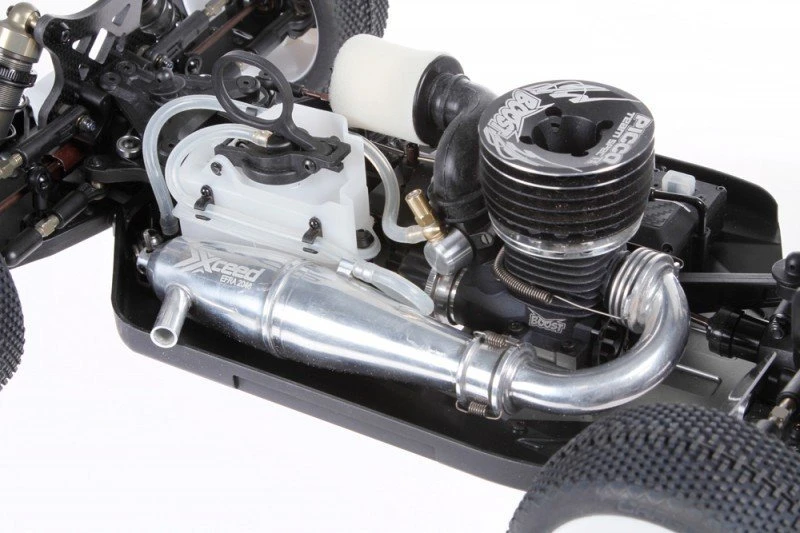

Fueltank
The125cc fuel tank is a complete new design. The spring and cap allow the pressure
to be more equal across the entire top of the cap, as well as the design of
the cap has no flex . The clunk has been enlarged so it will sit at the bottom
of the tank and will not pop up or float at the bottom. While the drain section
on the top has been improved where there is now a 4mm hole that will allow dirt
and debris to escape and not clog. The fuel-tube clips now mount to the tank
with screws so you wont have to worry about loosing them. The tank pull will
enable faster and more secure refuelling. The tank has been re positioned so
that its further away from the exhaust , which will prevent melting of the tank.
The kit includes purpose made insert to reduce the content if needed. The tank
mounts on 2 strong composite poles with rubber grommets for flexible mounting
and allow easy dis-assembly for checks and cleaning.

Driveshafts / transmission
The Serpent springsteel driveshaft are equal in length in front and rear and
1 of the central ones, which is easy for spares stocking.

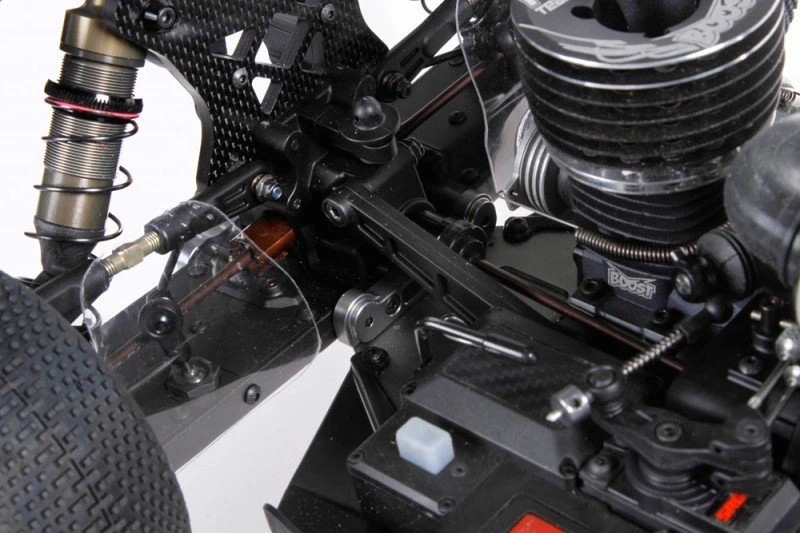

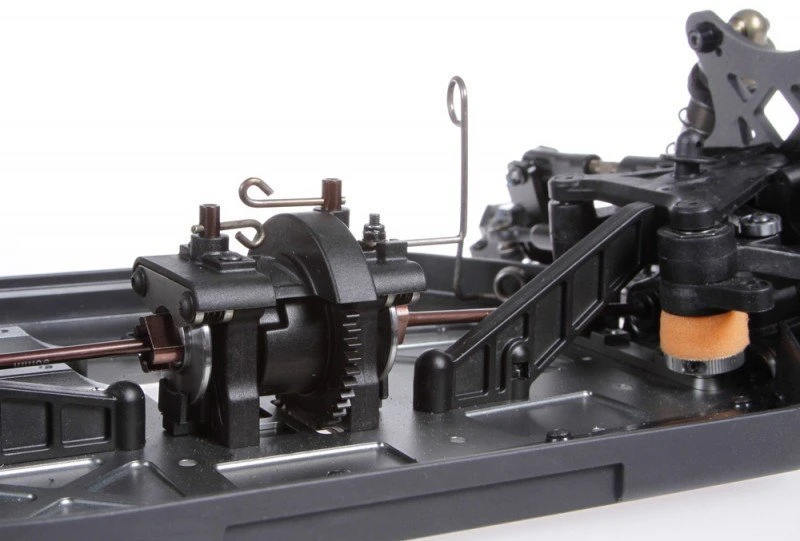

Center diff mount
Durable center mounts with large size bearings to mount the brake system and
center diferential. A moulded brakedisk guider is mounted on the brackets. The
whole system is made as low as possible for CG reasons. The sleek top-cover
keeps dirt out and guides the 2 brake cams.

Brakes
The SRX8 provides a conventional braking system with brake cams, steel disks
and steel pads with effective pre-glued brakepads .

Differential cases
The strong moulded differential cases which contain the differential and supports
the shocktowers.
The differential front and rear can be removed after taking out only 4 screws
and removing the anti-roll bars, super-easy !

Differentials
The diff housing has been completely re-designed to make way for evolution in
diff technology. The diff now has cavities designed specifically for closed
cell foam. This foam will compensate for expansion of the oil, which will allow
us to fill the diffs more full, keeping the gears fully engulfed in oil. The
cavity where the gears rest has also been redesigned so that there is not low
pressure zones outside of the gears. This will keep more oil on the gears even
when spinning at high rpms. This in turn will keep the diff more consistent
at low and high speeds as well as hot or cold .

Differential gears 28 / 14 / 44
The hardmetal 28T and 14T satellite gears have a larger overall diameter, to
make sure they are more in oil, making the diff more consistent , smoother and
stronger . The steel 44T ring gear is lighter and has a perfect match with the
new 28T gear.

Engine mount
Lightweight CNC machined engine mount in 7075 T6 aluminium with pre-threaded
holes and large contact area with chassis, comes grey anodised .

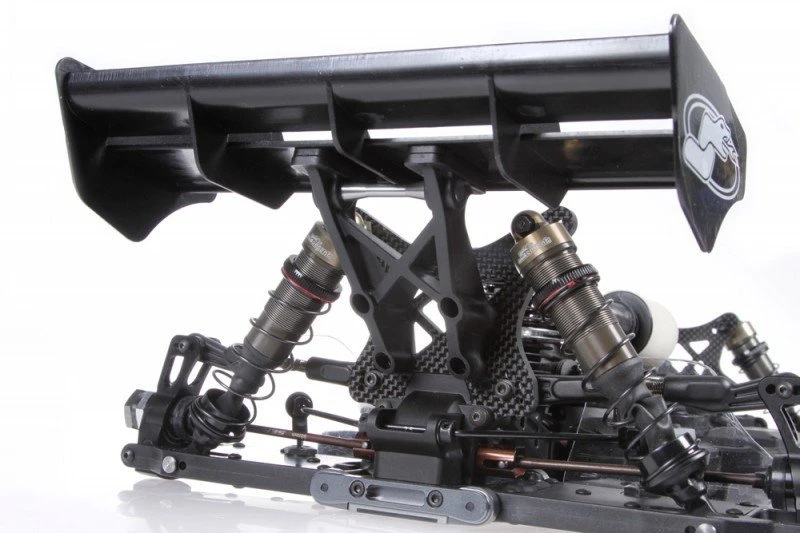

Wingholder rear
The rear wing holder is a super durable and light one piece moulded unit . The
set includes wing-spacers to put the wing under a range of angles.

Wheel axles / hex / boots
The durable Serpent springsteel wheelaxles are captured CVD style and have rubber
boots to protect the system and bearings against dirt and dust, so it will all
last longer. The wheel hex is a durable hard aluminium version which fits all
popular wheels very well. The pins in use are 3mm ones to increase durability.

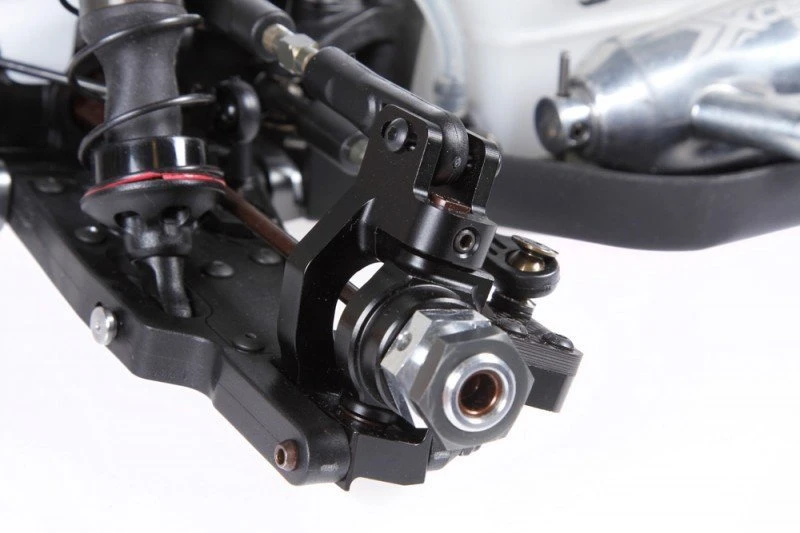

C-hubs
The new 15 dgr c-hubs are made in 7075 T6 alminium and are anodised in black.
These open style very durable units allow enough space to allow for the maximum
steering-angle and lalow space to mount the rubber dust protectors on the CVD
system. As optional we offer 13 and 17 dgr alu c-hubs too.

Uprights
The uprights are made of 7075 T6 aluminium with black anodizing and are universal
ones to be used left and right . The new uprights have the roll center adjustment
in them with small inserts . Set screws are used to tighten down on the hinge
pin to eliminate any unwanted play. In the bottom part 2 threaded holes are
made to allow for mounting the optional brass weights of 15 gr each for rough
conditions.

Wishbones
Very durable and long moulded wishbones front and rear. The composite is chosen
to have enough flex when needed. The design has pockets in the top and bottom
part of each arm to mount the standard moulded insert plates, or the optional
carbon fibre ones. In that way you can choose the right arm flex for each condition.
Even different or no inserts front or rear and mixing moulded and carbon inserts
is possible. The moulded inserts will stiffen the arms only a little, but keeps
them cleaner. The carbon ones, or mixed with moulded ones will stiffen the arms
a lot. Many options to try and apply.

Mudguards
The mudguards are offered in lightweight transparant polycarbonate and can be
left clear, be painted or skinned as prefered.

Suspension brackets
The suspension brackets are CNC machined in 7075 T6 aluminium and grey anodised.
They key into the chassis for perfect fit. The brackets have precision machined
pockets to use inserts to alter the set-up.

Anti-roll bars
The anti-roll bar system is the best around. Precison made wire runs in ballraced
adaptors on the front and rear diff case-plates. Superfree and stabile. The
wire connects to a balljoint which is fitted with a pivotbal to the wishbone.
The works !

Shocktowers
The front and rear shocktowers are durable 4.5mm carbon fibre units, CNC machined.

Clutch
The effective 4-carbon shoe race clutch is continued . It can be completely
pre-assembled and then be mounted to the engine. The system comes with a light
and small alumnium flywheel and durable springsteel 13T clutch-housing .

Shock springs
Race shock springs which are pre-selected and paired. The shocksprings are grinded
flat for perfect operation.

Shocks
The shocks are a completely overhauled design. Durable polished steel 3.5mm
rods are used with hard anodised caps and threaded shock-bodies. A new sealpack
consist of machined bushings and new x-rings and is kept in place with a small
inside clip. The shockpistons are machined delrin units for best performance.
The shocks in the kit are membrame style, with emulsion type hardcoated caps
and seals to be offered as option.

Wing rear black
The new flat type rear wing is a very effective medium downforce unit with large
sidewings. The decalsheet offers sidewing decals to apply.

Bodymounts
The rear body mount has a rubber cushion in it. It allows the body mount to
rotate front to rear in an impact or crash. This saves the body from breaking
or tearing. The front one is a fixed type and is easy accessible.

Ballbearings
Top quality shielded bearings with grease throughout the kit.

Body
A new Avenger style body is developed for the SRX8 with medium level downforce.
Cab-forward style body with small fin on the roof for stability. Nice flowing
sides with small rear upward fins for rear downforce. Enough space to allow
for airfilter, enggine head, carburetor and exhaust / exhaust adaptor. Top quality
polycarbonate. The body has nice trimlines for easy cutting. Same for the bodyholes.
A masking sheet is included to assist with paintjob preps.
