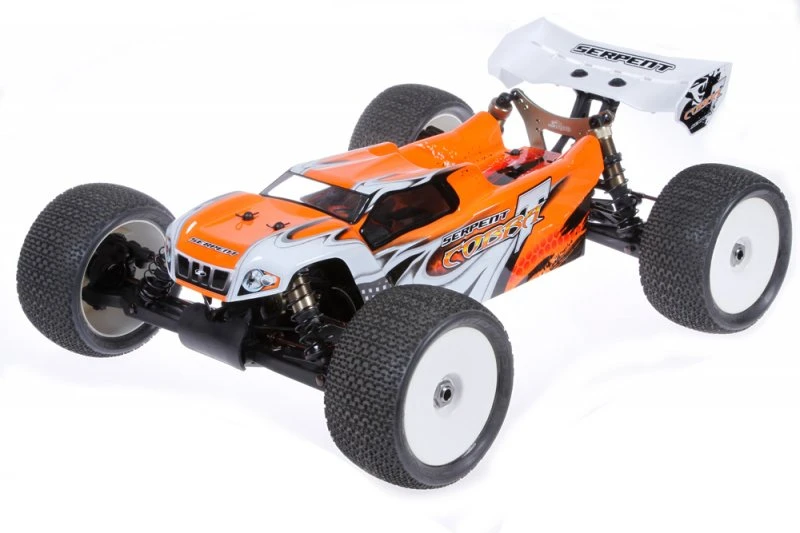

SER600039-O Serpent Serpent Cobra E-Truggy RTR Orange

The Serpent Cobra E-Truggy in RTR trim is an ideal basher type car that can take a lot of beating and its also a great package to start real racing ! Based on the Cobra E-Truggy it has the outright speed, great handling, reliability, rigidness and durability you need.

The RTR package is really dialed:
-factory assembled racing chassis
-prepainted and precut low type truggy body and large composite rear wing
-premounted truggy tyres/wheels/inserts
-pre-set 4S to 6S capable waterproof 150A speedo ( DragonRC)
-2000kv brushless longbody motor (DragonRC)
-Digital 2.4ghz transmitter (DragonRC)
-Metal gear servo 16kg ( DragonRC-Savox)
-3 oilfilled geardifferentials
-Big bore shocks with rubber dustboots and machined aluminium shocktowers
-Spring steel transmission parts and turnbuckles, front and rear cvd driveshafts
-Front and rear anti-roll bars
-Large battery-cases with easy felcron straps
-Machined aluminium chassisplate
-Fully ballraced
-Batteries for the car and transmitter are not included

The bodyshell is available in orange, red, green, blue and red, as well as a clear type.

Serpent offers a wide variety of optional parts for this car to further improve performance, lighter or for even nicer looks.

Car
Fully expert pre assembled and pre-set chassis and electronics.

Transmitter
DragonRc 2.4 GHz steeringwheel type transmitter with plenty settings and good range. Comes with small and light receiver.

Speedo
DragonRC waterproof speedcontroller with a massive 150A capacity to control the brushless motor and 4S or 6S battery power

Motor
DragonRC longbody 2000kV brushless motor with easy colorcoded connectors

Body
Prepainted and pre-cut low e-Truggy body, in 4 main colors orange, red, Green and Blue. ( also clear one available as optional)

Tyres
Premounted race ready tyres / wheels with soft compounds and pintype profile for incredible grip.

Chassis
Very narrow 3mm 7075T6 aluminium chassis, with machining on the upper face to make it lighter in strategic locations and to control flex. Kick-up front for proper landings. Angled side to increase cornering clearance, and secure and easy mounting side guards with 5 screws. Countersunk holes, pockets to position the suspension brackets. Overall the Truggy is designed to keep the weight very central and near to the centerline as possible, to create a great overall balance.

Side guards / battery trays
Durable shaped composite side guards / battery trays that follow the line of the chassis, and mount with 5 screws each side. Front and sides high enough to keep the dirt out. The guards/trays create a lot of stability. The batteries are mounted in longtudinal fashion, keeping the weight very low in the car. The battery trays features easy to use Serpent marked felcron TM straps to secure the batteries in place. Fits 2S and 3S batteries.

Motormount:
The motor is placed in the most optimal position in the car, keeping motor-forces and transmission parts / alignment in mind. Only one-screw is needed to secure the BL motor, in the nicely designed durable machined aluminium motormount. Space for additional motor-cooling available as needed. The space for the motor allows mounting all popular buggy and (monster)truggy motors.

Composite chassis braces
Allows the chassis to flex which helps improve bump handling. Front and rear.

Front bumper
Nicely rounded front bumper, same as on the Cobra buggy, to protect the front anti-roll bar, suspension brackets, and flows inline with kick-up chassis front for safe landings.

Front suspension
Very long and durable composite lower wishbones, combined with upper spring-steel trackrods. 2 lower shock-mount positions. Downstops can be used as needed. Pivotball type anti-roll bar rods.
.
Front steering / servo saver / angled
Innovative angled front steering assembly to reduce the angle of difference between the total caster and steering plane. Therefore you will have less bump steer and a truer steering Ackerman through the entire range of suspension.

Adjustable spring loaded servo-saver system with interchangeable Ackermann plates. With the design of the steering bell cranks when changing the Ackerman you will not need to adjust your steering tie rods. You simply will only need to adjust your end points on your radio.. Very easy to access and set-up.

The Inboard Bell crank keeps the lever and linkage inside the car. It will aid in the prevention of damage to the steering system. Zero scrub radiuses on steering knuckle, helps reduce the jacking effect created by your steering knuckle offset. It provides a more direct fell while keeping the cars chassis more level while turning.

The front roll center can be changed quickly by moving the steering knuckle shims to their appropriate locations.

Topped of with a strong composite top-plate.

Front steering-block / c-hubs
Very durable front steeringblock / C-hub assembly .

Drive-shafts
Long and lightweight spring steel units with pressed in steel pins, laser-engraved. Same length front and rear.

Wheel-axles / wheel-nut
Serpent spring steel threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts to keep the massive truggy wheels/tyres on track.

Captured universal joints
Guarantees you will finish a race without loosing a pin or set screw. All parts, axles and drive train components have capture pins

Front shocktower
Light, strong and durable machined 5mm aluminium units with 5 positions for shockangle.

Shock-set front and rear
16mm big bore shocks, with hard anodized precision threaded shock-bodies. Shockboots in silicone rubber to keep the dirt out . Chromed shock-shafts for supersmooth shockaction . The larger o rings provide less overall pressure and a better seal without dragging on the shock shaft.

Suspension brackets
The hinge-pins / hingepin balls are captured in durable composite suspension brackets . These capture the nylon roll-center inserts.

Anti-roll bar / anti-roll bar linkage with pivotball
The anti-roll bars front and rear are made of high quality special spring steel, and are captured on the diff-cased in ballbearing for perfect guidance and control.

Receiver box / servo mount / speedo mount
Composite one piece radiobox to securely mount servo� s, speedo and receiver. For optimum balance the light receiver fits the top-case easy, with a small opening to allow cable to protrude. The speedo seats very low on a plate just above the chassis, so short cables can be used to the motor. The servo is mounted in a vertical fashion.

Central diff
Optimised central gear-diff with 50T super-hard spur-gear . Very small, compact design to reduce rotating mass to the max.

Transmission shafts
Durable but light and thin Serpent spring steel, laser engraved shafts.

Front and rear diff
Optimised gear-diff with superhard spur-gears . Very small, compact design to reduce rotating mass to the max. Same version front and rear. Diff coupler in spring steel seated in large barings for durability.

Rear shocktower
Light, strong and durable machined 5mm aluminum unit with 5 positions for shockangle.

Rear uprights
Durable composite rear uprights with 3 camber positions

Suspension brackets rear
Durable composite units with eccentric inserts to change set-up.

Rear wing mount
The composite rear wing mount, allows to change the angle of the rear wing.

Rear wing
Two stage high down force wing, has two levels of angle, which also includes 2 fins. Helps improve down force and straight line capability

Bodymounts
Nylon bodymounts with wider seating for the body, securely fastened to the shocktowers.

Super Low profile e-Truck Body
Improves appearance as well as keeps the profile low. Comes precut and prepainted.

Decals
Applied to the body.

Oils / grease
Car is assembled with high quality silicone oils for the diffs and shocks and black grease. Threadlock applied where needed.

Manual
Full color manual showing the car, specs, tips and exploded views. The transmitter and speedo have small separate manuals included.

Box
Full color protective box to re-use for car transport or tyres.
