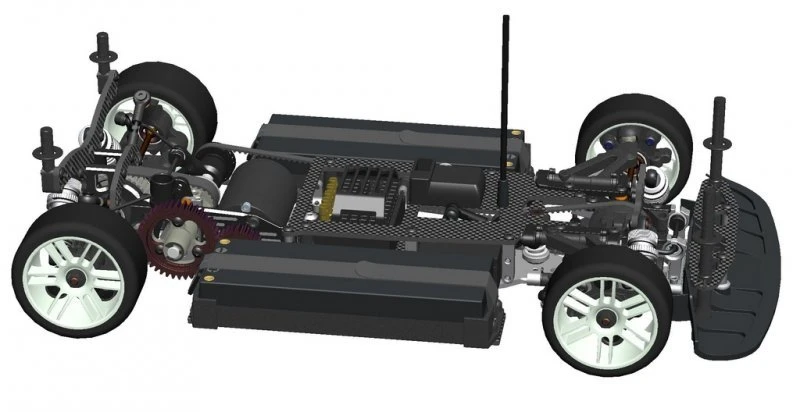

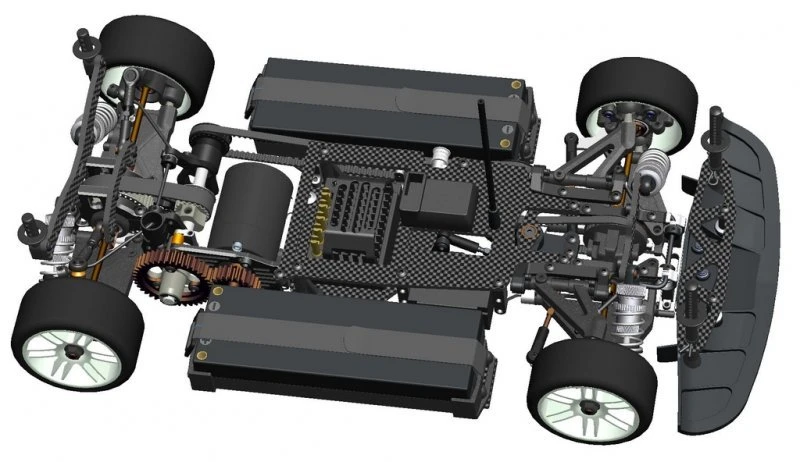

SER804013 Serpent Natrix 750-e 1/10 4wd EP

Front bumper and bodymount
The new front bumper has an improved aerodynamic effect and excellent protection. Medium or small foam bumper pad can still be fitted as optional. The upper carbon fibre body plate mounts to the front bumper with aluminum post and secures the front body posts

Chassis
Symmetrical chassis plate optimised flex and torsion, in 7075 T6 aluminium, anodised and laser engraved. Chamfered edges for more ground clearance when cornering and countersunk holes.

Low big bore shocks
Coated threaded shock bodies in high quality aluminium. Supersmooth x-ring / machined bushing package, to guide and seal the spring- steel piston rods. Precision machined pistons included in 3 types. Threaded pre-load shocknuts in aluminum with O-ring inside. Light but strong nylon spring-cups. Selected, matched and paired shock absorber springs with colour coding.

Shocktower front
Superlow 3.0mm carbon fibre shocktower with 3 positions for upper shock mounting. In the centre you can mount the 3rd body post as needed.

Steering blocks
Very strong composite steering blocks with 2 Ackermann positions, L and R use the same . The steering blocks feature inserts, which allow to change the kingpin inclination to a leading or trailing position. The steering blocks also allow use of the optional carbon fibre aero disks to be mounted for less flex and a more direct steering feel.

Uprights
Durable medium type composite uprights, which seat the wheel-axles bearings. The upright offers the mounting position for the steel camber-rod with L/R threading. Roll centre changes can be made on top of the upright with shims. The upright can be mounted with the optional carbon fibre aero disks for more rear grip and straight line stability.

Wheel axles and driveshaft
The durable spring steel wheel axles combined with spring steel driveshafts bring the power to the wheels. Wheels are fitted on high grade anodised aluminum wheel-hex adaptors and secured with flanged wheel nuts.

Pullies
Precision moulded super-true pullies, which feature holed sidewalls to let debris move out easier. Light and durabele.

Belts
Low friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.

Belt-tensioner
Ball raced belt-tensioner, machined from aluminium and can mount on top or below the topdeck.

Decals
The 750 includes one sheet with Serpent generic logos and one with 750 logos. Decals
are very thin material and come pre-cut.

• Power delivery starts with the batteries. We made room for serious power, 4S or 6S batteries. There is plenty of space for them, still they are very low in the car.

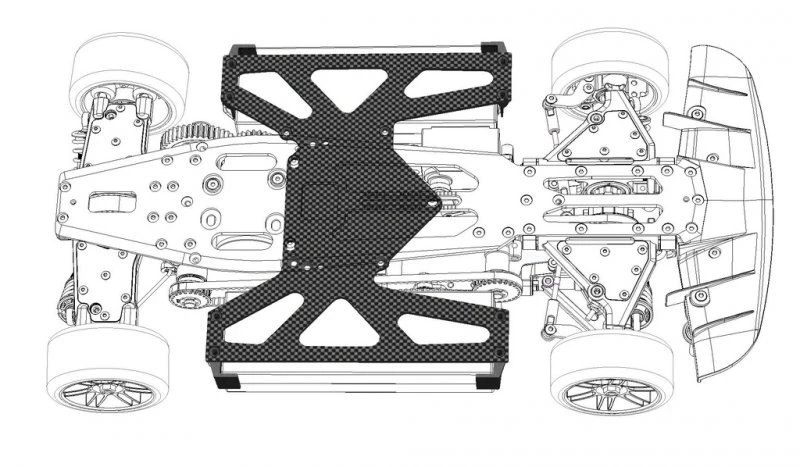

• The batteries are mounted on a 2.5mm thick carbon plate.
• There is also room for a 1-8 scale speedo, very popular choice in the dragster racing scene

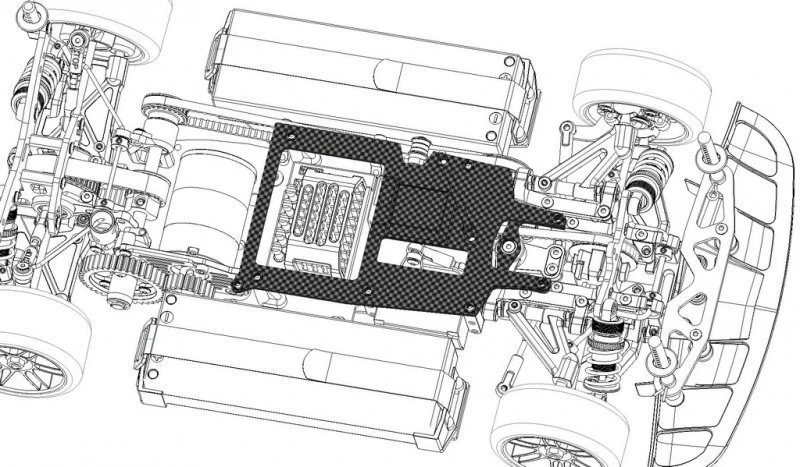

• The topdeck is creating enough stiffness for the whole chassis and carries the receiver, steering-servo and belt tensioner.

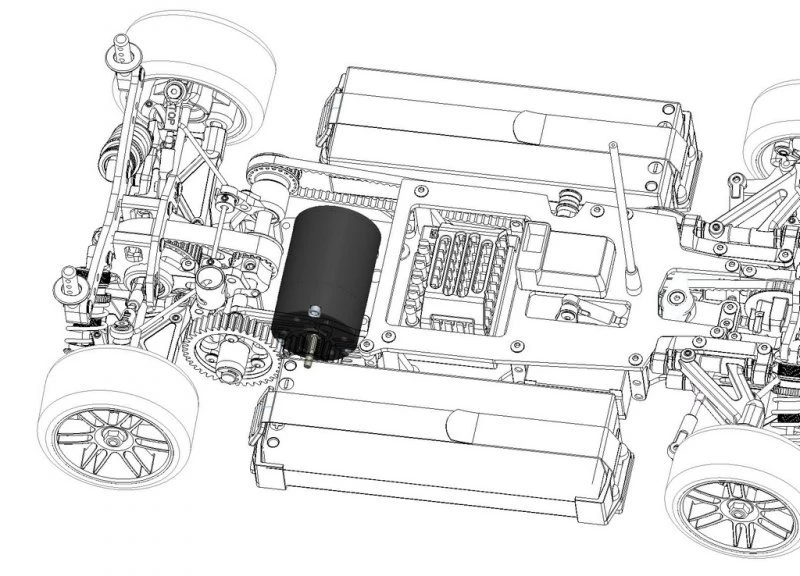

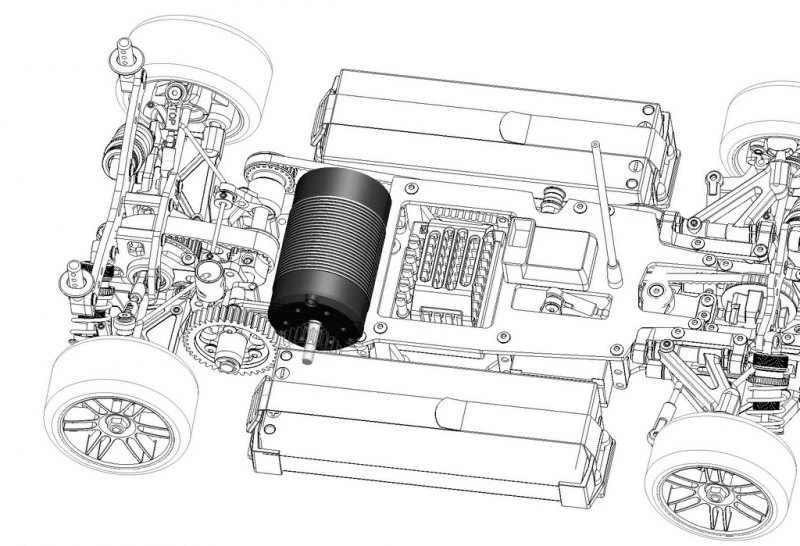

• We also took care of the motor, we made a mount for a 10th scale motor.
• And also we made a optional mount to fit a 8th scale motor.
  Even long custom made motors have enough room

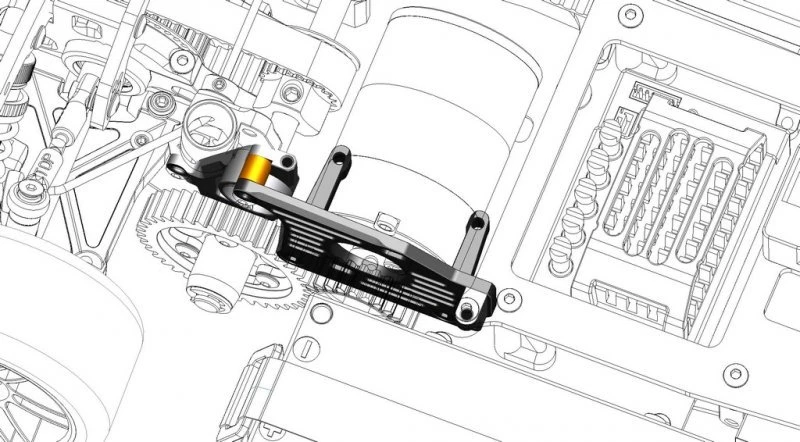

• To avoid unwanted torsional flex, we created a “power box” around the motor, making this part of the chassis very stiff.
  To achieve this, the motor mounting plate is connected to the bearing-block of the spur gear shaft, to the chassis and to the topdeck

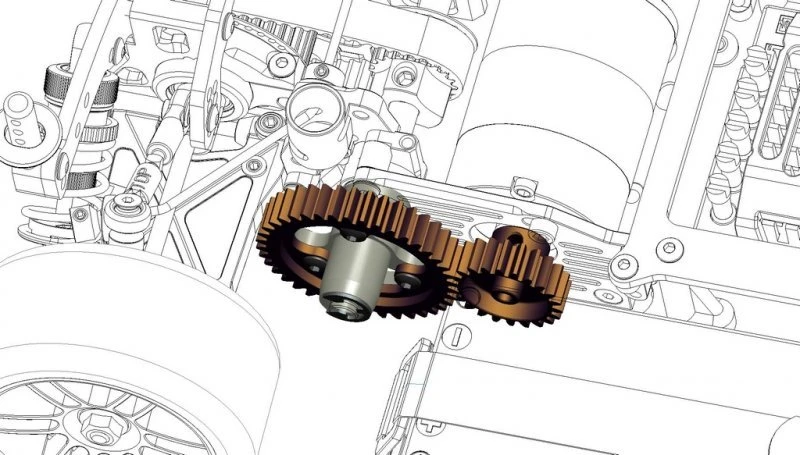

• Power is then transmitted further with unbreakable, module 1 steel gears.

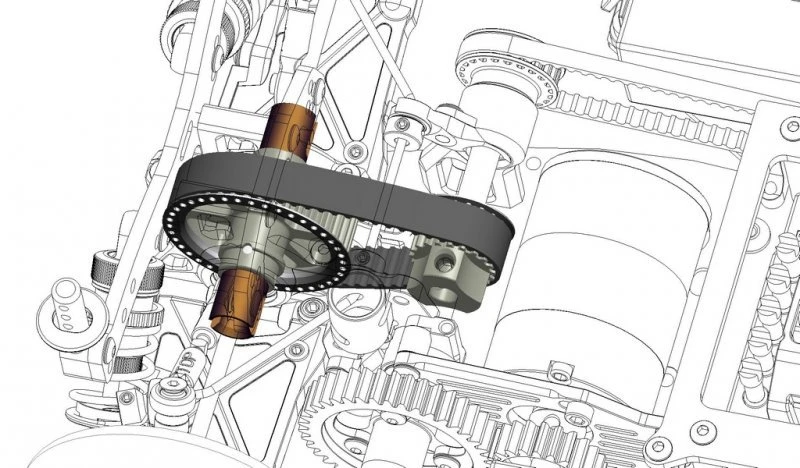

• Further down we changed to a super wide, 9mm rear belt. The power then goes through a solid rear axle, especially suited for dragster racing

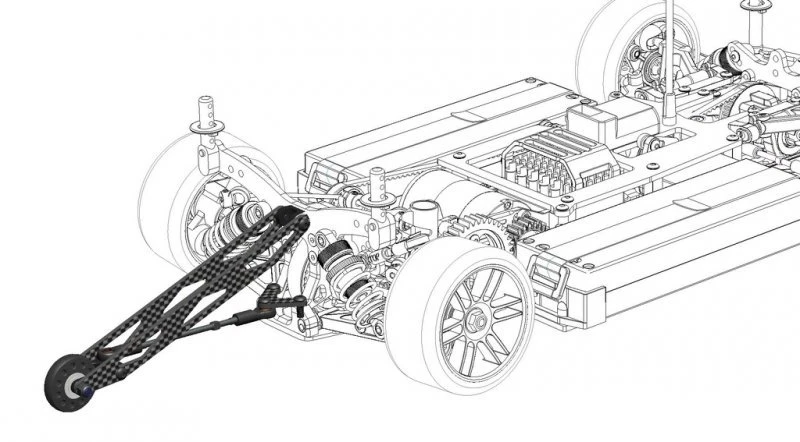

• For the dragster lovers we also offer a wheelie bar as an option.
• Designed by World and European Champion Michael Salven
