SH-0254 Savox High Torque Micro Digital Servo

• This is the Savox – SH-0254 High Torque Micro Digital
  Servo

Features:

• Over-spec refined design out performs ordinary micro
  size servo.
• The metal case design looks good and allows for cooler
  and smoother operating temps.
• The metal gears form a solid framework for precise controls
  and operation.
• Strict production and quality control of plastic components
• Our servos are totally green – from materials to production,
  these servos are environmentally friendly.
• Ideal for CCPM and Rudder on 450 class heli’s and Park
  Flyer Airplanes.

Technical Specs:

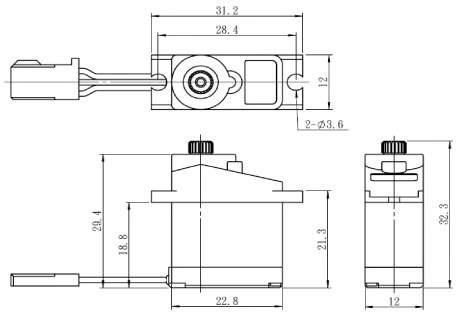

• Dimensions(mm): 22.8X12.0X29.4
• Weight(g): 15.8
• Speed(@4.8V sec/60): .16
• Torque(@4.8V oz-in): 43.1
• Speed(@6.0V sec/60): .13
• Torque(@6.0V oz-in): 54.2
• Gear: Metal & Plastic
• Bearing: 1BB
• Case: Aluminum
• Running current (at no load): 180 mA @ 4.8V
• Running current (at no load): 240 mA @ 6.0V
• Stall current (at locked): 1200 mA @ 4.8V
• Stall current (at locked): 1400 mA @ 6.0V
• Idle current (at stopped): 5 mA @ 4.8V
• Idle current (at stopped): 5 mA @ 6.0V
• Limit angle: 220 degree +- 10 degree
• Connector wire gauge: # 26 AWG
• Connector wire length: 250 +- 5 mm
• Horn gear spline: 21T
• Control system: Pulse width modification
• Amplifier type: Digital Controller
• Operating Travel: 90 degree (when1000->2000 usec)
• Neutral position: 1500 usec
• Dead band width: 5 usec
• Rotating direction: Clockwise (when1500->2000 usec)
• Pulse width range: 750->2250 usec
• Maximum travel: Approx 145 degree (when750->2250 usec)
