SH-0350 Savox Micro Digital Servo

•
  This is the Savox – SH-0350 Micro Digital Servo

Features:

• Over-spec refined design out performs ordinary micro size servo.
• The metal case design looks awesome and allows for cooler and smoother operating
  temps.
• Strict production and quality control of plastic components.
• Our servos are totally green – from materials to production, these servos
  are environmentally friendly.
• Ideal for 250/450 class heli’s and park flyer airplanes.

Technical Specs:

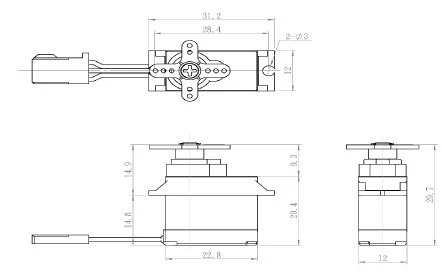

• Dimensions(mm): 22.8X12.0X25.4
• Weight(g): 12.3
• Speed(@4.8V sec/60): .21
• Torque(@4.8V oz-in): 30.6
• Speed(@6.0V sec/60): .16
• Torque(@6.0V oz-in): 36.1
• Gear: Industrial Plastic
• Bearing: 1BB
• Case: Aluminum
• Running current (at no load): 150 mA @ 4.8V
• Running current (at no load): 180 mA @ 6.0V
• Stall current (at locked): 1000 mA @ 4.8V
• Stall current (at locked): 1200 mA @ 6.0V
• Idle current (at stopped): 5 mA @ 4.8V
• Idle current (at stopped): 5 mA @ 6.0V
• Limit angle: 220 degree +- 10 degree
• Connector wire gauge: # 26 AWG
• Connector wire length: 250 +- 5 mm
• Horn gear spline: 21T
• Control system: Pulse width modification
• Amplifier type: Digital Controller
• Operating Travel: 44 degree (when1500->2000 usec)
• Neutral position: 1500 usec
• Dead band width: 5 usec
• Rotating direction: Clockwise (when1500->2000 usec)
• Pulse width range: 700->2300 usec
• Maximum travel: Approx 150 degree (when700->2300 usec)
