SH-1357 Savox Super Speed Mini Digital Servo

•
  This is the Savox – SH-1357 Super Speed Mini Digital Servo

Features:

• Light weight construction means less power consumption
• The coreless motor brings output performance to new levels and ensures smoother,
  faster, and more efficient operation.
• The metal case design not only looks awesome but also allows for cooler
  and smoother operating temps.
• Our servos are totally green – from materials to production, these servos
  are environmentally friendly.
• Ideal as a rudder servo on 450 class helis, CCPM servo on 500 class helis,
  and steering for 1/12th scale surface vehicles.

Technical Specs:

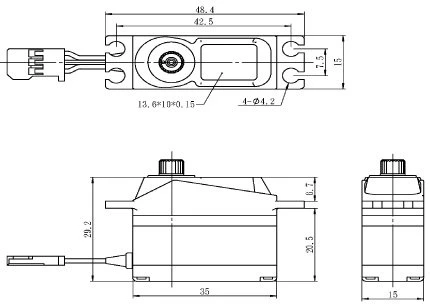

• Dimensions(mm): 35.0X15.0X29.2
• Weight(g): 26.0
• Speed(@4.8V sec/60): .09
• Torque(@4.8V oz-in): 26.4
• Speed(@6.0V sec/60): .07
• Torque(@6.0V oz-in): 34.7
• Gear: Industrial Plastic
• Bearing: 2BB
• Case: Aluminum
• Running current (at no load): 80 mA @ 4.8V
• Running current (at no load): 100 mA @ 6.0V
• Stall current (at locked): 800 mA @ 4.8V
• Stall current (at locked): 1000 mA @ 6.0V
• Idle current (at stopped): 6 mA @ 4.8V
• Idle current (at stopped): 6 mA @ 6.0V
• Limit angle: 210 degree+-10 degree
• Connector wire gauge: 26 AWG
• Connector wire length: 250 +- 5 mm
• Horn gear spline: 25T
• Control system: Pulse width modification
• Amplifier type: Digital Controller
• Operating Travel: 110 degree (when1000->2000 usec)
• Neutral position: 1500 usec
• Dead band width: 5 usec
• Rotating direction: Counterclockwise (when1500->2000 usec)
• Pulse width range: 800 -> 2200 usec
• Maximum travel: Approx 154 degree(when800u->2200 usec)
