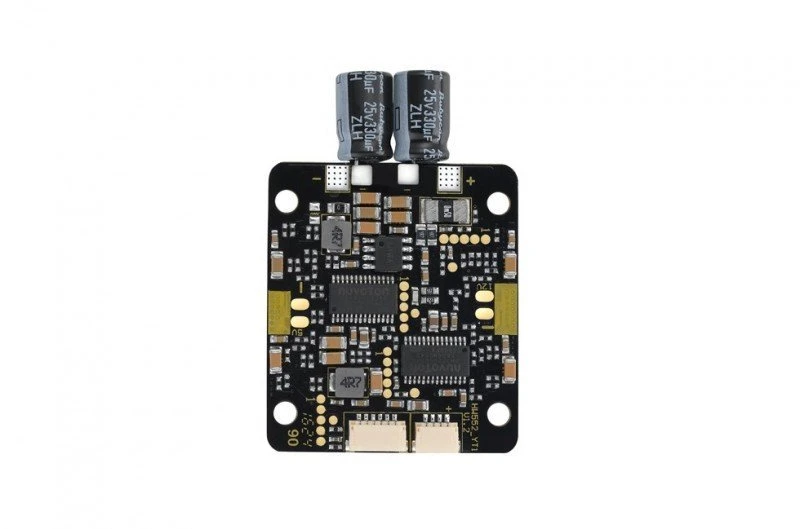

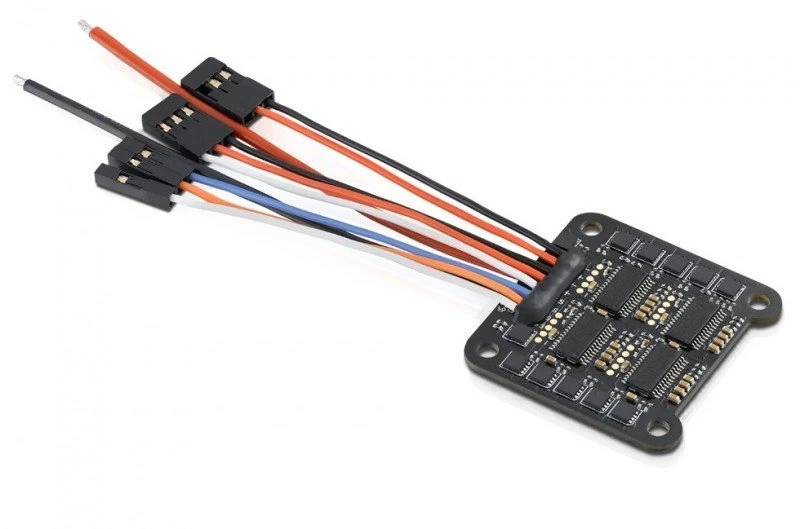

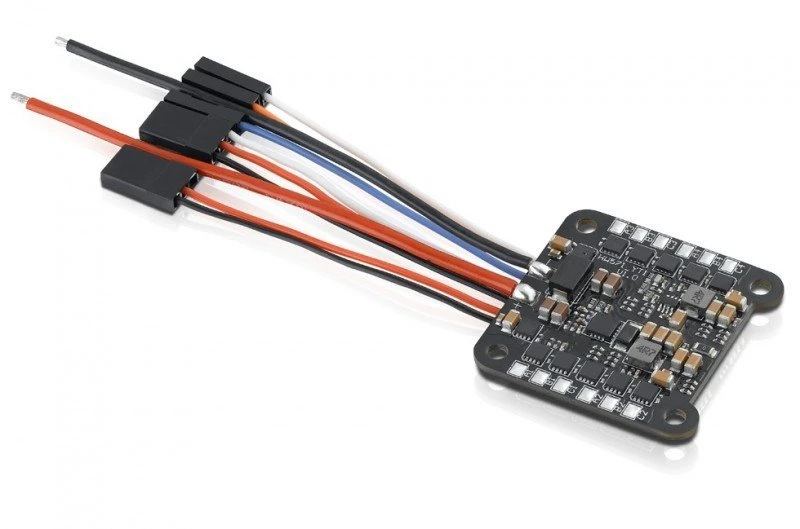

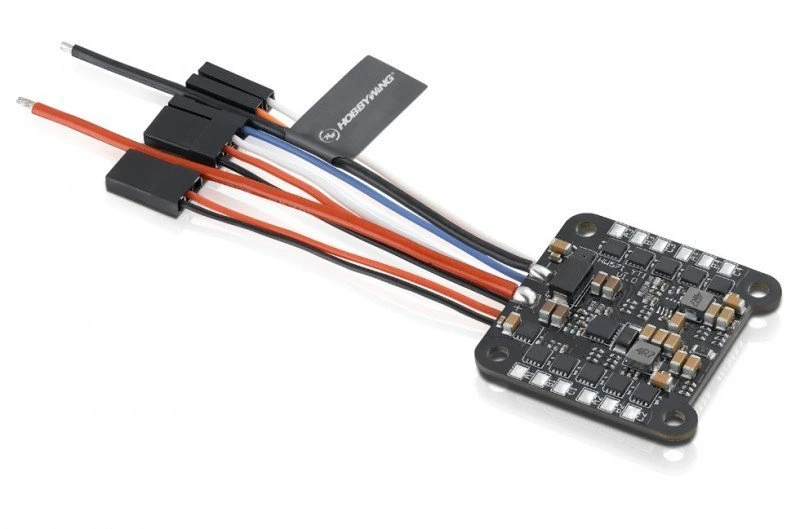

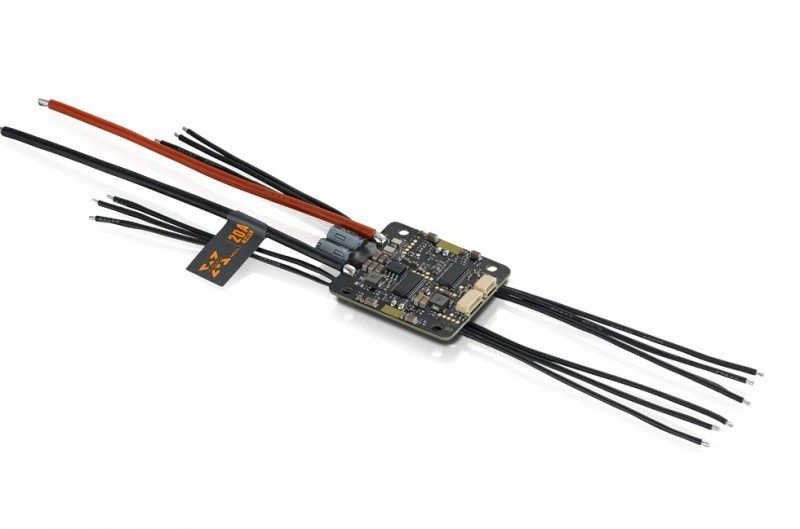

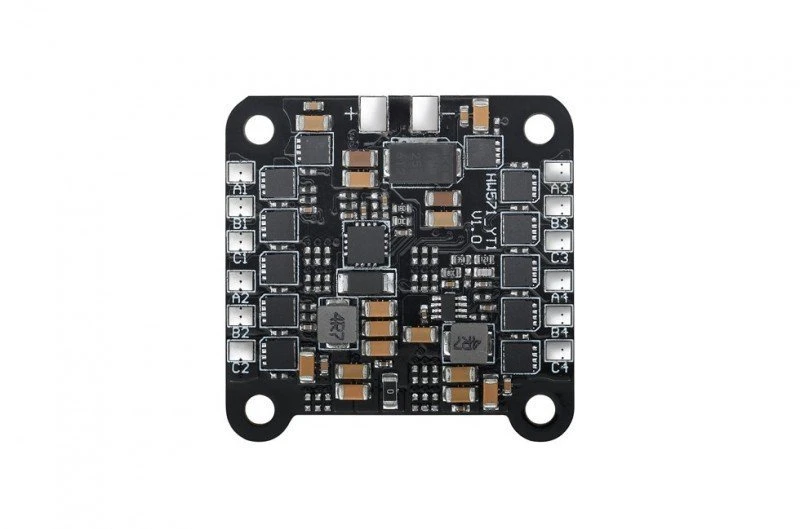

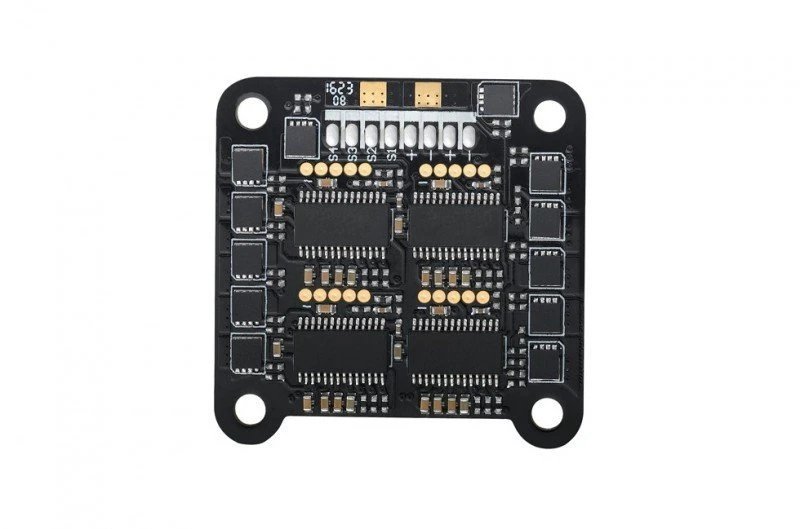

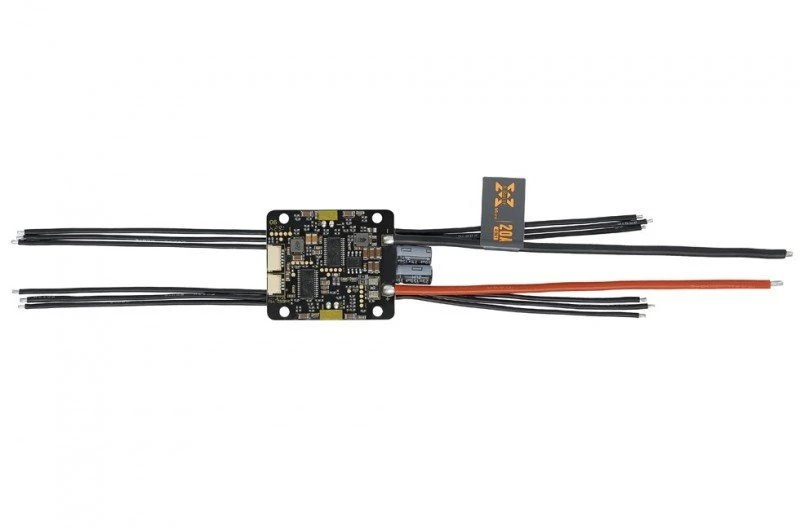

XRotor HOBBYWING 12A 4IN1 Micro – 30901041

Highly Integrated

This XRotor 4IN1 Micro ESC not only includes 4 high-performance 20A ESCs,
1 built-in BEC, but also output ports for powering peripherals like FC, camera,
and a port for FC checking current and voltage in real time. The highly integrated
structure makes the installation and wiring simple and clean.

Direction Reversal via TX

Rotation direction of every motor can be set via transmitter.
This saves the trouble of re-soldering/re-connecting after connected/soldered motors to
the ESC freely and found motor runs in reverse.

Quality Components

The use of high performance 32-bit ARM processors
(with the operating frequency of up to 48MHz),
built-in drive ICs, imported quality MOSFETs,
3-ounce copper and 6 layers of PCBs guarantees less heat,
higher efficiency and rapider response.

Oneshot125, Oneshot42 & Multishot Modes Ready!

This Xrotor 20A 4IN1 Micro ESC not only supports
regular throttle signals (with the frequency of up to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with the real-time frequency of up to 3.8KHz),
but also Oneshot42 (42-81μs) and Multishot (2-25μs) super
high speed throttle signals. All this makes communication
between FC and ESC more agile, throttle linearity smoother,
and throttle response rapider.

DEO Technology/Active Freewheeling

The DEO (Driving Efficiency Optimization) technology
implemented in the ESC has multiple advantages:
● Active braking. When reducing the throttle amount, the motor will
decelerate very quickly. This feature enables pilots to more easily
perform all maneuvers like sharp turns, altitude changes,
and sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation.

Motor Lock-up Protection

This XRotor 20A 4IN1 Micro ESC cuts off its output to motor immediately
when it detects the motor shaft is locked up.

Splash-proof

The whole circuit board and all the components on
it have gone through nano-coating treatment;
this makes the XRotor 20A 4in1 Micro ESC splash-proof.

Specifications

• Cont./Peak Current : 12A×4/18A×4
• LiPo Cells : 1-4S LiPo
• BEC Output : 5V,1A

Wires & Connectors

• Output Wires : solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : HW Special Program for FPVs
• ESC Programming : Supported
• Stick Programming : Transmitter
• DEO : Supported
• Throttle Range Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• Timing : Not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 38.1×37.9×5.3mm
• Weight : 8g

Applications

• 150mm FPVs
