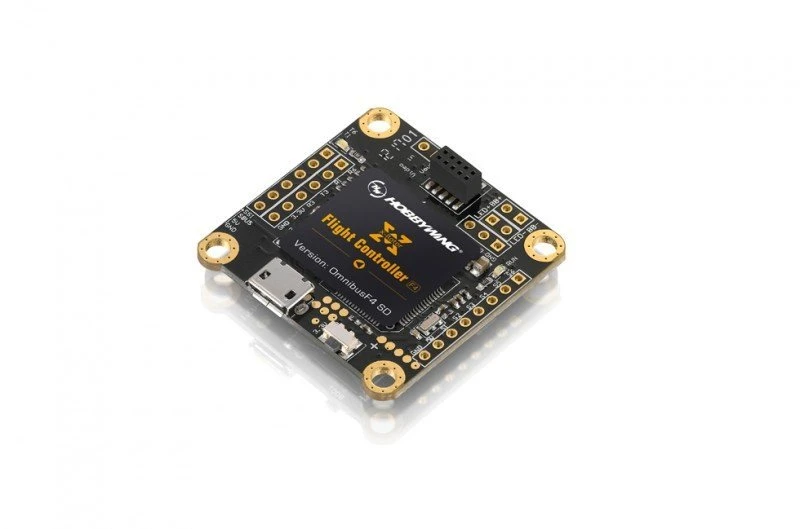

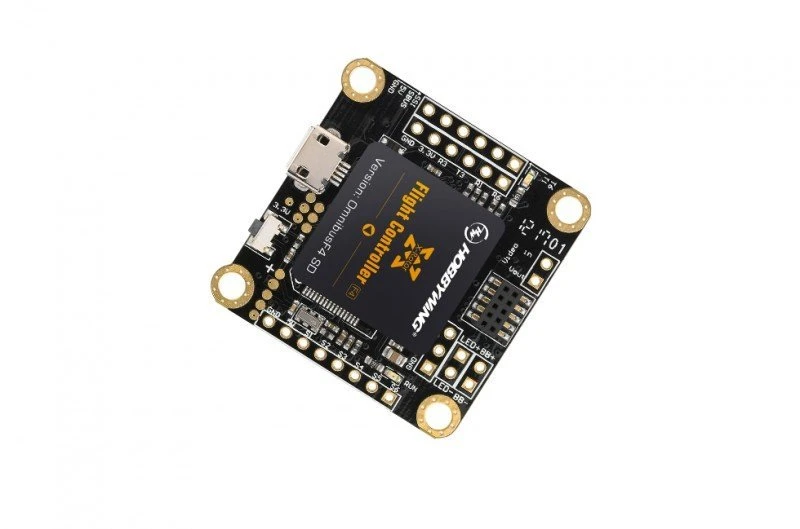

XRotor HOBBYWING Flight Controller F4 – 31001000

Super-high Running Frequency

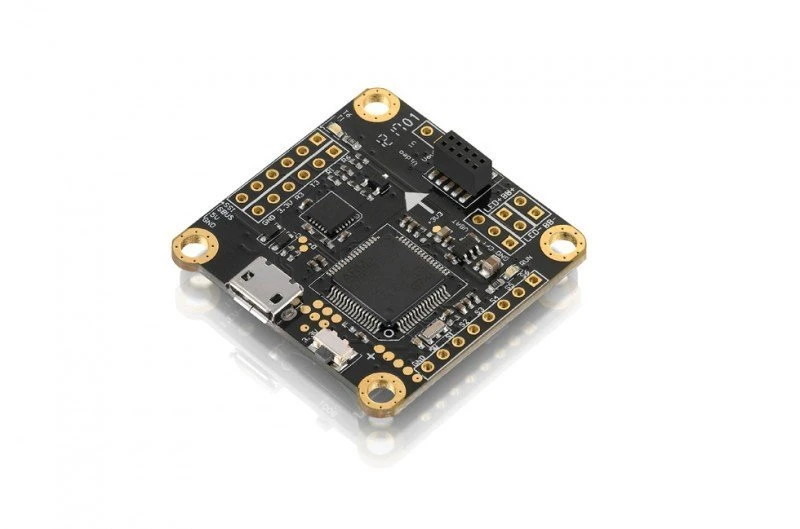

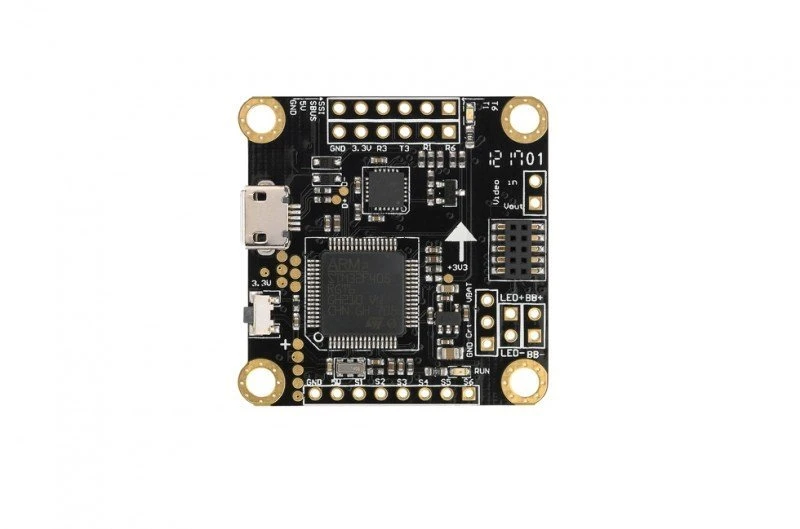

The STM32F405 MCU which features the powerful computing capability and super-high
running frequency allows the FC to run the PID and gyro with higher frequency.

DShot 150/300/600/1200,
Oneshot125, Oneshot42,
Multishot Modes Supported

Besides the latest Dshot 150/300/600/1200 mode, the FC
also supports the regular PWM mode, Oneshot125 mode,
Oneshot42 mode and Multishot mode.

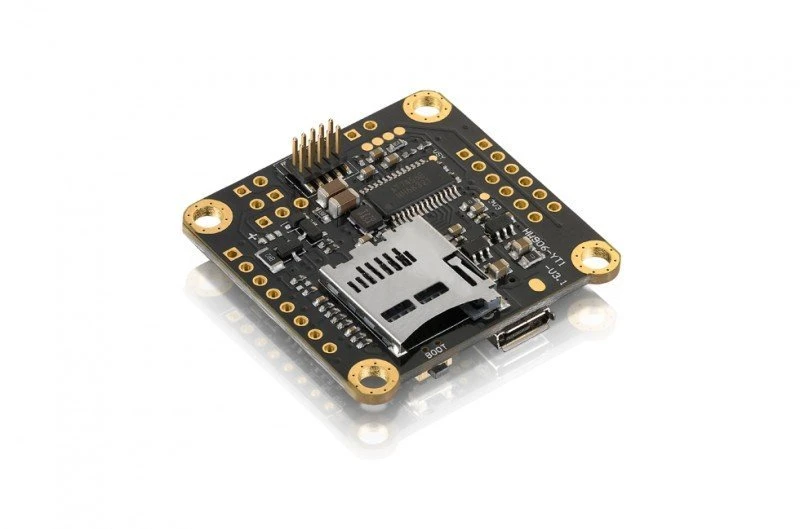

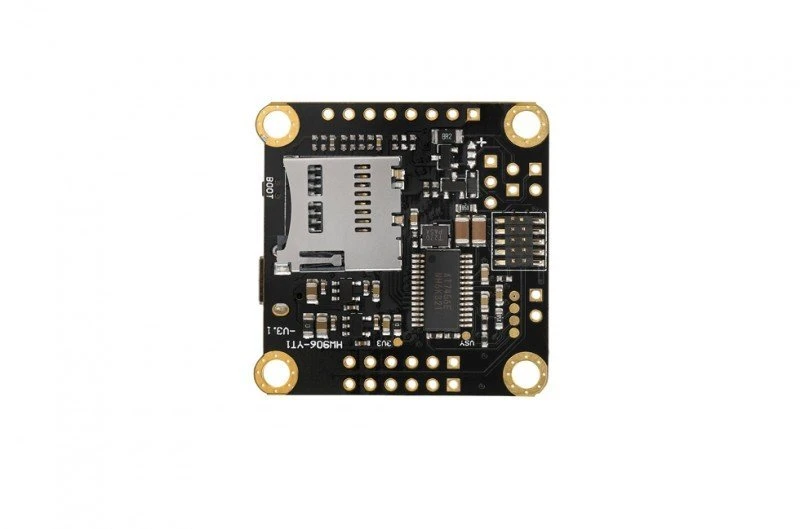

TF-card Insertion Supported

A TF-card can be inserted into the FC to record and save more flight data,
which allows users to adjust their aircraft easily.

Onboard OSD Microchip

Onboard OSD microchip allows users to
easily adjust various (OSD) parameters via
the Betaflight/Cleanflight software.

BetaFlight/Cleanflight Firmware Ready

The FC which supports Betaflight/Cleanflight firmware & allows parameter adjustment via Betaflight /Cleanflight software is more applicable to FPV flying & racing.

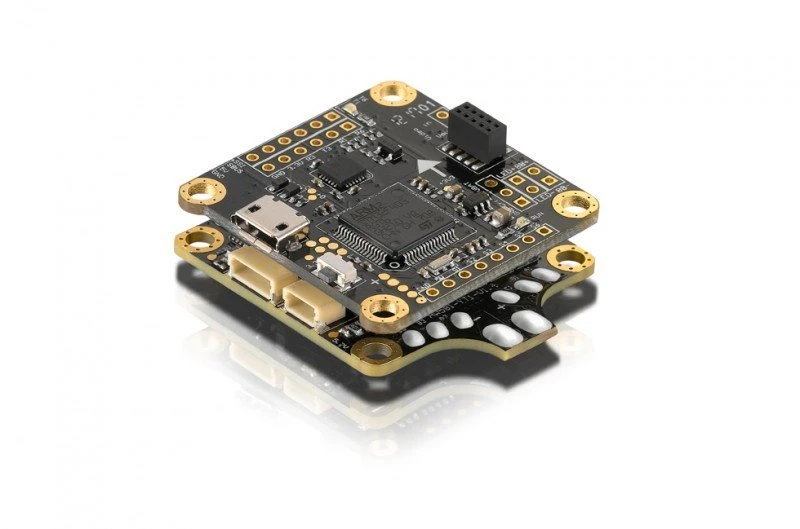

Compatible(with the Hobbywing 4IN1 ESC&VTX)

It’s easy to wire and install when pairing the FC with a Hobbywing 4-in-1 tower ESC &
a HOBBYWING VTX (Video Transmitter).

Product Specification

---

Basic Features

• Compatible with (Multirotors) : Quadcopters, hexacopters
• Firmware : OMNIBUSF4SD
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• TF-card : Supported (Maximum: 32g)
• USB Port : MicroUSB

Size & Weight

• Size : 35*35mm
• Weight : 6g
