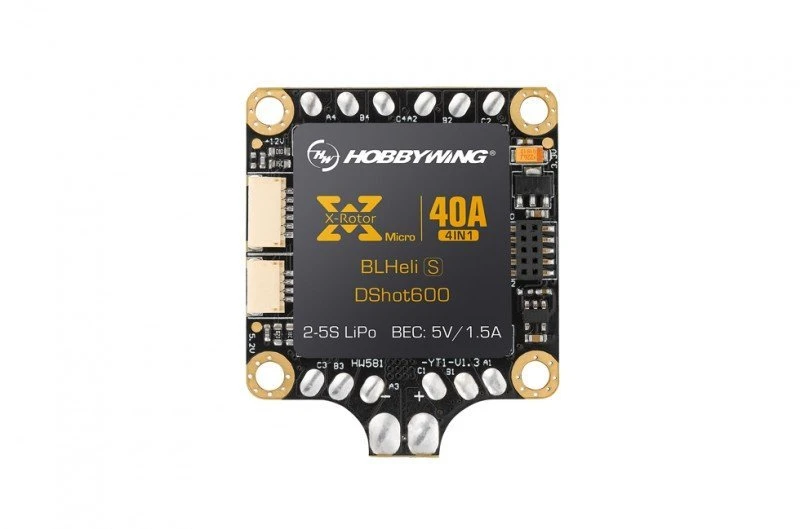

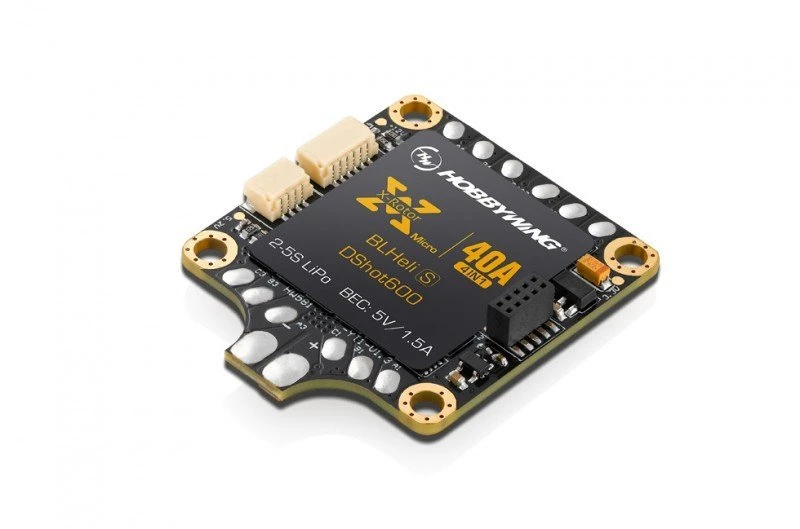

XRotor HOBBYWING Micro 40A 4in1 BLHeli-S DShot600 – 30901076

Highly Integrated & Compact

The 4-in-1 ESC not only includes 4 high-performance 40A ESCs, 1 built-in BEC,
but also an Amp/Volt monitoring port which allows FC to monitor the volt & amp
in real time (on condition that the FC supports this function); it’s as small as a
FC for FPV(s) and easy for installation and wiring. With the remarkably small
size, it’s a perfect match for competition FPV(s).

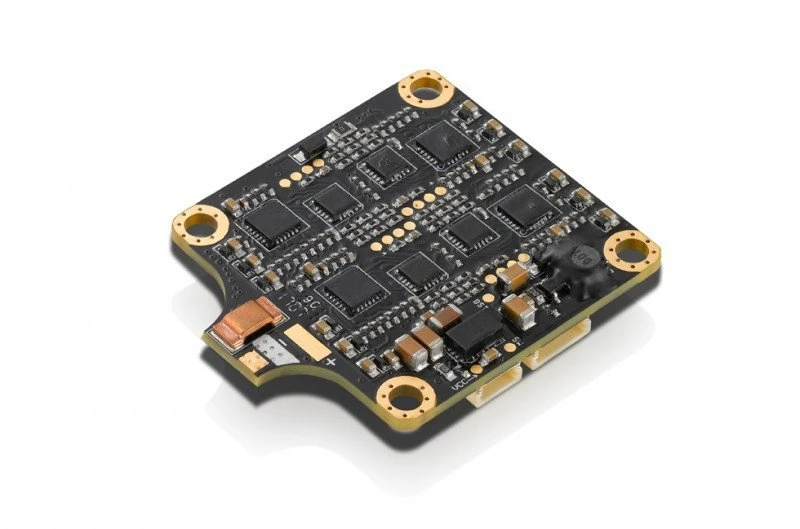

High-quality Components

The use of EMF8BB21F16G MCUs with the operating frequency of up to
48MHz, imported high quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 layers of PCBs guarantees less heat,
higher efficiency and rapider response.

BLHeli-S Firmware Ready

The ESC (with great performance and rich functions)
uses the original BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via different methods
(i.e. via throttle signal wire with using other development
board or a FC flashed with the cleanfight/betaflight firmware).

DShot150/300/600 Ready

Besides the regular PWM mode,
Oneshot125/Oneshot42/Multishot modes, the latest
DShot150/300/600 modes are also supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and rapid response.

Hardware Generated PWM &
Damped Light Mode

The ESC firmware uses hardware generated motor pwm for smooth
throttle response and silent operation. Damped light does regenerative
breaking, causing very fast motor retardation, and it inherently also
does active freewheeling.

Specifications

• Cont./Peak Current : 40Ax4/50Ax4
• Input Voltage : 2-5S Lipo
• BEC output : 5V & 1.5A

Wires & Connectors

• Input Wires : Red-14AWG-130mm / Black-14AWG-130mm
• Output Wires : No wires but solder tabs
• Input Connectors : XT60 (w/ Wires Soldered on)
• Output Connectors : No
• Firmware : BLHeli-S A-H-50 16.5
• ESC Programming : Stick Programming, BLHeliSuite
• Stick Programming : Supported
• DEO : Supported
• Throttle Range Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• DShot150/300/600 : Supported
• Timing : Supported
• Motor Rotation : Supported

Size & Weight

• Size : 42.6x36x4mm
• Weight : 10g

Applications

• 130-280mm FPVs
