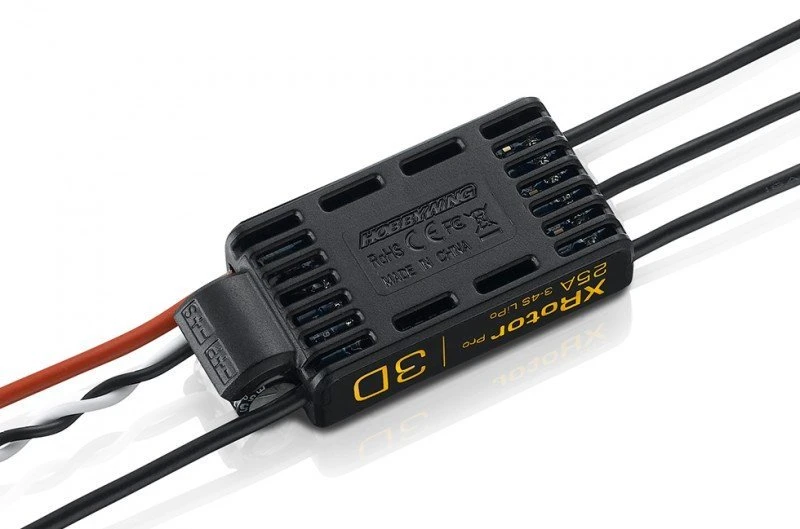

XRotor HOBBYWING PRO 25A 3D – 30902021

3D Flight

China’s first multi-rotor controller with 3D-flight function. It can change the motor rotation
very quickly which allow pilots to accomplish full 3D flight.

DEO Technology

The DEO (Driving Efficiency Optimization) technology implemented in the ESC has multiple
advantages:
● Active braking. When reducing the throttle amount, the motor will decelerate very quickly.
This feature enables pilots to more easily perform all maneuvers like sharp turns, altitude
changes, and sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation .
* Different companies call this technology by different names; “SimonK” calls it “Comp_PWM”,
“BLHeli” calls it “Dampaning-light” and Kontronik calls it “Active Freewheeling”.

Easy to Use

Highly intelligent and adaptive default settings like auto timing for ease of operation.
Faster Heat

Less Signal Interference

The twisted-pair throttle signal cable effectively reduces
interference produced in signal transmission and makes flight
more stable and reliable.

Product Specification

---

Specifications

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-4S LiPo
• BEC Output : No

Wires & Connectors

• Input Wires : Red-18AWG-150mm*1/Black-18AWG-150mm*1
• Output Wires : Black-18AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)

Features

• Throttle Range Calibration : Not Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 46.6×22.2×10.5mm
• Weight : 25g
