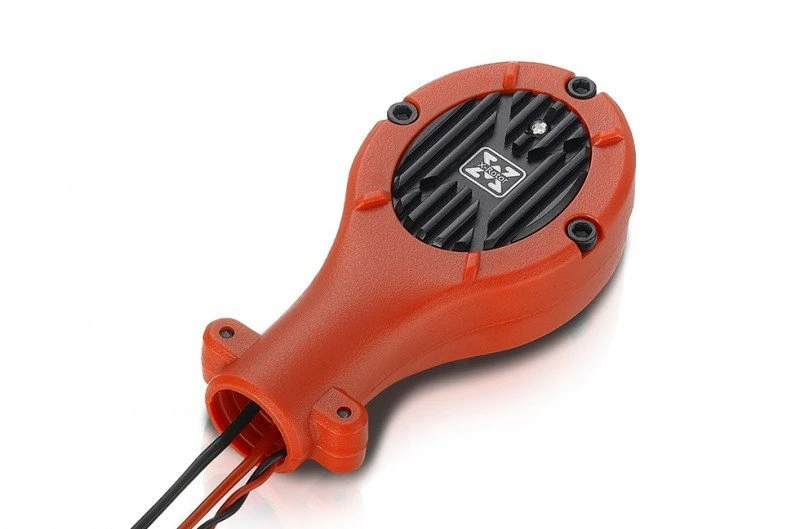

XRotor HOBBYWING PRO 25A Circular (Red Color) – 30902023

Easy Installation

Motor can be closely mounted onto the ESC, which greatly simplifies wiring and
installation of the propulsion system.

Popular Choice

The mount is excellently fitted to the popular 16mm
(outer diameter) carbon fiber arm tube.

Excellent Protection

The integrated structure of the ESC and motor mount has
excellent dustproof and splash proof protection.

DEO Technology

The DEO (Driving Efficiency Optimization) technology implemented
in the ESC has multiple advantages:
● Active braking. When reducing the throttle amount, the motor will
decelerate very quickly. This feature enables pilots to more easily
perform all maneuvers like sharp turns, altitude changes, and
sudden braking.
● Higher driving efficiency, longer flight time.
● Lower ESC temperature and a more reliable operation .
* Different companies call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Easy to Use

Highly intelligent and adaptive default settings like
auto-adjusting timing for ease of operation.

Product Specification

---

Product Number30902022 (Black)/30902023 (Red)
Specifications

• Cont./Peak Current : 25A/40A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
• Output Wires : No
• Input Connectors : No
• Output Connectors : No

Features

• Throttle Range Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 89.3×44.5×20.9mm
• Weight : 50.5g(w/ Motor Mount)
