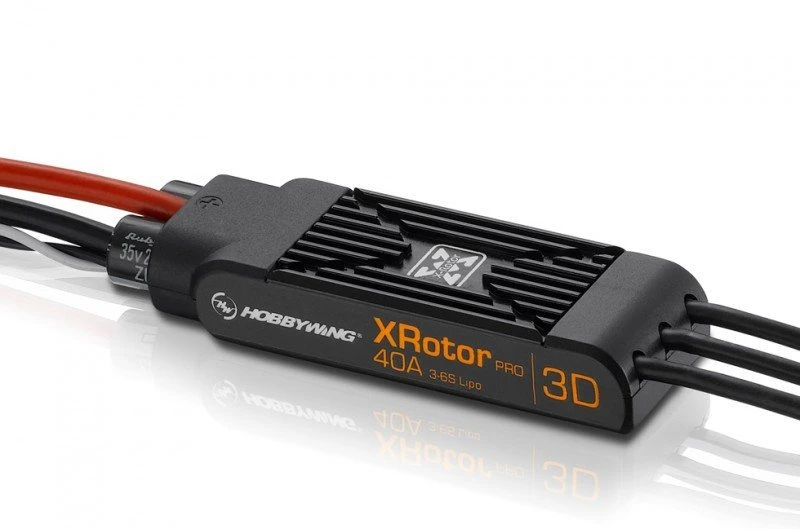

XRotor HOBBYWING PRO 40A 3D – 30902040

3D-Flight Function

A high-performance aluminum folded fin heat sink is combined with the specially
designed heat-conductive slotted structure that brings excellent heat-dissipating effect.
This is an Extremely Simplified Operational Procedure.

Newly Designed Shape

A brand new structural design that is enclosed within an
exquisite solid plastic case that provides the all-round security
and protection for the ESC. The newly designed ESC
can be easily placed into a carbon-fiber tube with the I. D. of 23mm.

Special Core Program for
Rapid Throttle Response

The multi-rotor has made the demand over ESC response become
even harsher than usual. Our newly special core program for rapid
throttle response rate means a more stable hover and swift
movement during flight. With the XRotor 3D and Pro series ESC’s
new rapid response rate, the ESC can handle difficult and new
challenges at ease.

Special Core Program for Rapid Throttle
Response

The multi-rotor has made the demand over ESC response become even harsher than usual.
Our newly special core program for rapid throttle response rate means a more stable hover and
swift movement during flight. With the XRotor 3D and Pro series ESC’s new rapid response rate,
the ESC can handle difficult and new challenges at ease.

Driving Efficiency Optimization(DEO)
Technology for Better Performance

Driving Efficiency Optimization (DEO) Technology is adopted for a higher driving efficiency

Open Cooling Fin

A high-performance aluminum folded fin heat sink is combined
with the specially designed heat-conductive slotted structure that
brings excellent heat-dissipating effect. This is an Extremely
Simplified Operational Procedure.

Product Specification

---

Specifications

• Cont./Peak Current : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input Wires : Red-16AWG-300mm*1/Black-16AWG-300mm*1
• Output Wires : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)

Features

• Throttle Range Calibration : Not Supported
• Stick Programming : Not Supported
• DEO : Supported
• OneShot Mode : Not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 66.0×21.8×11.0mm
• Weight : 50g
